Chauvet GigBAR Bridge ILS

Description

Description

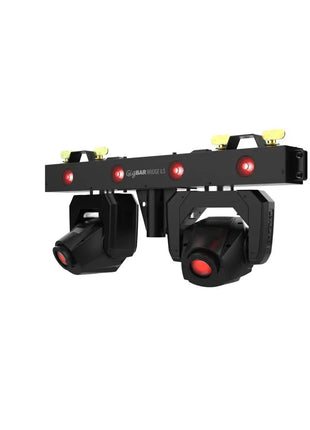

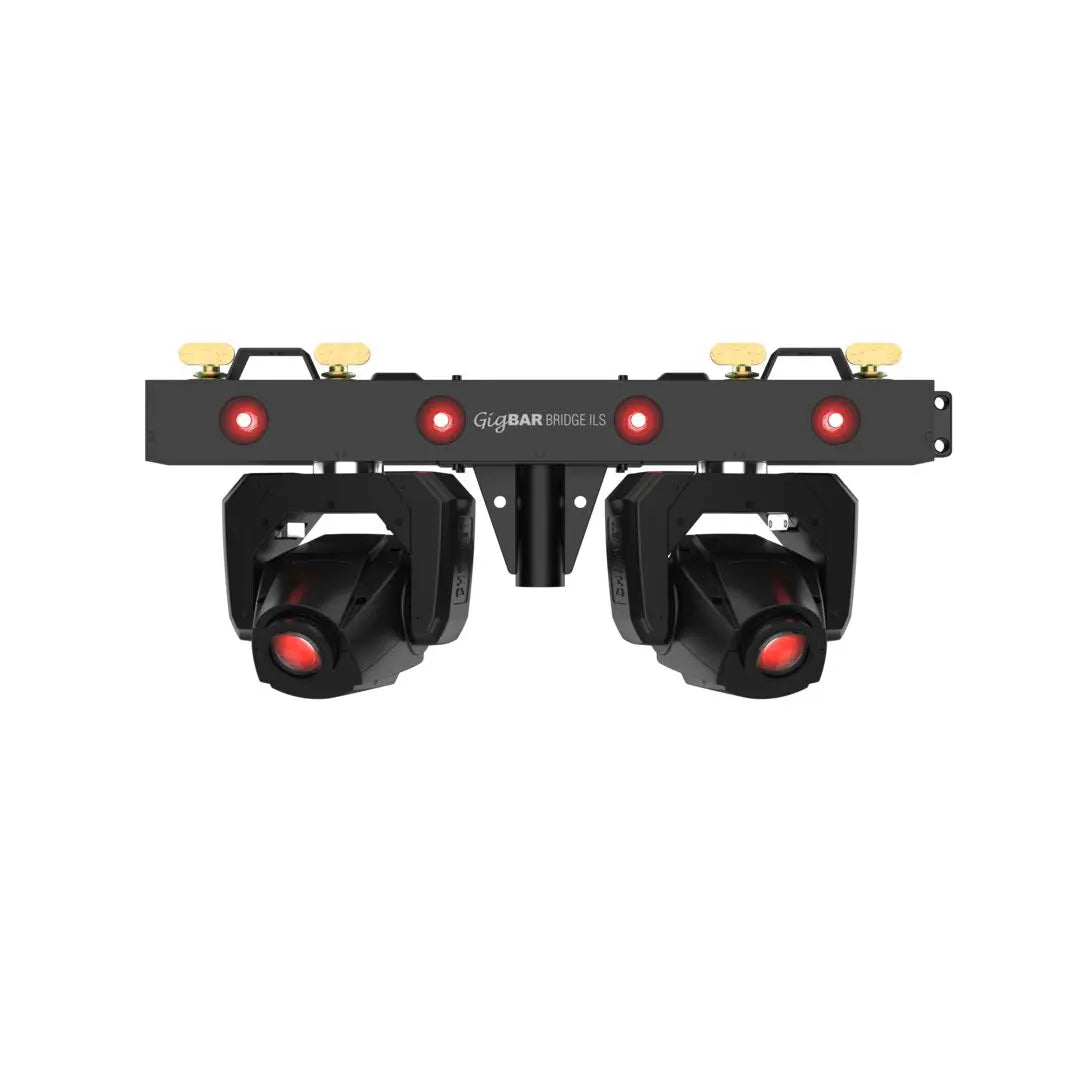

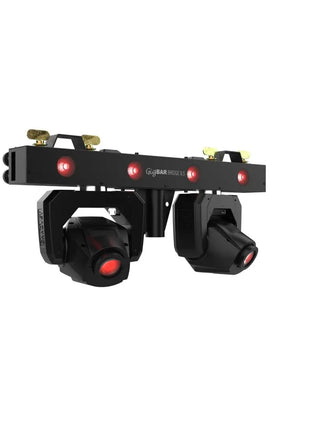

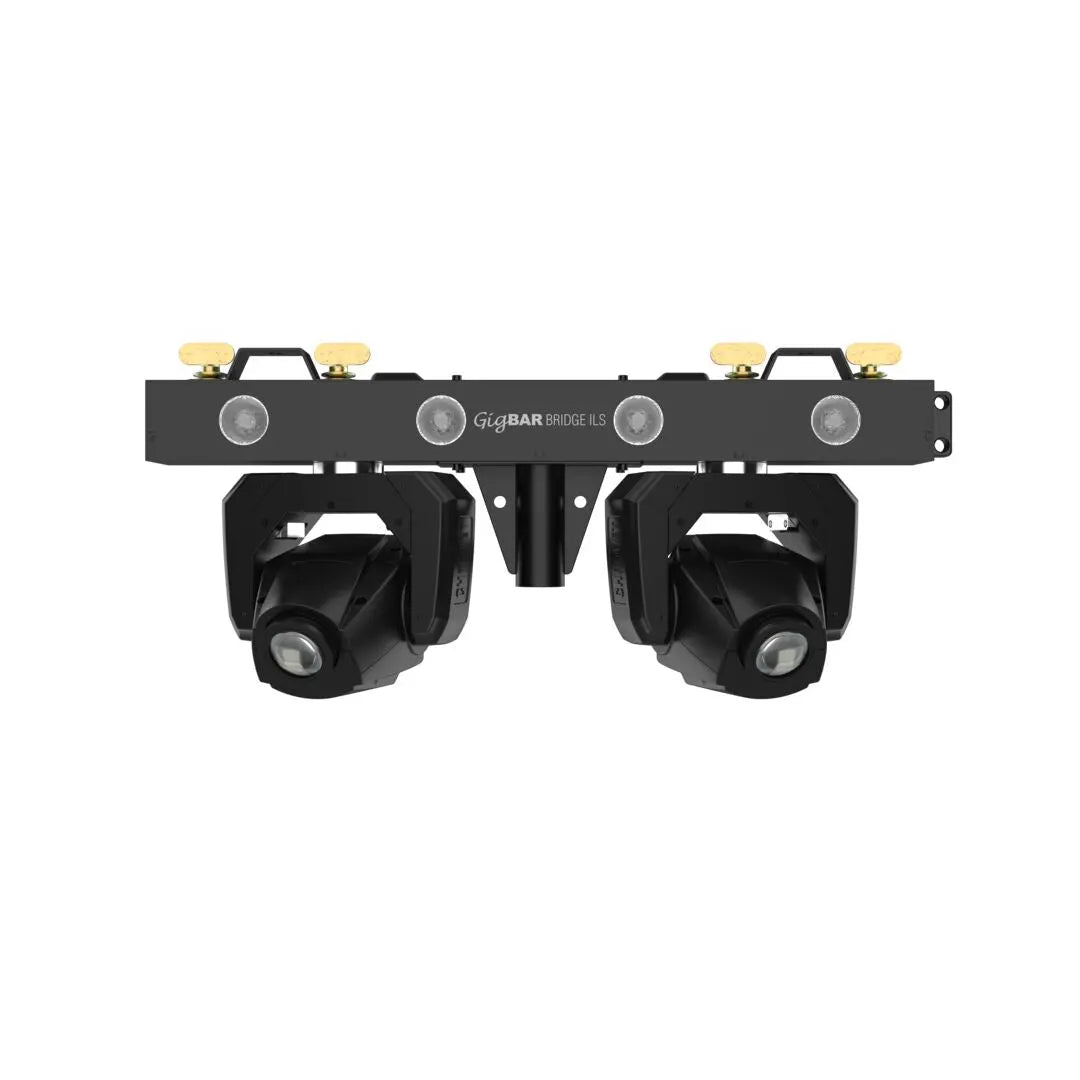

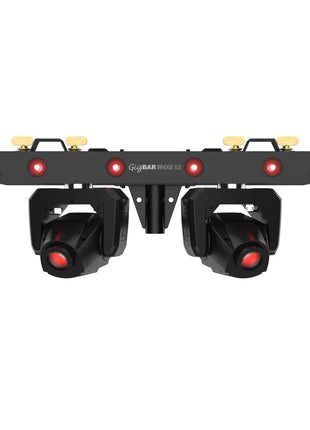

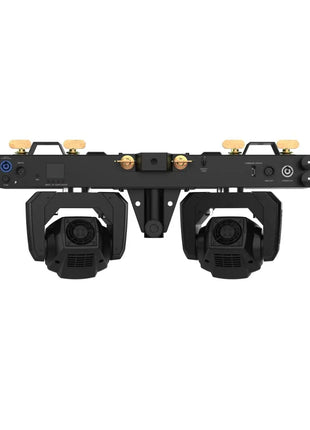

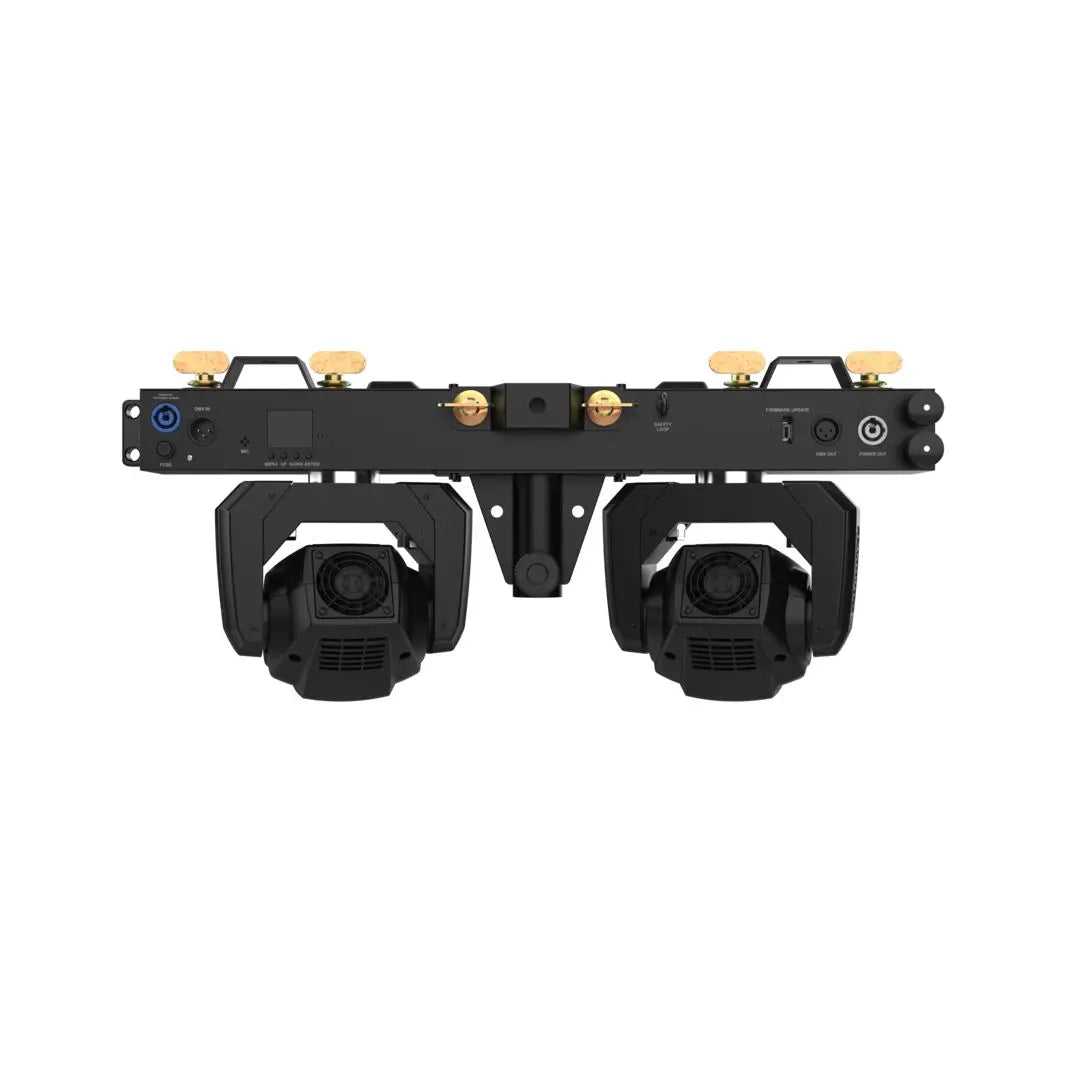

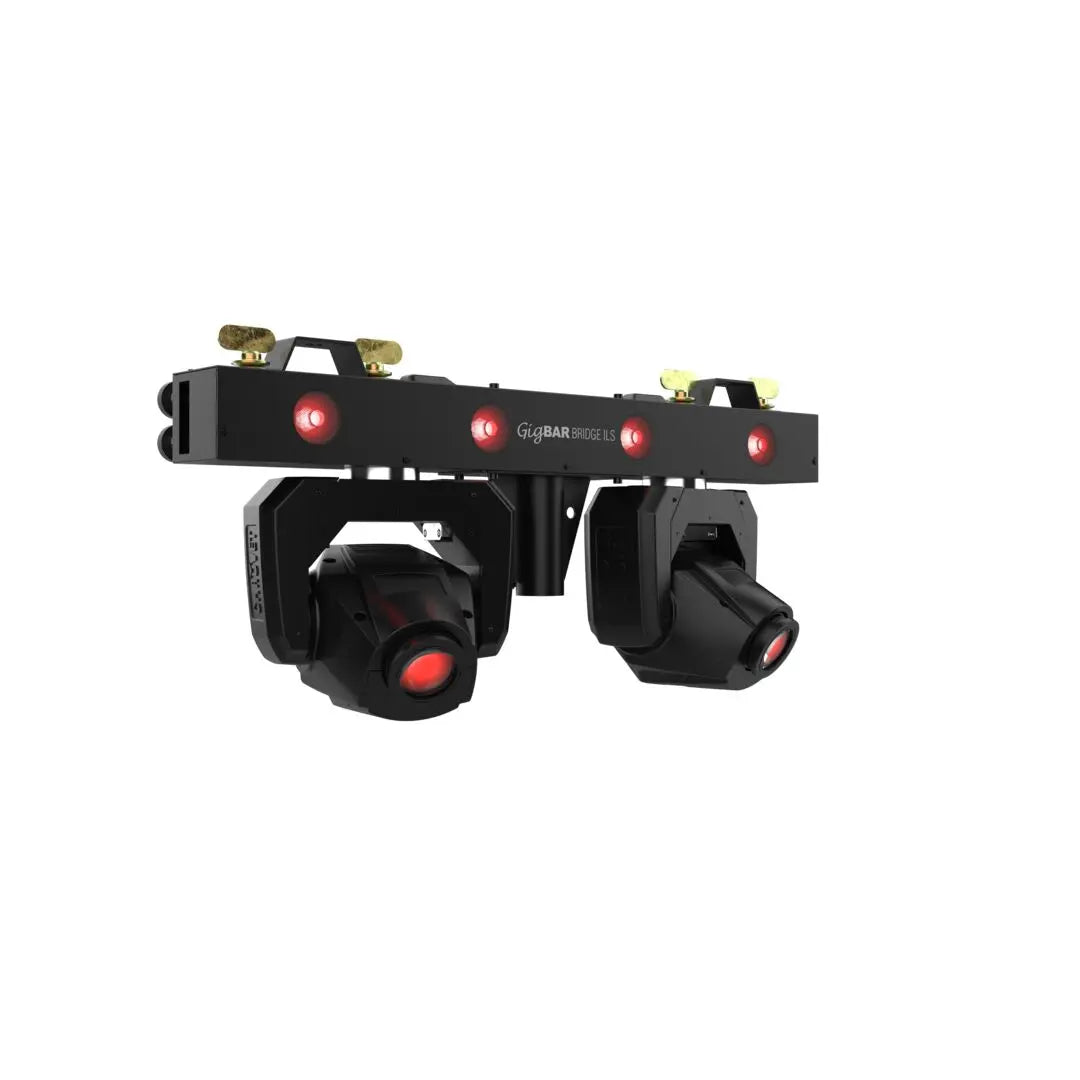

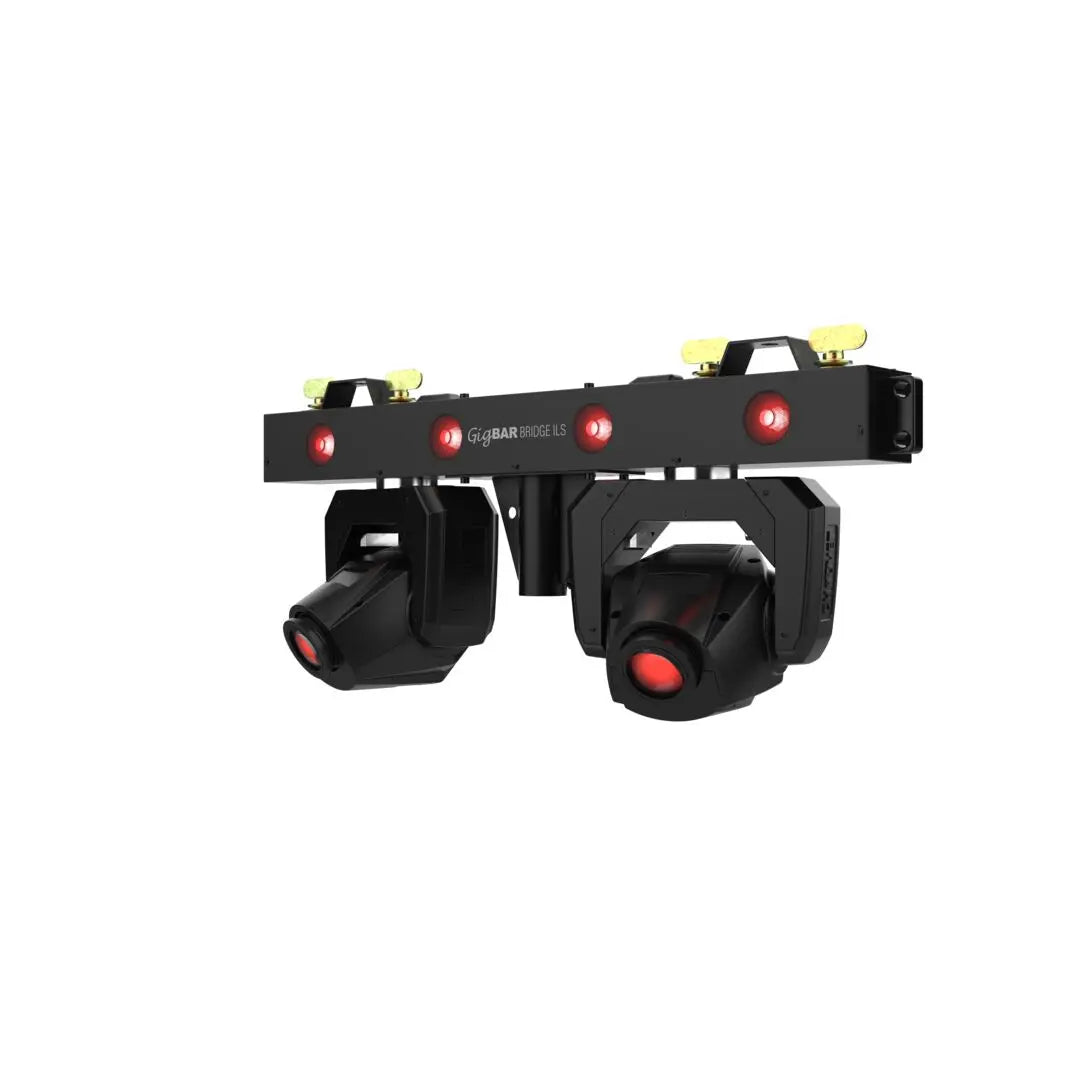

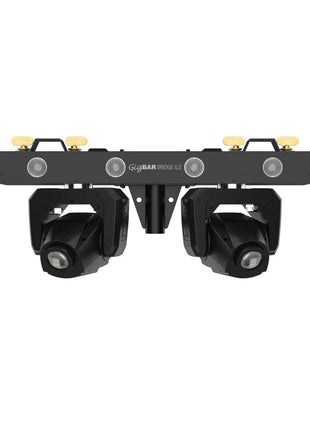

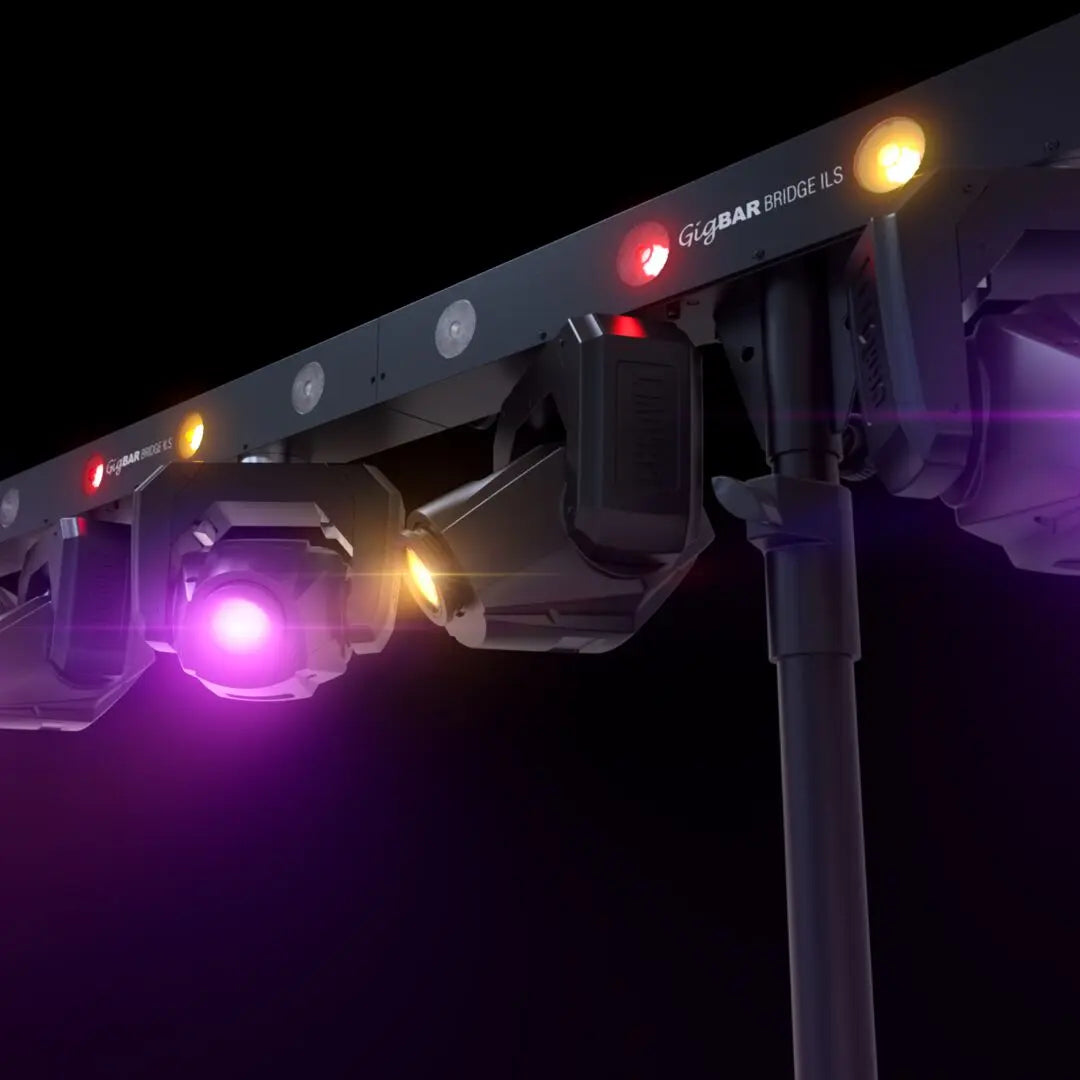

Chauvet GigBAR Bridge ILS is a customisable party lighting setup that suits your needs with the connectable GigBAR Bridge ILS. This 2-in-1 lighting system has a minimal setup time thanks to its moving heads and wash lights that come pre-mounted onto a single bar. ILS compatibility makes creating coordinated light shows with this unit and different fixture types easy as 1, 2, 3. Create dynamic dance floor moments with just one system.

Key Features

  • 2-in-1 lighting system that includes moving heads and washes pre-mounted on a single bar

  • Quickly and securely connect multiple fixtures with the built-in locking system

  • Built-in DFI transceiver communicates DMX or ILS signals wirelessly

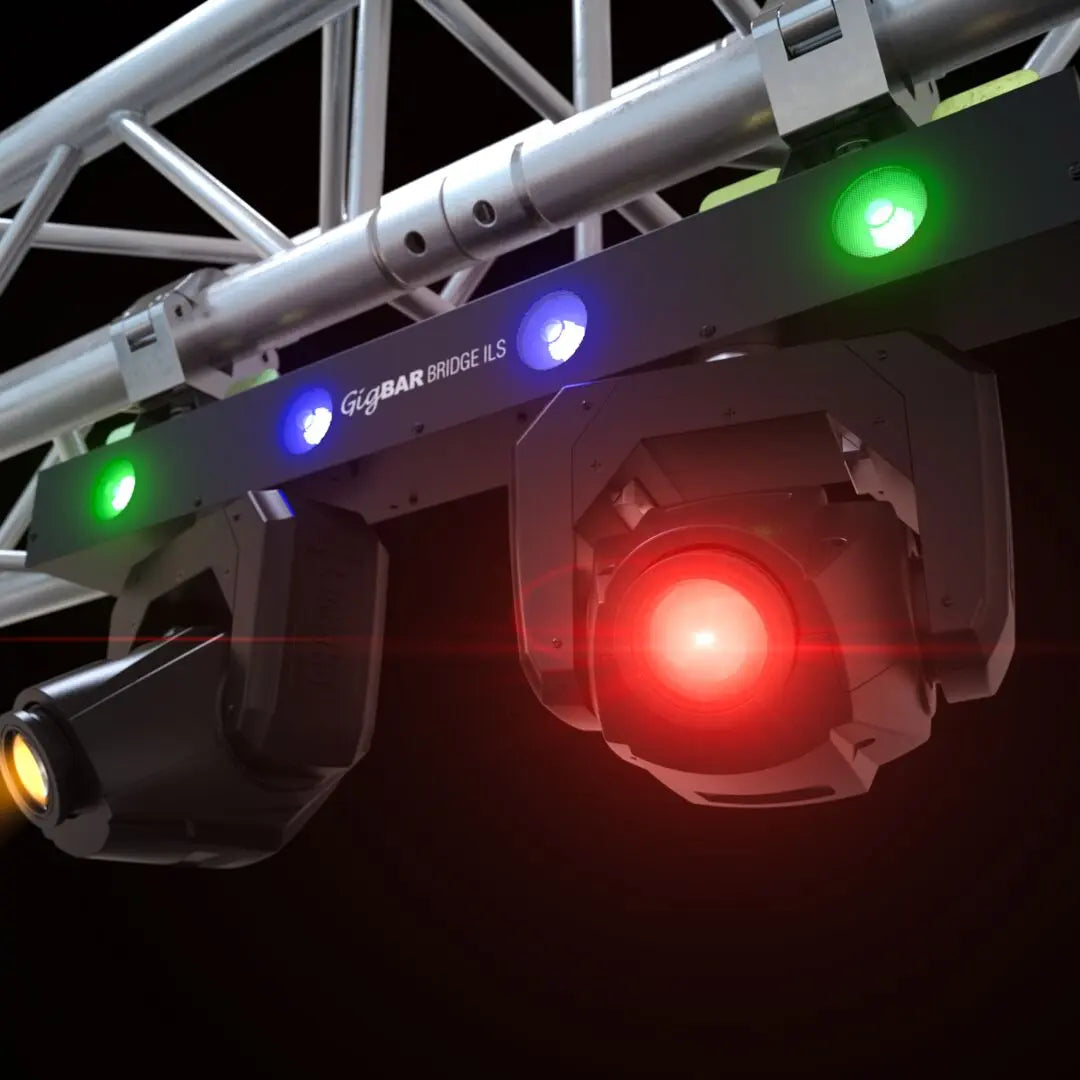

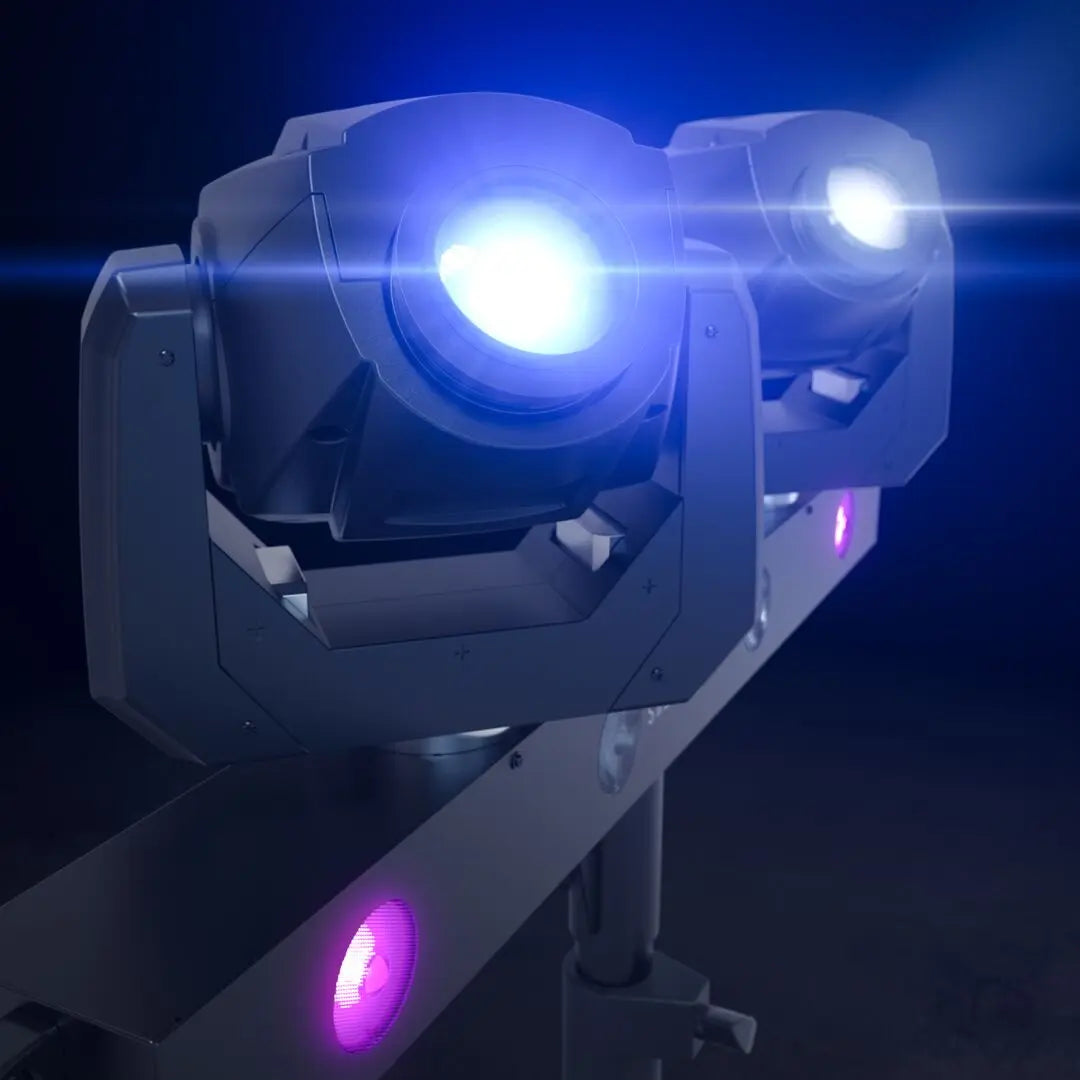

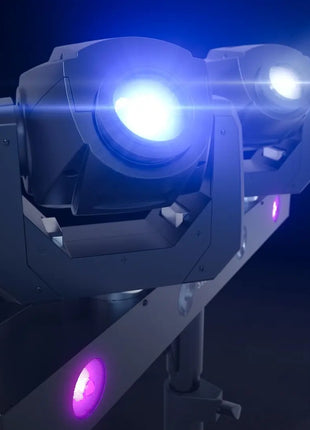

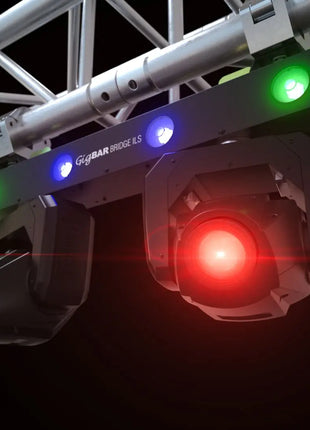

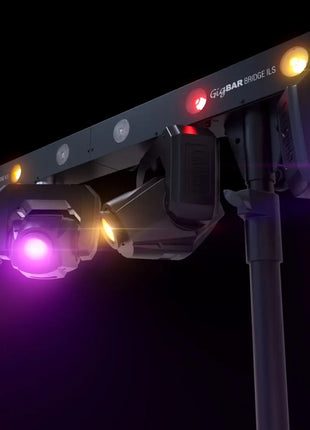

  • Safely mounts onto truss or mobile tripods using the removable bracket

  • Easy navigation and access all functions directly from the full-color LCD display

  • Powerful moving heads with separate color and gobo wheels allow for creative programming

  • Totem Mode keeps the moving heads focused on the dance floor

  • Save time running cables and extension cords by power linking multiple units

  • ILS compatibility for use in the ILS ecosystem

Specifications

  • DMX Channels:3, 16 or 46
  • DMX Connectors:3-pin XLR
  • Strobe Rate:0 to 20Hz
  • Operating Frequency:2.4 GHZ
  • Power Linking:8 units @ 120 V; 13 units @ 230 V
  • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Weight:18.6 lbs (8.4 kg)
  • Size:26 x 2.8 x 12 in (660 x 71 x 305 mm)
  • Approvals:CE, RoHS , FCC
  • Colors (moving head): 9 + open, split colors, continuous scroll at variable speeds
  • Gobos (moving head): 9 + open, continuous scroll at variable speeds
  • Light Source (moving head): 1 LED (cool white) 40W (3A), 50,000 hours life expectancy.
  • Light Source (wash): 4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy.
  • Beam Angle (wash): 22°
  • Field Angle (wash): 38°
  • Power and Current: 191 W, 1.5 A @ 120 VAC, 60Hz
  • Power and Current: 175 W, 1 A @ 230 VAC, 50Hz
  • Fits Tripod Sizes: 1.5 in (37.4 mm)
  • Max Unobstructed Distance (D-Fi): 600 ft (183 m)
  • Optional Controllers: RF, Footswitch, ILS Command
  • Illuminance (moving head): 6,594 Lux @ 2 m (per head)
  • Illuminance (wash): 375 lux @ 2 m (per section)

What's Included

  • GigBAR Bridge ILS
  • Power cord
  • 2 Hanging brackets
  • Carry bag
  • Quick Reference Guide

Chauvet GigBAR Bridge ILS

Product form

Description Chauvet GigBAR Bridge ILS is a customisable party lighting setup that suits your needs with the connectable GigBAR Bridge... Read more

£749.00 Incl. VAT

    iFrame
    ×
    • Don't want to order online? Call us on 01635 780002

    SKU: GIGBARBRIDGEILS
    Barcode: 781462226558

    Trustpilot

    Description

    Description

    Chauvet GigBAR Bridge ILS is a customisable party lighting setup that suits your needs with the connectable GigBAR Bridge ILS. This 2-in-1 lighting system has a minimal setup time thanks to its moving heads and wash lights that come pre-mounted onto a single bar. ILS compatibility makes creating coordinated light shows with this unit and different fixture types easy as 1, 2, 3. Create dynamic dance floor moments with just one system.

    Key Features

    • 2-in-1 lighting system that includes moving heads and washes pre-mounted on a single bar

    • Quickly and securely connect multiple fixtures with the built-in locking system

    • Built-in DFI transceiver communicates DMX or ILS signals wirelessly

    • Safely mounts onto truss or mobile tripods using the removable bracket

    • Easy navigation and access all functions directly from the full-color LCD display

    • Powerful moving heads with separate color and gobo wheels allow for creative programming

    • Totem Mode keeps the moving heads focused on the dance floor

    • Save time running cables and extension cords by power linking multiple units

    • ILS compatibility for use in the ILS ecosystem

    Specifications

    • DMX Channels:3, 16 or 46
    • DMX Connectors:3-pin XLR
    • Strobe Rate:0 to 20Hz
    • Operating Frequency:2.4 GHZ
    • Power Linking:8 units @ 120 V; 13 units @ 230 V
    • Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Weight:18.6 lbs (8.4 kg)
    • Size:26 x 2.8 x 12 in (660 x 71 x 305 mm)
    • Approvals:CE, RoHS , FCC
    • Colors (moving head): 9 + open, split colors, continuous scroll at variable speeds
    • Gobos (moving head): 9 + open, continuous scroll at variable speeds
    • Light Source (moving head): 1 LED (cool white) 40W (3A), 50,000 hours life expectancy.
    • Light Source (wash): 4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy.
    • Beam Angle (wash): 22°
    • Field Angle (wash): 38°
    • Power and Current: 191 W, 1.5 A @ 120 VAC, 60Hz
    • Power and Current: 175 W, 1 A @ 230 VAC, 50Hz
    • Fits Tripod Sizes: 1.5 in (37.4 mm)
    • Max Unobstructed Distance (D-Fi): 600 ft (183 m)
    • Optional Controllers: RF, Footswitch, ILS Command
    • Illuminance (moving head): 6,594 Lux @ 2 m (per head)
    • Illuminance (wash): 375 lux @ 2 m (per section)

    What's Included

    • GigBAR Bridge ILS
    • Power cord
    • 2 Hanging brackets
    • Carry bag
    • Quick Reference Guide

    Instant Light ShowsEasy To Activate. Always In Sync.

    ILS guarantees next level light shows with a faster set up time than ever before. This revolutionary auto-sync technology eliminates the need for DMX programming, without sacrificing the experience of a perfectly coordinated light show across various fixture types.

    • Banner image for:

    • Banner image for:

    Instant Impact.

    Wirelessly, effortlessly. Anytime, anywhere.

    Get Started. It’s easy as 1,2,3…
    • Sync
    • Connect
    • Expand

    ▶️ See the revolution
