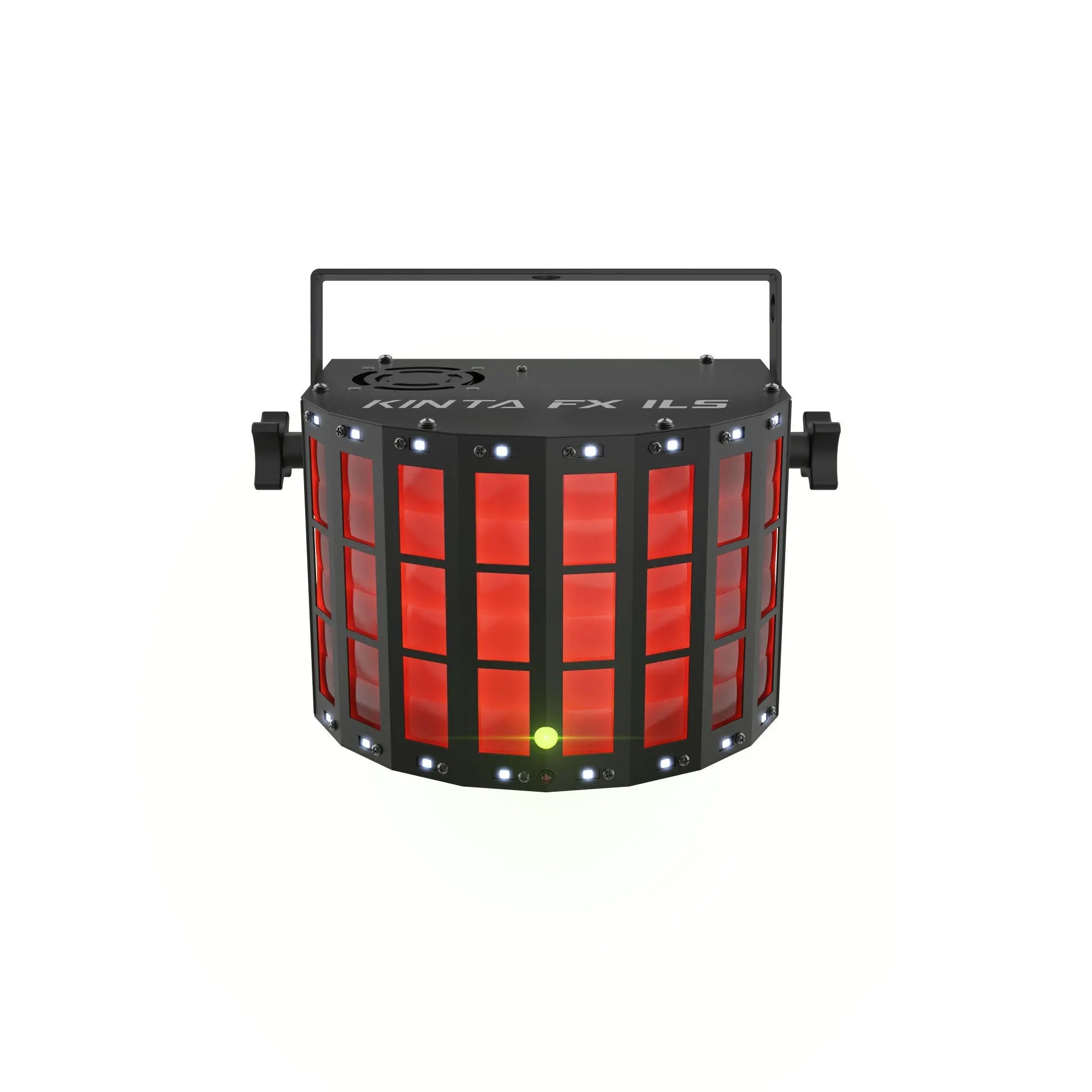

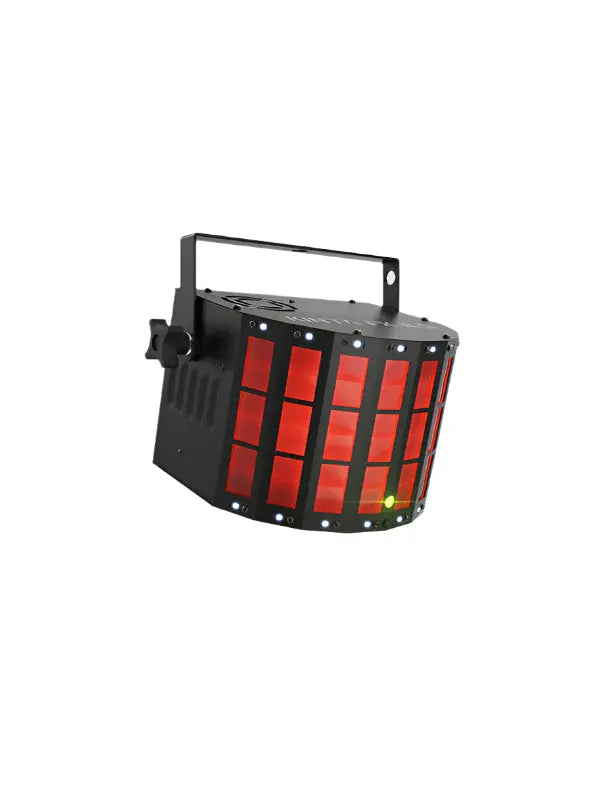

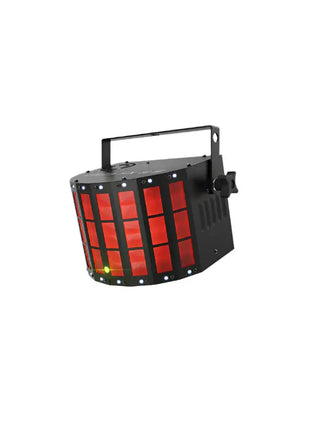

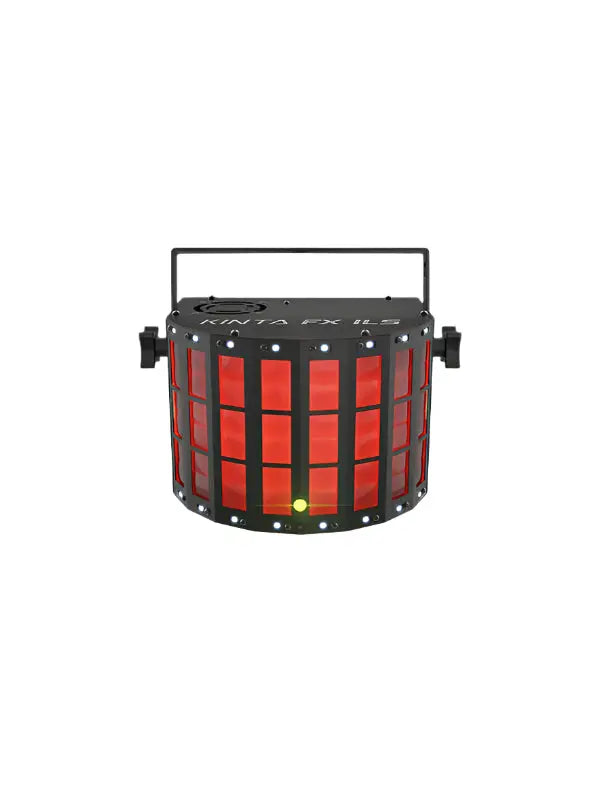

The Kinta FX ILS is a compact, multi-effect light that combines a Kinta, laser, and SMD strobe to deliver a dazzling array of visual effects. This fixture is perfect for events, parties, and performances, offering countless razor-sharp multicolor beams, eye-catching strobe effects and chases, and hundreds of red and green laser beams.

What sets the Kinta FX ILS apart is its compatibility with ILS (Integrated Lighting System), allowing for seamless creation of coordinated light shows across different fixture types. It also features D-Fi USB compatibility for wireless Master/Slave or DMX control. Control is easy via DMX, Master/Slave, IRC-6, or the digital display.

Compact multi-effect with a Kinta, laser, and SMD strobe
D-Fi USB compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)
Projects countless razor-sharp multicolor beams
SMD strobes produce eye-catching strobe effects and chases
Red and green laser casts hundreds of beams

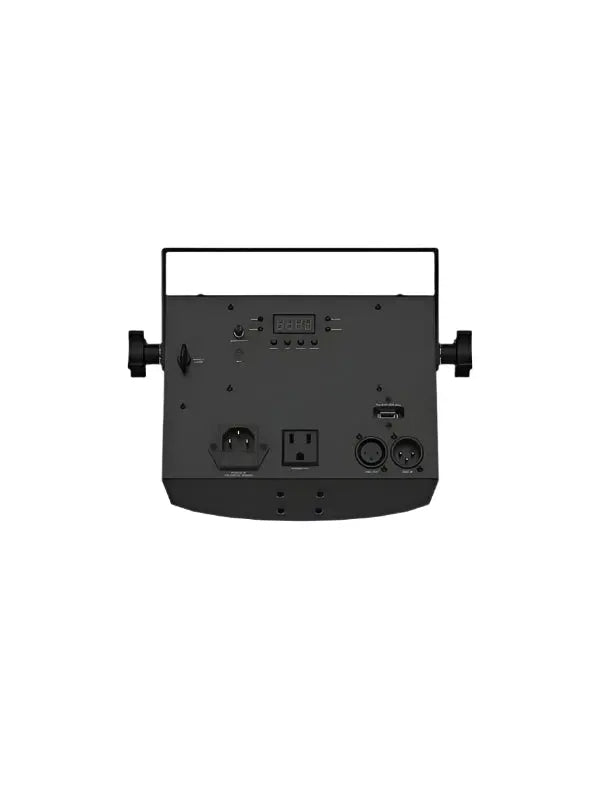

Easily control the unit from DMX, Master/Slave, IRC-6, or the digital display
Save time running cables and extension cords by power linking multiple units

Specifications

Feature	Specification
Color	Multi-color
DMX Channels	2 or 9
DMX Connectors	3-pin XLR
Light Source (Kinta)	4 LEDs (1 Red, 1 Green, 1 Blue, 1 White) 7.5 W (2.4 A), 50,000 hours life expectancy
Light Source (Strobe)	16 SMD LEDs (white) 5 W (1.6 A) 50,000 hours life expectancy
Light Source (Laser)	650 nm/100 mW (Red) laser diode, 520 nm/30 mW (Green) laser diode
Strobe Rate	0 to 20 Hz
Coverage Angle	118°
Power Linking	17 units @ 120 V; 33 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	25 W, 0.5 A @ 120 V, 60 Hz 24 W, 0.2 A @ 230 V, 50 Hz
Weight	3.8 lb (1.7 kg)
Size	7.4 x 10.3 x 7.4 in (187 x 261 x 187 mm)
Approvals	CE, FDA, RoHS, UKCA
Optional Controllers	IRC-6
Laser Class	Classified per EN/IEC 60825-1:2014 Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019
What's Included	Power cord, Warranty card, User Manual

Chauvet Kinta FX ILS

Chauvet DJ
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

The Kinta FX ILS is a compact, multi-effect light that combines a Kinta, laser, and SMD strobe to deliver a... Read more

In-Stock

Quantity Free pickup in our shop(s)

Single

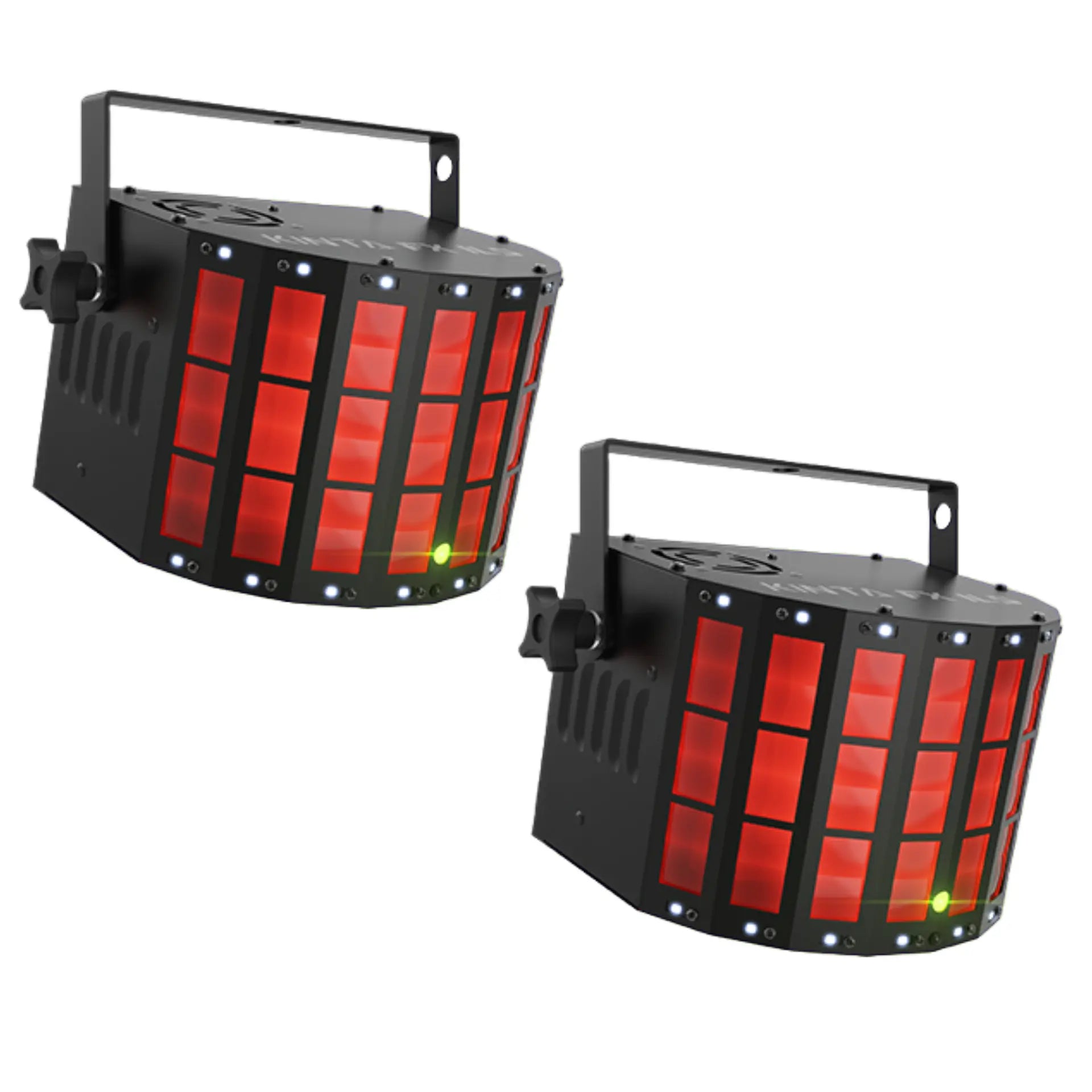

Pair

Free pickup in our shop(s)

£149.00 £135.00 Incl. VAT

iFrame

Add to Wishlist

My Wishlist

Don't want to order online? Call us on 01635 780002

SKU: KintaFXILS
Barcode: 781462215279

Description

The Kinta FX ILS is a compact, multi-effect light that combines a Kinta, laser, and SMD strobe to deliver a dazzling array of visual effects. This fixture is perfect for events, parties, and performances, offering countless razor-sharp multicolor beams, eye-catching strobe effects and chases, and hundreds of red and green laser beams.

What sets the Kinta FX ILS apart is its compatibility with ILS (Integrated Lighting System), allowing for seamless creation of coordinated light shows across different fixture types. It also features D-Fi USB compatibility for wireless Master/Slave or DMX control. Control is easy via DMX, Master/Slave, IRC-6, or the digital display.

Compact multi-effect with a Kinta, laser, and SMD strobe
D-Fi USB compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)
Projects countless razor-sharp multicolor beams
SMD strobes produce eye-catching strobe effects and chases
Red and green laser casts hundreds of beams
Easily control the unit from DMX, Master/Slave, IRC-6, or the digital display
Save time running cables and extension cords by power linking multiple units

Specifications

Feature	Specification
Color	Multi-color
DMX Channels	2 or 9
DMX Connectors	3-pin XLR
Light Source (Kinta)	4 LEDs (1 Red, 1 Green, 1 Blue, 1 White) 7.5 W (2.4 A), 50,000 hours life expectancy
Light Source (Strobe)	16 SMD LEDs (white) 5 W (1.6 A) 50,000 hours life expectancy
Light Source (Laser)	650 nm/100 mW (Red) laser diode, 520 nm/30 mW (Green) laser diode
Strobe Rate	0 to 20 Hz
Coverage Angle	118°
Power Linking	17 units @ 120 V; 33 units @ 230 V
Input Voltage	100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current	25 W, 0.5 A @ 120 V, 60 Hz 24 W, 0.2 A @ 230 V, 50 Hz
Weight	3.8 lb (1.7 kg)
Size	7.4 x 10.3 x 7.4 in (187 x 261 x 187 mm)
Approvals	CE, FDA, RoHS, UKCA
Optional Controllers	IRC-6
Laser Class	Classified per EN/IEC 60825-1:2014 Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019
What's Included	Power cord, Warranty card, User Manual

Instant Light ShowsEasy To Activate. Always In Sync.

ILS guarantees next level light shows with a faster set up time than ever before. This revolutionary auto-sync technology eliminates the need for DMX programming, without sacrificing the experience of a perfectly coordinated light show across various fixture types.
