Features:
Robust Streaming Capabilities:
Built-in Wi-Fi and DRM chip for accessing Amazon Music Unlimited, TIDAL, Beatport, Beatsource, SoundCloud GO+, and Dropbox.
Stream over 100 million tracks directly within Engine DJ OS.
Buffered streaming for stable and reliable performance.
Battery-Powered Portability:
Rechargeable battery for DJing anywhere, anytime.
Compact and lightweight design for easy transport.
Versatile Connectivity:
Bluetooth input and output for wireless audio connections.
Professional wired connections: XLR main out, RCA out, 1/4" booth out, RCA aux input, 2 x balanced mic combo jacks.
Engine DJ OS:
Standalone operating system with continuous feature updates.
Embedded Sampler, onboard song analysis, Touch FX, wireless updates, and more.
Engine Lighting for controlling Philips Hue, Nanoleaf, and DMX lighting.
Performance Features:
Internal FX engine with Main FX, Sweep FX, and Touch FX.
4 dual-layer performance pads per deck with Hot Cue, Loop, and Roll modes.
3-band EQ on each channel.
Touch-capacitive jog wheels.
High-resolution pitch slider.
Computer Mode:
Use as a software controller with a USB connection.
Specifications:
-
Audio
-
Frequency Response: 20 Hz - 20 kHz (+/- 1 dB)
-
Dynamic Range: > 109 dB (A-weighted)
-
Signal-to-Noise Ratio: > 92 dB (A-weighted)
-
Channel Separation: < -88 dB (1 kHz, unity)
-
Headroom:
-
Aux: > 15 dB
- Mic Input: > 20 dB
- Outputs: > 15 dB
T.H.D.
- Aux: < 0.01% (1 kHz, unity)
- Microphone: < 0.02% (1 kHz, unity)
-
Analog Input
-
Aux:
- +15 dBV (maximum)
- 0 dBV (unity)
-
Microphone:
- -40 dBV (unity)
- -54 dBV (minimum)
-
Analog Output
-
Master, Balanced:
- +18 dBu (maximum)
- +4 dBu (unity)
Master, Unbalanced:
- +15 dBu (maximum)
- 0 dBu (unity)
Booth:
- +18 dBu (maximum)
- +4 dBu (unity)
Headphone Output:
-

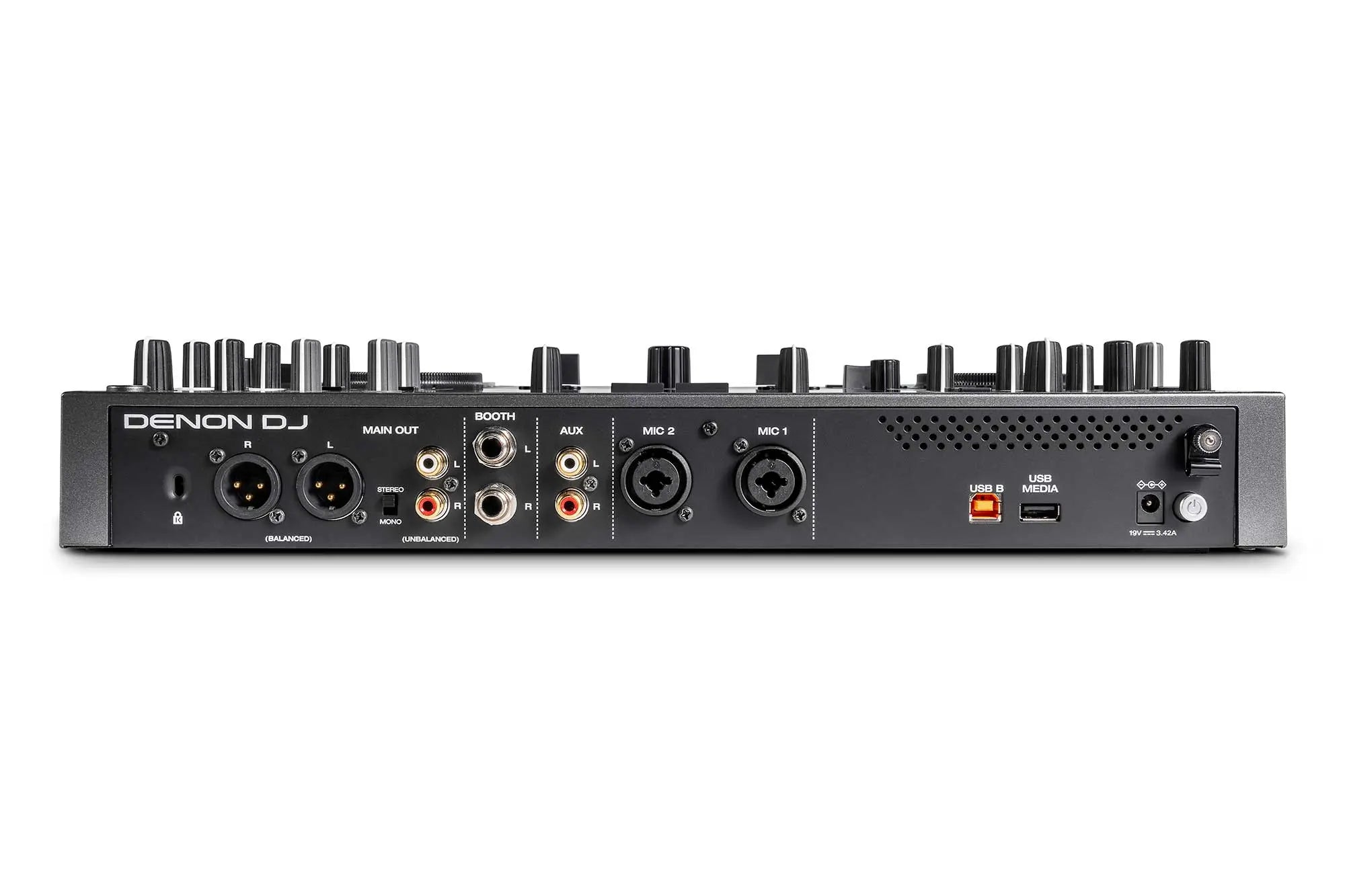

Connections
- (2) XLR outputs (master left/right, balanced)
- (1) RCA output pair (master left/right, unbalanced)
- (2) 1/4" (6.35mm) outputs (booth left/right, balanced)
- (2) 1/4" (6.35mm) outputs (booth left/right, balanced)
- (1) 1/4" (6.35mm) stereo output (headphones)
- (1) 1/8" (3.5mm) stereo output (headphones)
- (1) RCA input pair (line-level, unbalanced)
- (2) XLR + 1/4" (6.35mm) inputs
- (1) USB ports (for USB drives)
- (1) USB port (to computer)
- (1) SD card slot
- (1) Power adapter input
-
Power
-
Connection: DC, Center Positive
-
Voltage: 19V 3.42A
-
Consumption: 30W maximum
- Built-In Rechargeable Battery
-
Dimensions and Weights
-
Product Only:
-
Imperial (in): 16.2” W, 10.8” D, 2.1” H
-
Metric (mm): 411 W, 274 D, 53 H
-
Weight (lbs): 8.11
-
Weight (Kg): 3.68
Product in Box:
-
Imperial (in): 21.06” W, 15.35” D, 6.65” H
-
Metric (mm): 535 W, 390 D, 169 H
-
Weight (lbs): 11.27
-
Weight (Kg): 5.11
Whats in the box
PRIME GO+
Power Cord
USB Cable
Sticker Sheet
Microfiber Dust Cloth
Quickstart Guide
Safety Instructions
SoundSwitch free trial offer card
