Description

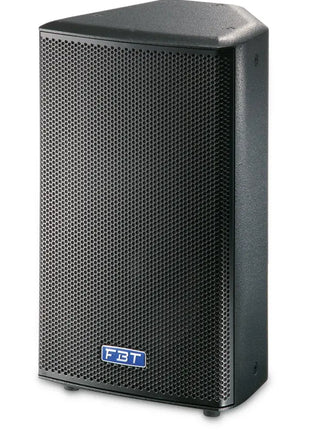

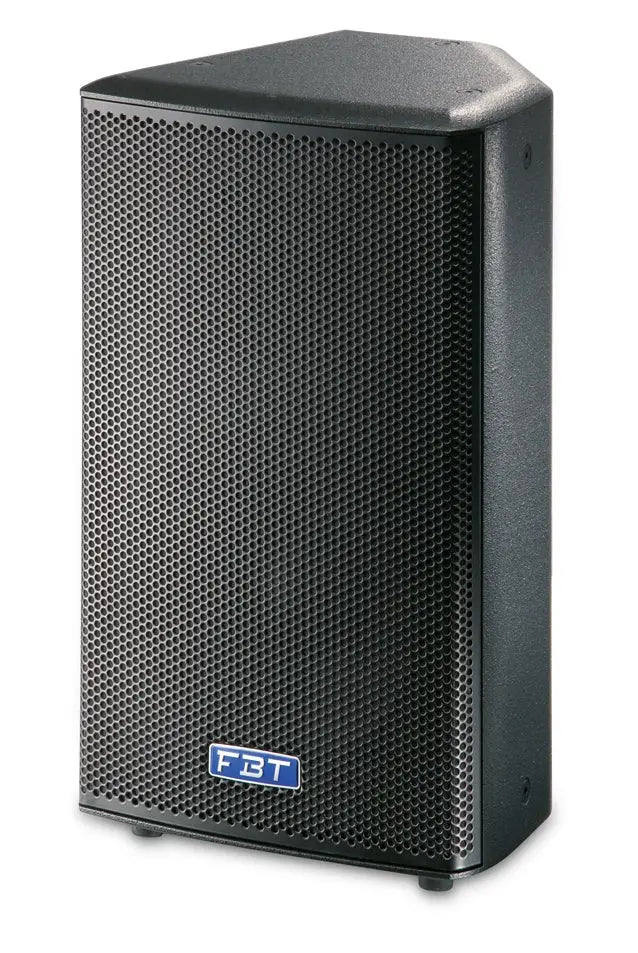

The FBT MITUS 112A is a two-way bi-amplified speaker system shall incorporate 1 x 12 BC neodymium woofer with 3 voice coil and 1 exit BC neodymium driver with 1.7 voice coil coupled to a rotatable 80Ā x 50Ā horn; thanks to the rotatable HF horn it is possible to create horizontal arrays of 2 enclosures for a total coverage of 130Ā. The FBT MITUS 112A shall meet the following performance criteria: Frequency response of 50Hz to 20kHz Maximum SPL of 133dB 600W RMS + 300W RMS class D amplifiers. The FBT MITUS 112Aprovides a DSP with 8 EQ presets. Ā 2-way bi-amplified bass-reflex design 320 mm (12) BC neodymium magnet woofer with 75 mm (3) voice coil 25 mm (1) exit BC neodymium magnet HF driver with 44 mm (1.7) voice coil with 80ĀH x 50ĀV rotatable horn Class D amplifiers 600WRMS to the LF and 300WRMS to the HF switch mode power supply Frequency response from 50Hz to 20KHz DSP with 8 eq presets Control panel with XLR input and link volume presets HPfilter ground-lift 15 mm (58) birch plywood enclosure scratch resistant black paint finish Eight M10 fly points 35 mm (1.38) speaker stand socket and two FBT design aluminium handles Ideal for live sound reinforcement applications as both front of house main PA and as a stage monitor. Also suited for permanent installations Very lightweight only 20Kg The FBT MITUS 112A features 0.59" baltic birch plywood construction covered in a scratch scuff resistant black finish; the front shall be protected by a heavy duty metal grille with anti-resonance spacers and exclusive synthetic cloth to protect the drivers.The control panel provides XLR input link level preset HPfilter and GND lift. The 12 M10 anchoring points built into the cabinet allow the FBT MITUS 112A speaker to be surface mounted on ceilings and a standard 1.38" speaker stand socket allows the FBT MITUS 112Ato be mounted on speaker stands.
