Description

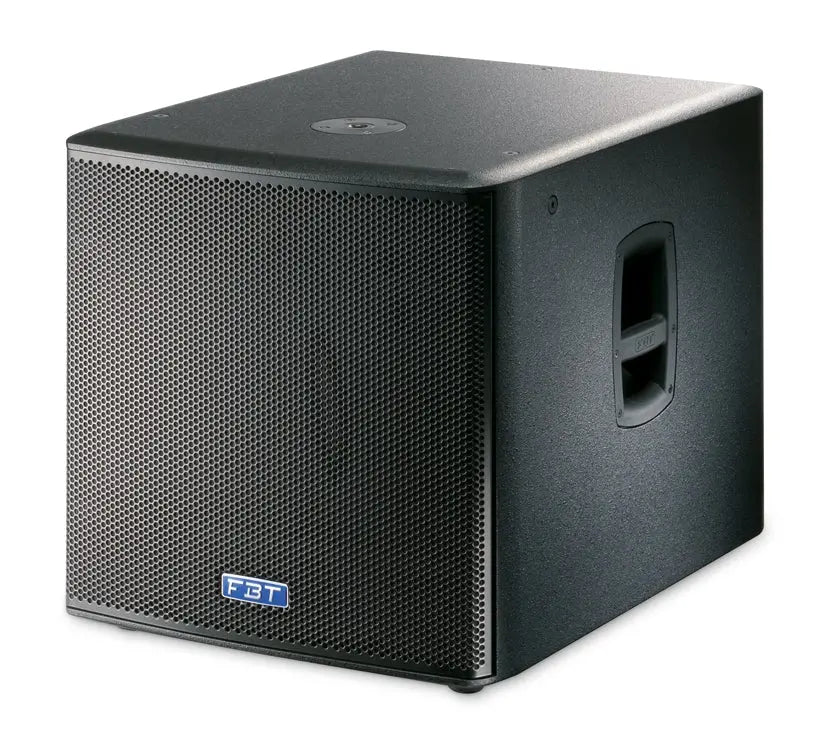

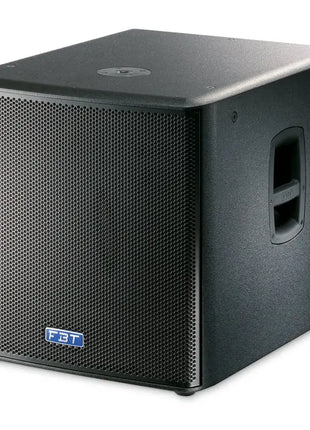

The FBT MITUS 118SA 18" compact vented band-pass subwoofer is the perfect low-frequency extension for the MITUS range and the ideal companion for the FBT MITUS 206LA line array for ground stack applications with optional metal base. The FBT MITUS118SA shall meet the following performance criteria: Frequency response of 36Hz to 100Hz Maximum SPL of 139dB peakClass D amplifier 1200W RMS. The FBT MITUS 118SA provides a DSP with 8 presets-cardioid and infra configurations. The FBT MITUS 118SA feature 0.70" Baltic birch plywood construction covered in a scratch resistant black paint with eight M10 fly points M20 top-mounted stand adapter and two FBT design aluminium handles. The control panel provides XLR in link volume control preset delay phase 0Ā-180Ā GND lift. Compact vented band pass subwoofer design enclosure 460 mm (18) custom BC neodymium magnet high excursion woofer with 75 mm (3) voice coil Frequency response from 36Hz to 100Hz Class D amplifier delivering 1200WRMS Switch mode power supply DSP with 8 presets cardioids and infra configurations delay Control panel with XLR input and link volume presets delay phase 0Ā-180Ā groundlift 18 mm (34) birch plywood enclosure scratch resistant black paint Eight M10 fly points M20 top mount stand socket and two FBT design aluminum handles Optional 4 swivel-mount casters 80 mm (3.15) on request Perfect low-frequency extension for the MITUS range and an ideal companion for the MITUS 206LA line array for ground stack applications with optional MTB206 metal base
