Description

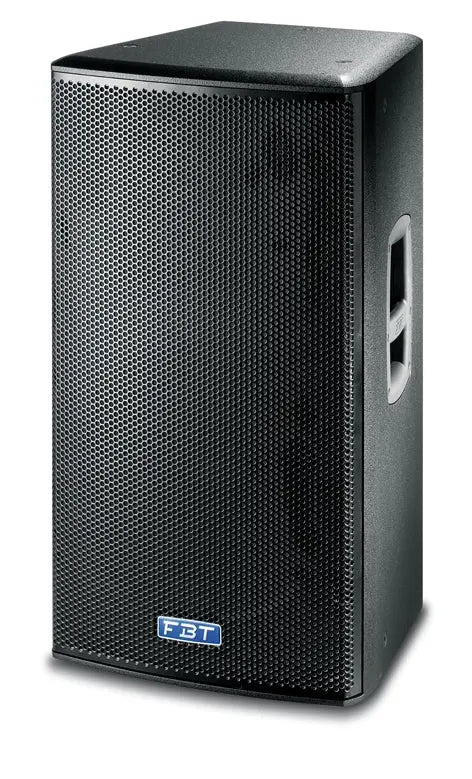

The FBT MITUS 152 two-way passive reinforcement speaker system shall incorporate 1 x 15 BC neodymium woofer with 3 voice coil and 2 exit BC neodymium driver with 2.5 voice coil coupled to a rotatable 60Ā x 40Ā horn; thanks to the rotatable HF horn it is possible to create horizontal arrays of 2 enclosures for a total coverage of 100Ā. Ā The FBT MITUS 152 shall meet the following performance criteria: Frequency response of 47Hz to 20kHz Frequency sensitivity of 100dB Maximum SPL of 132dB Recommended power amplifier 800W RMS 8 Ohm. The FBT MITUS 152 passive speaker feature 0.59" baltic birch plywood construction covered in a scratch scuff resistant black finish; the front shall be protected by a heavy duty metal grille with antiresonance spacers and exclusive synthetic cloth to protect the drivers. The hi-grade passive internal crossover featuring Āsoft-tripĀ circuitry protection of the LF woofer and HF driver. Input connectors shall be parallel wired Neutrik NL4 speakon. The 12 M10 anchoring points built into the cabinet allow the FBT MITUS 152 speaker to be surface mounted on ceilings and a standard 1.38" speaker stand socket allows the FBT MITUS 152 to be mounted on speaker stands. Hi-grade passive internal crossover featuring soft-trip circuitry protection of LF and HF transducers Speakon NL - 4MDV connectors IN LINK OUT
