Description

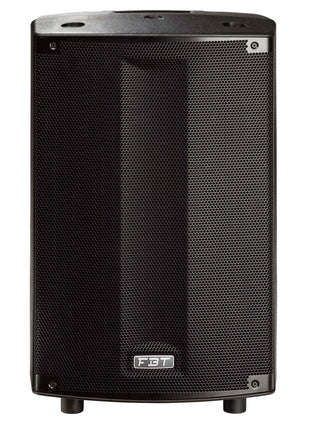

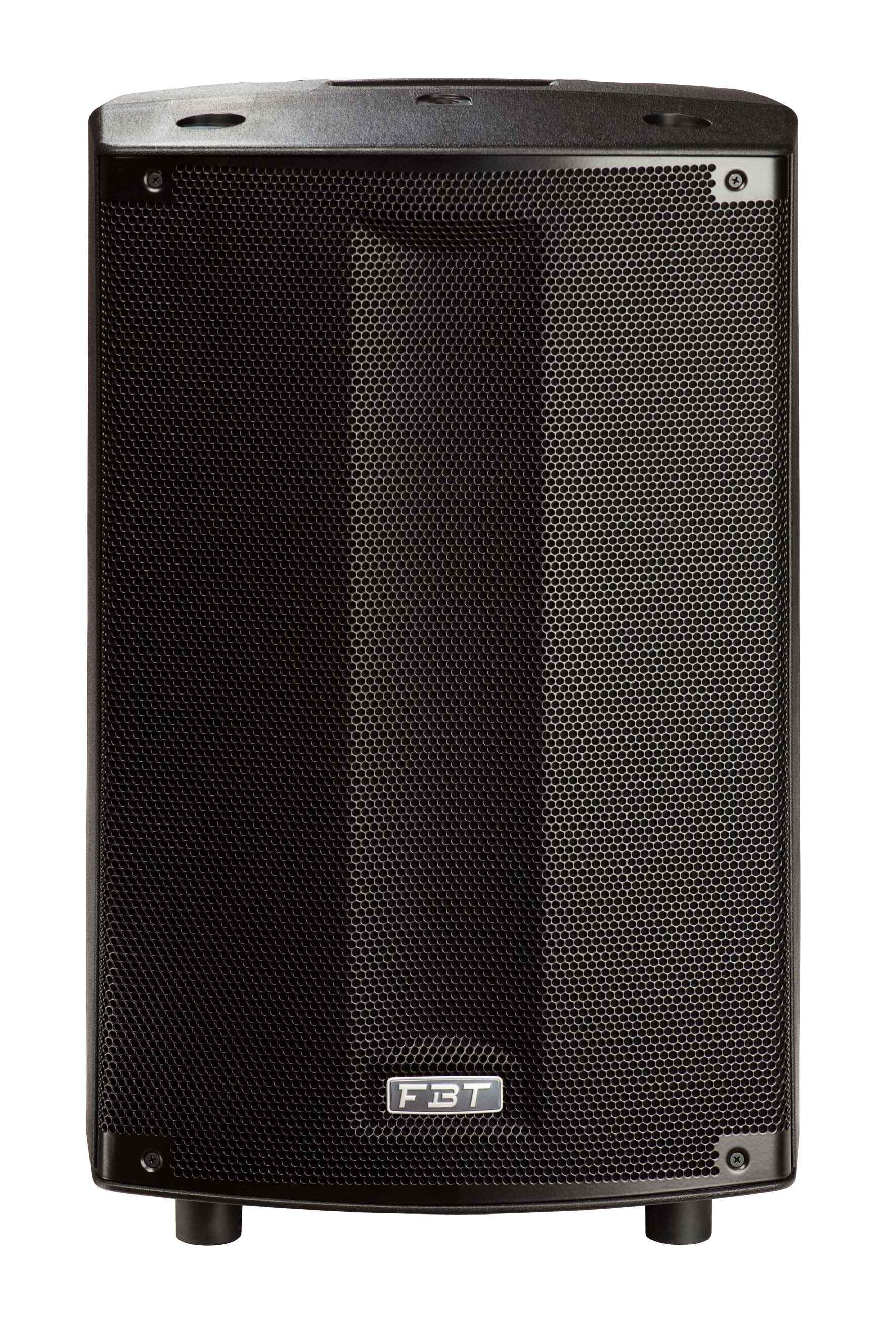

With a specially developed polypropylene cabinet and stylish full grille aesthetic the new PROMAXX by FBT represents the next step in the evolution of a portable sound classic. Ā Equipped with custom FBT speakers complete with BCs renowned compression driver technologyPROMAXX combines true made-in-Italy quality and style. At its heart is a purpose-built FBT amplifier module with a switch-mode power supply. For the low frequency section 700W RMS is driven via a highly efficient Class-D topology boasting extremely low THD. For HF meanwhile 200W RMS is delivered by a Class-H AB design chosen to ensure the highest definition of audio performance at high frequencies. Also onboard is a powerful digital signal processing (DSP) platform made available to users of all levels thanks to an intuitive graphical user interface. Located on the rear of the enclosure the menu-driven system is navigated via a single rotary control with push-to-select functionality. Users can choose between 6 equalizer presets each carefully designed by FBT engineers to ensure that every application is catered for (see below). Additionally 2 preset slots are available for users to form their own designs using 5 parametric equalizers per slot. Also available is a high-pass filter a micline selector low mid and high tone settings and an optional delay of between 0 and 3.5 metres. Finally users can exclusively choose between two limiter modes MAX-SPL or MAX-QUALITY to best suit their performance The PROMAXX feature-set is matched by the enclosures versatility with options for pole-mounting wall-hanging suspension or even deployment in an array. The result is the most accessible PROMAXX yet. 2-way bi-amplified bass reflex design cabinet Biamped: 700W RMS LF 200W RMS HF power amplifiers in Class D for LF and in Class HAB for HF with switch mode power supplies Digital signal processor with graphic display Control Panel features balanced XLRJack input XLR LINK OUT 2 x Volume RCA Stereo input DSP display with rotative encoder and push 2 x M10 suspension points 35 mm (138) top-hat speaker stand socket wall bracket mount flange plate 90ĀH x 60ĀV constant directivity horn Front of House or Stage Floor Monitor: with 12Ā 40Ā and 55Ā monitoring angles 3550mm (15") LF woofer with 64mm (2.5") voice coil custom made for FBT 35mm (1.4") throat exit BC HF magnet compression driver with 34mm (1.4) voice coil Frequency response from 45Hz to 20KHz Sturdy gas-injected polypropylene molded enclosures engineered to contain undesired resonance Extremely light only 17.4kg Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A but features our Ā14 LF Woofer for lower frequency SPLĀ
