Description

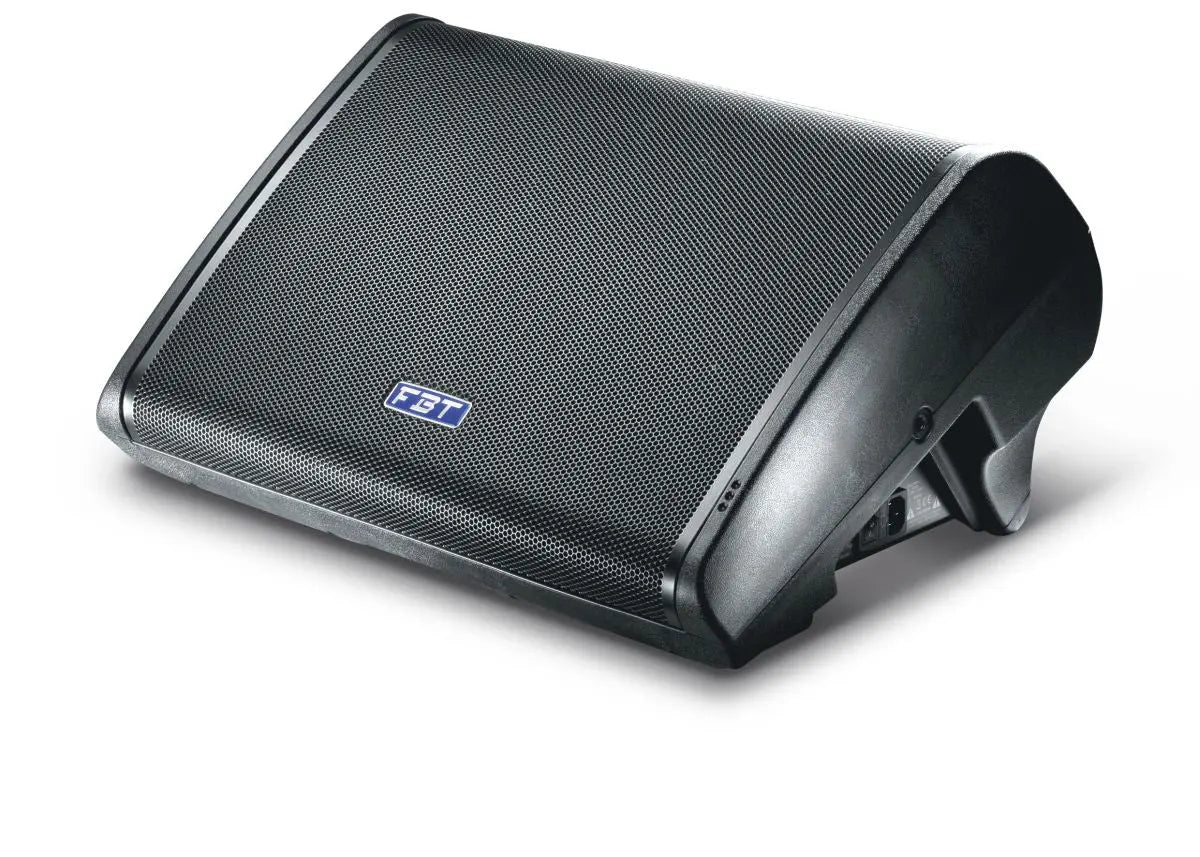

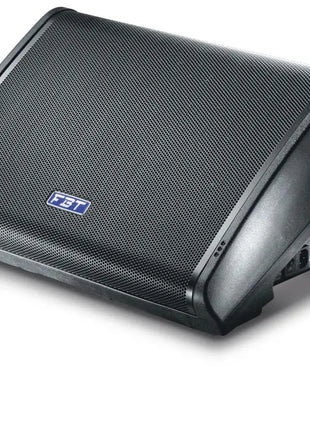

ORIGINAL: is the typical MaxX sound adapted to STAGE applicationĀ HI-CUT DRUM FILL: provides less mid-high for a comfortable listening in near-field at high level LO-CUT DOUBLE: provides less low frequency for better intelligibility and for optimal coupling in stereo configuration FOH: Front Of House use in suspended or pole-mount installations FBTs new StageMaxX 12Ma has been inspired by the need to have a product specifically designed and engineered for use as stage monitor overcoming all these compromises for a full user satisfaction. Low profile and aesthetic elegance Compact size Frequency response studied for stage monitor applications High headroom before feedback High sound quality Great power and dynamics Symmetric dispersion Aligned LF and HF acoustic centers Easy handling on stage Lightweight Heavy-duty polypropylene cabinet. 2-way bi-amplified bass reflex design cabinet Coaxial custom FBT 12 BC speakers with 64mm (2.5) voice coil BC 25mm (1) exit throat compression driver and 44mm (1.7) voice coil Bi-amp: high dynamic Class D amplifiers 400W+100W RMS to provide a pleasant sound even at loud volume High efficiency switch mode power supply Digital Signal Processor with 4 factory equalization presets Control Panel: XLRJack input and XLR link out Volume 4 Presets HP Filter 3 frontal status LED indicators 90Ā directivity horn Proprietary filtered algorithms dynamic equalization at low frequencies advanced energy control allows an high SPL while granting reliable and distortion-free audio reproduction with high headroom Sturdy gas-injected polypropylene molded enclosures to avoid undesired resonance Weather resistant coating under the grill to protect the driver and the speaker High SPL in a compact size monitor 35Ā or 55Ā tilted front panel for an optimal listening distance for single or multiple users Three ergonomic integrated carrying handles two M10 rigging points Teflon replaceable feet allow an easy use on stage Available in white colour
