Description

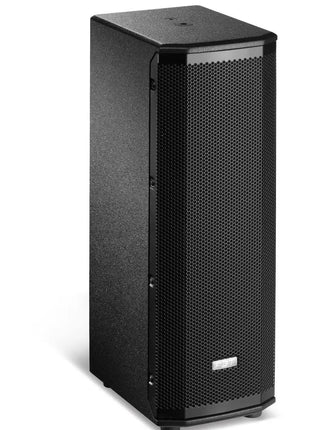

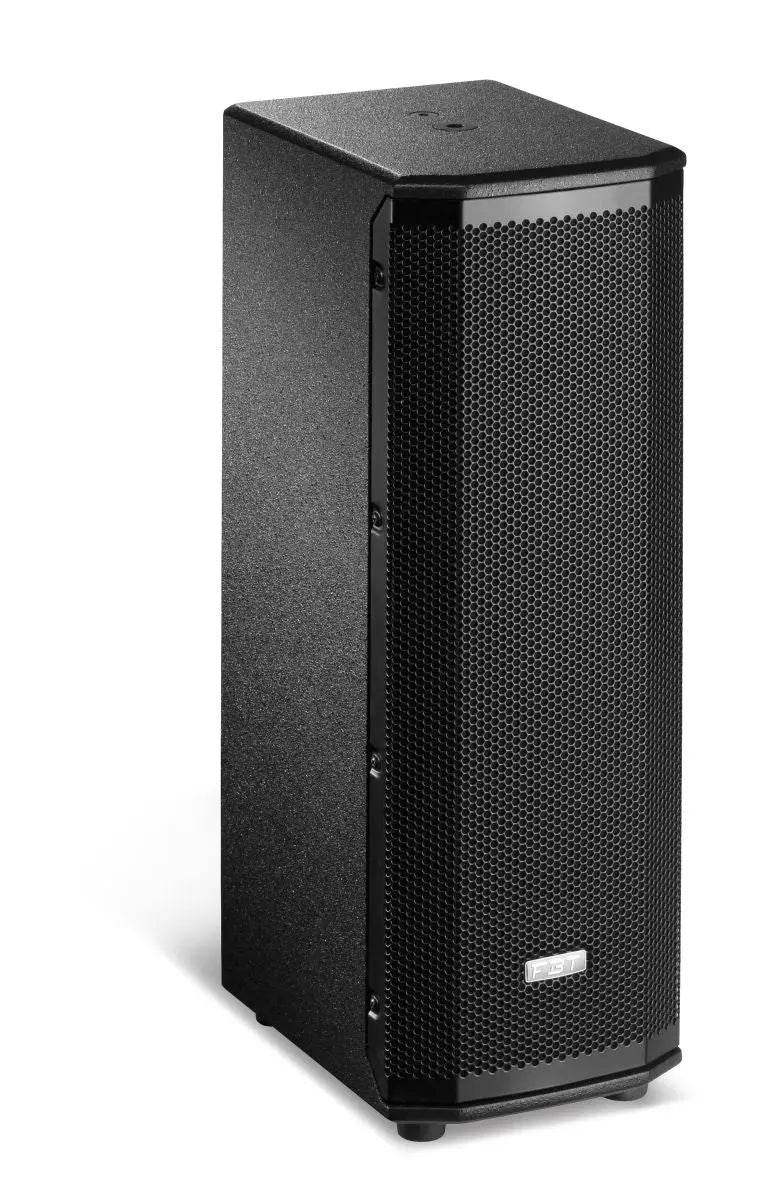

The VENTIS 206 and 206A can be deployed as a front fill an under-balcony fill or as a main providing pristine speech intelligibility or simply as the full-range companion of a subwoofer. Constructed in 12mm birch plywood the 206 and 206a has an integrated rear handle an optional mounting bracket and most importantly an astonishing size to SPL ratio.Ā The enclosures are as suitable for fixed installation as they are for use on the stage. M10 mounting points are included as standard while an optional U-bracket can be used for wall-mounting. For use on the road the ĀVENTIS models include aluminum handles with rubber inserts a 35mm polemount socket and a 45Ā sloped profile for unobtrusive placement on-stage as a monitor. 2-way bi-amplified bass reflex design Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class HAB for HF Digital Signal Processor with graphic display 15 mm (0.59) birch plywood scratch resistant enclosure and internal bracing High efficiency switch mode power supply Control Panel features balanced XLRJack input XLR LINK OUT 2 x Volume RCA Stereo input DSP display with rotative encoder and push 2x165mm (6.5) LF woofer with 38mm (1.5) voice coil custom made for FBT 25mm (1) exit throat BC HF compression driver with 36mm (1.4) voice coil Frequency response from 70Hz to 20 kHz 70ĀH x 50ĀV Constant Directivity Rotatable Horn 6 x M10 suspension points wall bracket mount thread 35mm (1 38) top-hat One integrated handle 12mm (0.47) birch plywood scratch resistant enclosure and internal bracing
