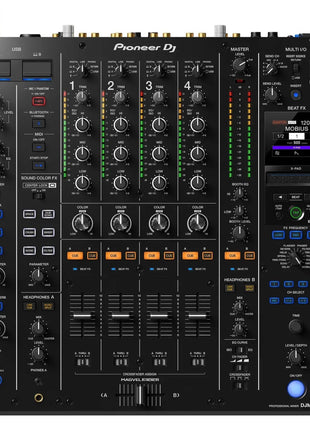

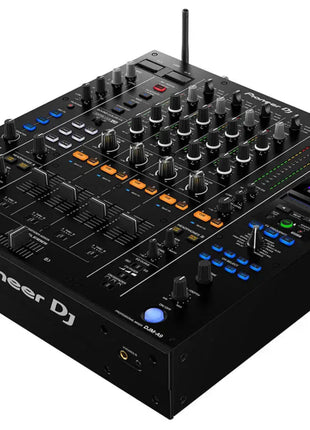

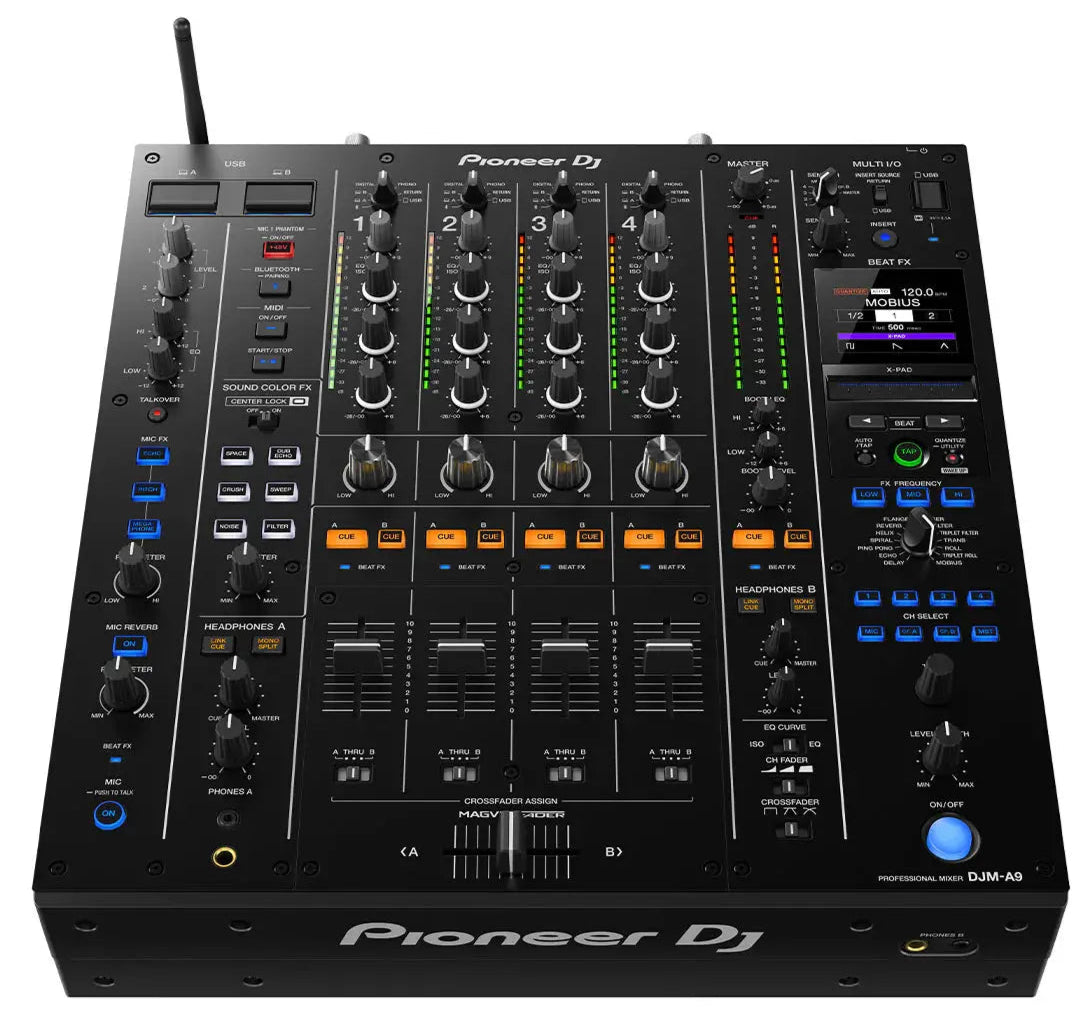

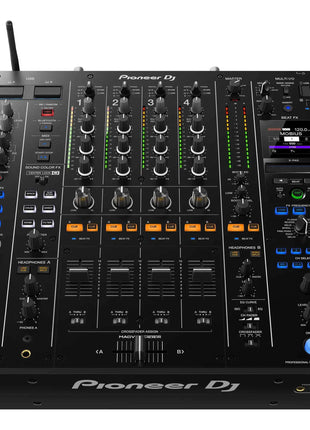

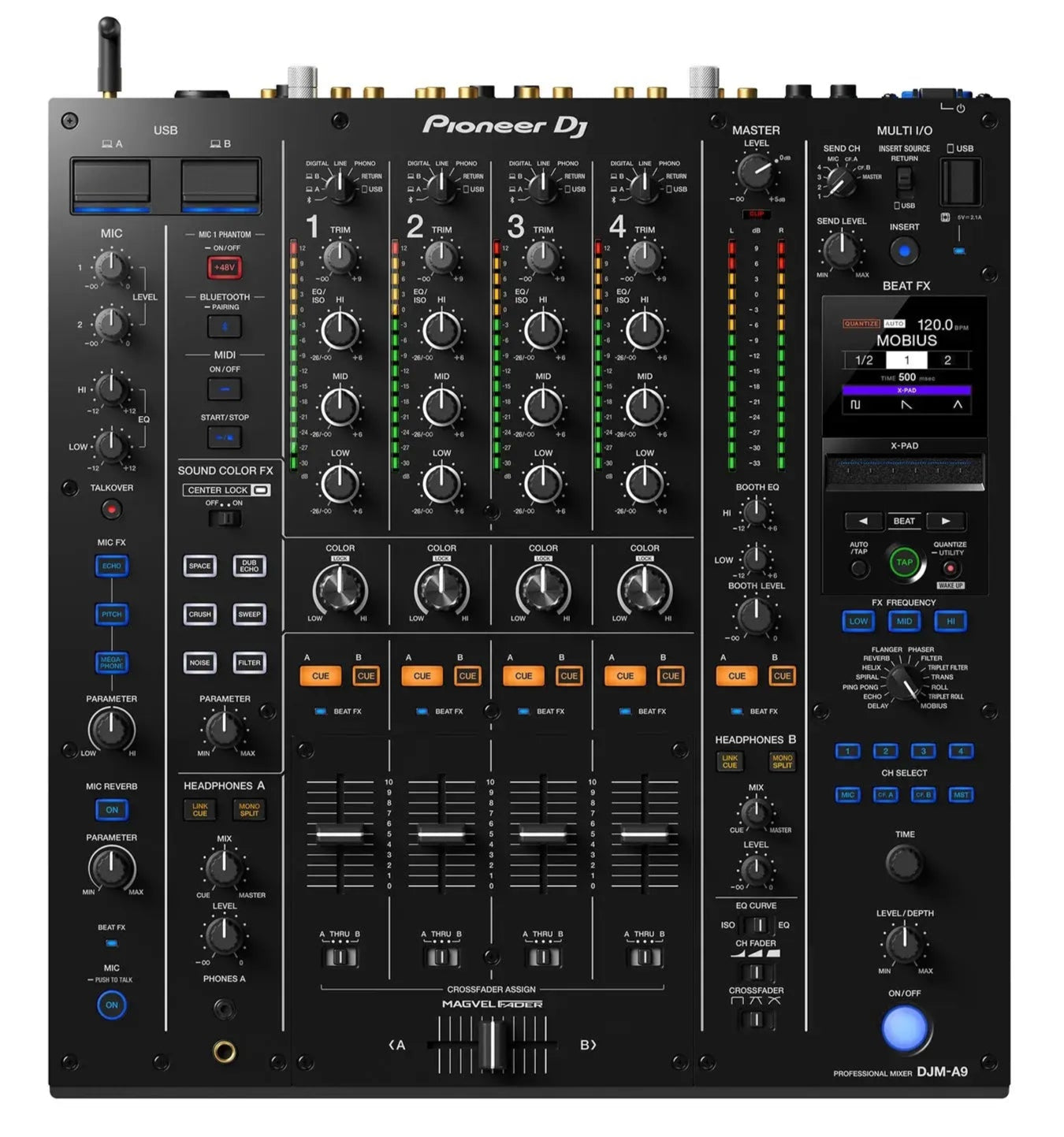

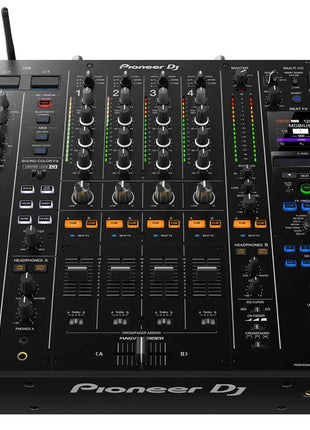

Pioneer DJ DJM-A9 - Professional 4-Channel DJ Mixer
The Pioneer DJ DJM-A9 is the new club-standard professional DJ mixer, raising the bar for audio quality, features, and connectivity. Building upon the legacy of the DJM-900NXS2, the DJM-A9 boasts enhanced sound processing, expanded inputs and outputs, innovative effects, and intuitive controls, making it the ultimate centerpiece for any professional DJ setup.
Key Features:
Superior Sound Quality:
High-quality 32-bit ESS Technology audio processing for pristine sound.
Improved A/D and D/A conversion in the input and output stages.
Enhanced Playability:
Refined layout with improved fader spacing and knob design.
4-channel configuration with 3-band EQ and Sound Color FX on each channel.
World-first Center Lock for Sound Color FX prevents accidental over-rotation.
Expanded Connectivity:
2 x phono/line inputs per channel.
Dual USB-B/C ports for seamless DJ transitions and DVS control.
Bluetooth input for wireless audio streaming.
Multi I/O for connecting mobile devices or MIDI instruments.
Dedicated send/return for external effects.
Advanced Effects:
6 Sound Color FX with parameter control.
14 Beat FX, including new Triplet Roll, Triplet Filter, and Mobius.
Frequency-specific Beat FX assignment.
X-Pad for intuitive effect parameter control.
Large color display for clear effect visualization and settings.
Dedicated Mic Channels:
2 mic inputs with 3-band EQ and dedicated effects (Echo, Pitch, Megaphone, Reverb).
Phantom power for condenser microphones.
Push-to-talk switch for temporary mic activation.

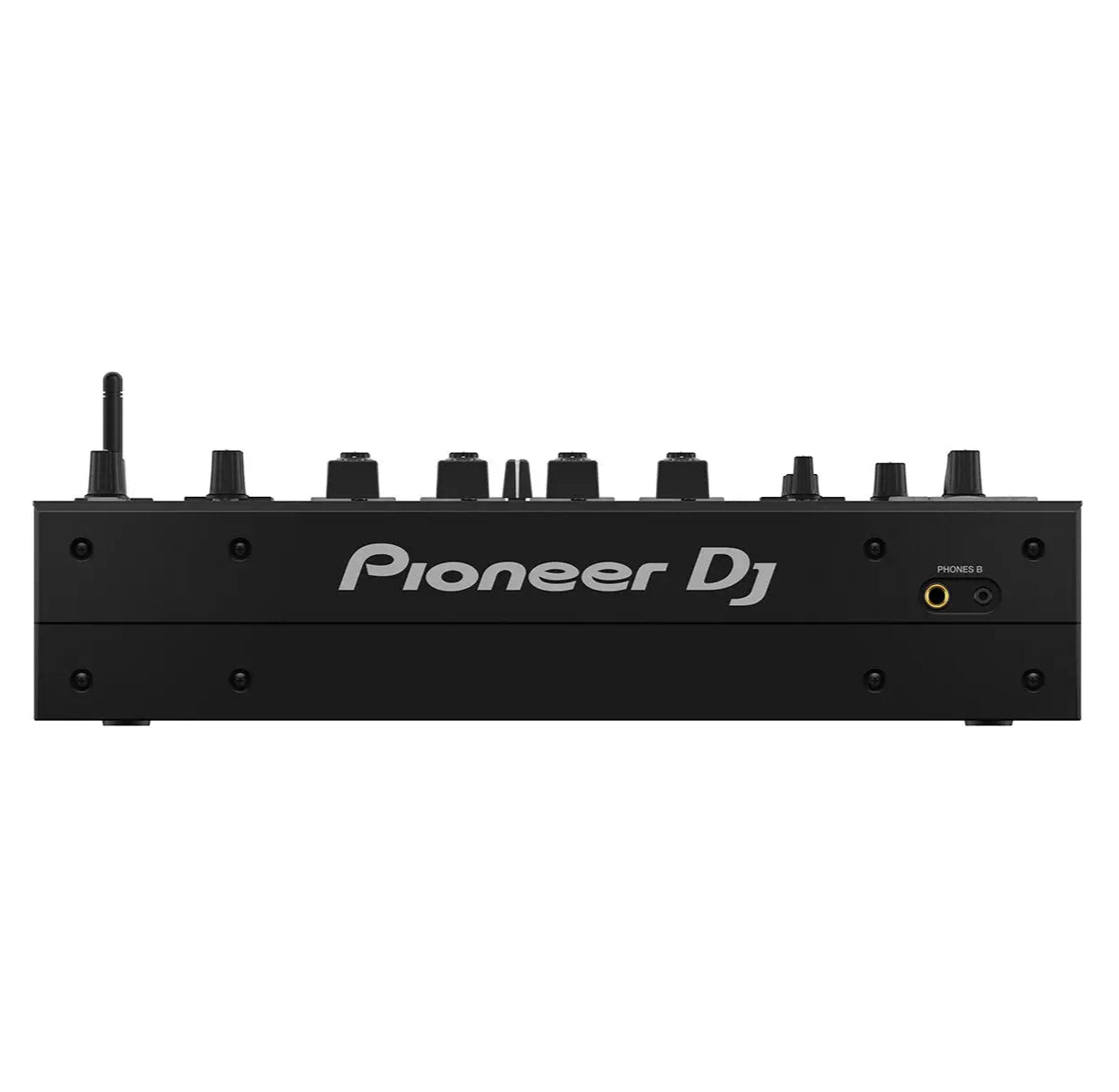

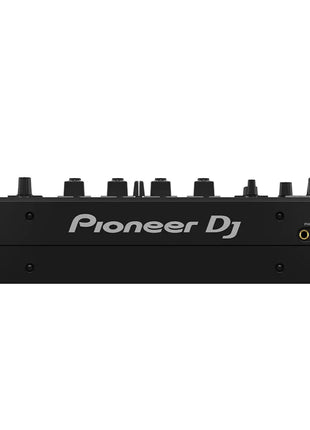

Dual Headphone Amps:
Independent controls for each headphone output.
Channel selection, link cue, cue mix, and split cue functionality.
Wi-Fi Control:
Built-in Wi-Fi for remote control and monitoring via the Stagehand app for iPad.
Access track information, mixer status, and settings wirelessly.
PRO DJ LINK:
Ethernet connection for Pro DJ Link integration with CDJ-3000s and other compatible devices.
Additional Features:
Magvel Fader Pro crossfader for smooth and precise transitions.
Booth EQ for optimizing monitor sound.
Utility menu for advanced settings and customization.
Technical Specifications:
Frequency Response: 20 Hz - 40 kHz (LINE)
S/N Ratio: 114 dB (USB, Digital IN), 88 dB (PHONO), 105 dB (LINE), 79 dB (MIC)
Total Harmonic Distortion: 0.005% (LINE-MASTER1)
Power Consumption: 46 W
Dimensions (W x D x H): 407.4 x 458.3 x 107.9 mm (16.0" x 18.0" x 4.2")
Weight: 10.2 kg (22.5 lbs)

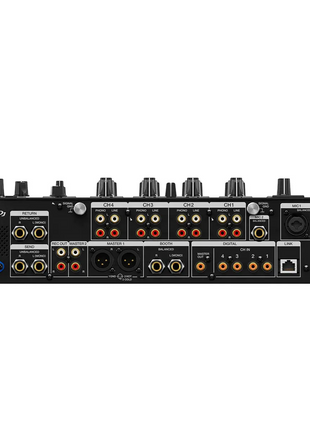

Inputs/Outputs:
Inputs: 4 x DIGITAL (coaxial), 4 x LINE (RCA), 4 x PHONO (RCA), 2 x MIC (XLR & 1/4" TRS, 1/4" TRS)
Outputs: 2 x MASTER (XLR, RCA), 1 x BOOTH (1/4" TRS), 1 x REC (RCA), 1 x DIGITAL MASTER (coaxial), 4 x PHONES (1/4" stereo jack x 2, 3.5-mm stereo mini jack x 2)
USB: 1 x USB Type-A, 2 x USB Type-B/C
Other: 1 x SEND (1/4" TS), 1 x RETURN (1/4" TS), 1 x LAN
Included Accessories:
Power cord
Quick Start Guide
Precautions for Use
Compatible Software:
rekordbox
Serato DJ Pro (license required)
ShowKontrol
PRO DJ LINK Bridge
