Description

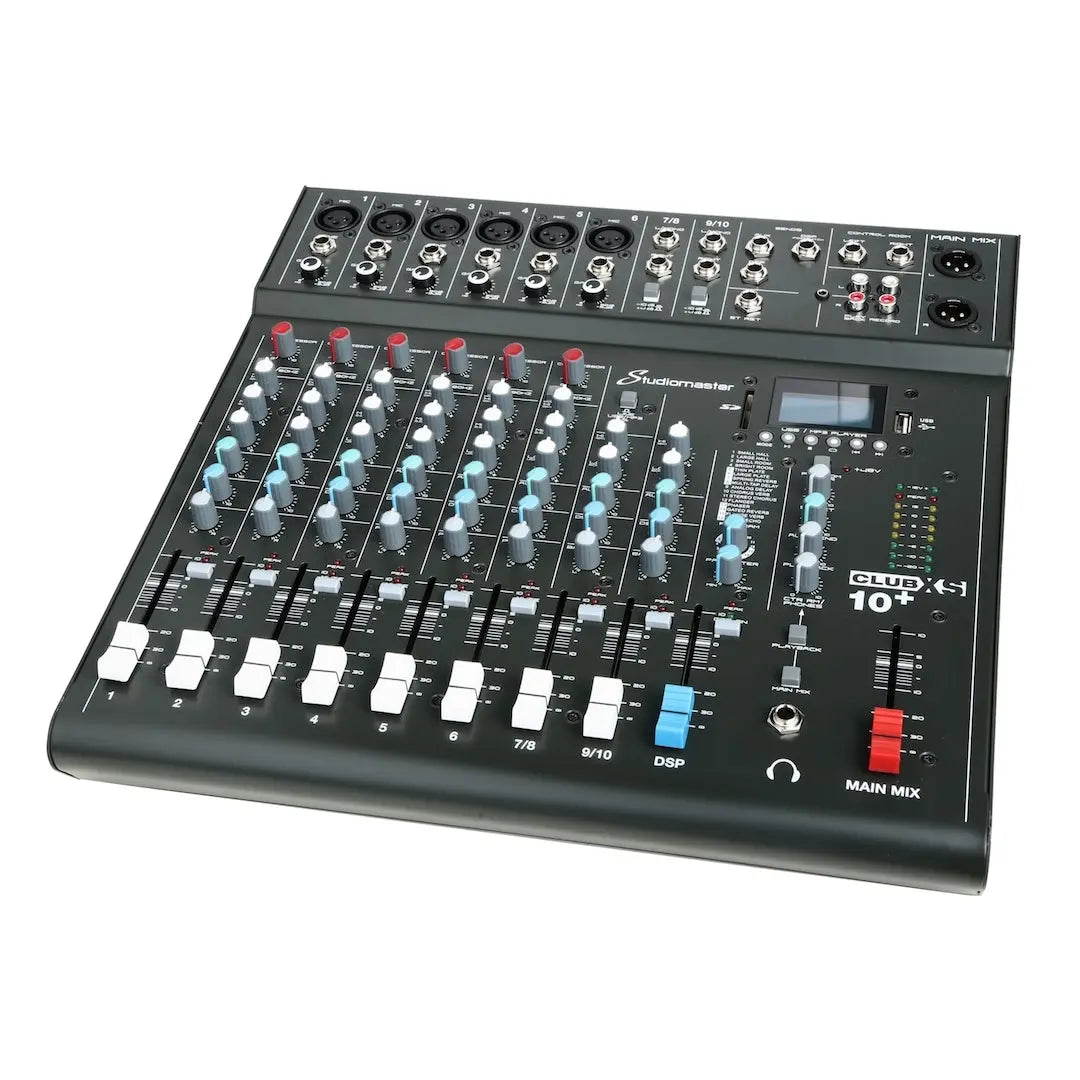

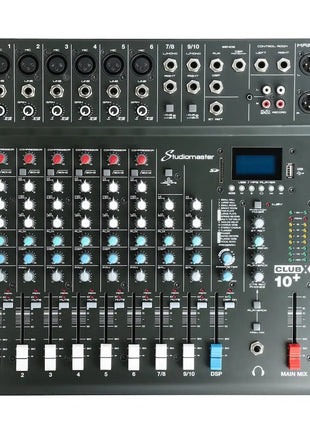

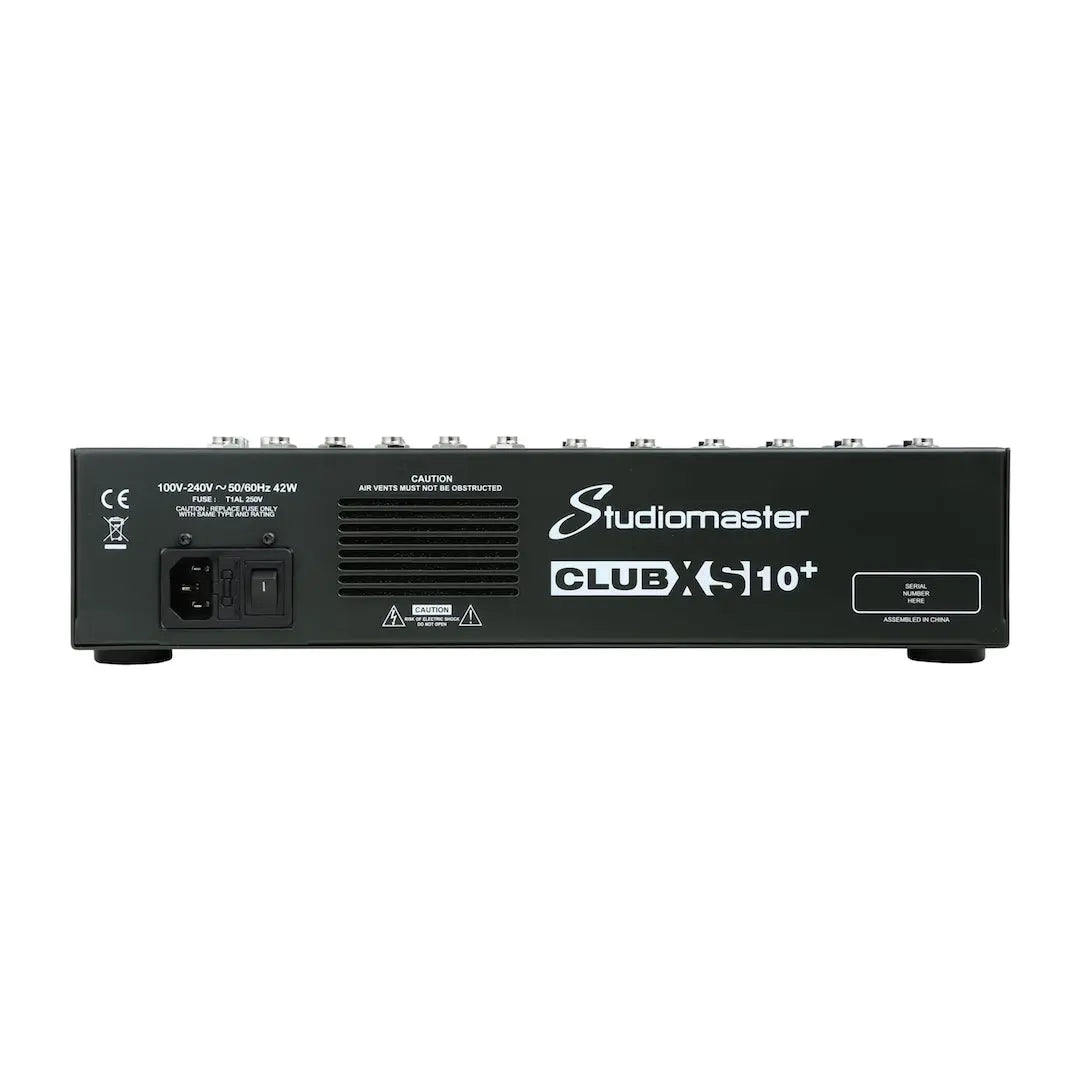

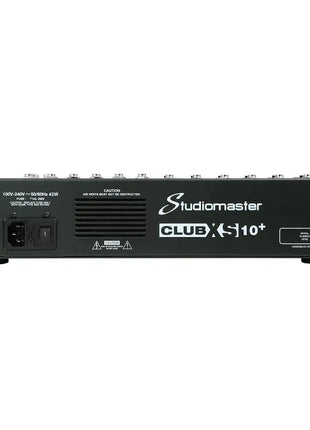

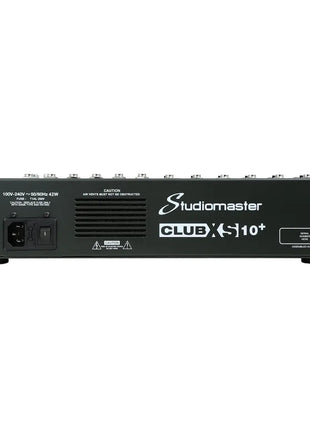

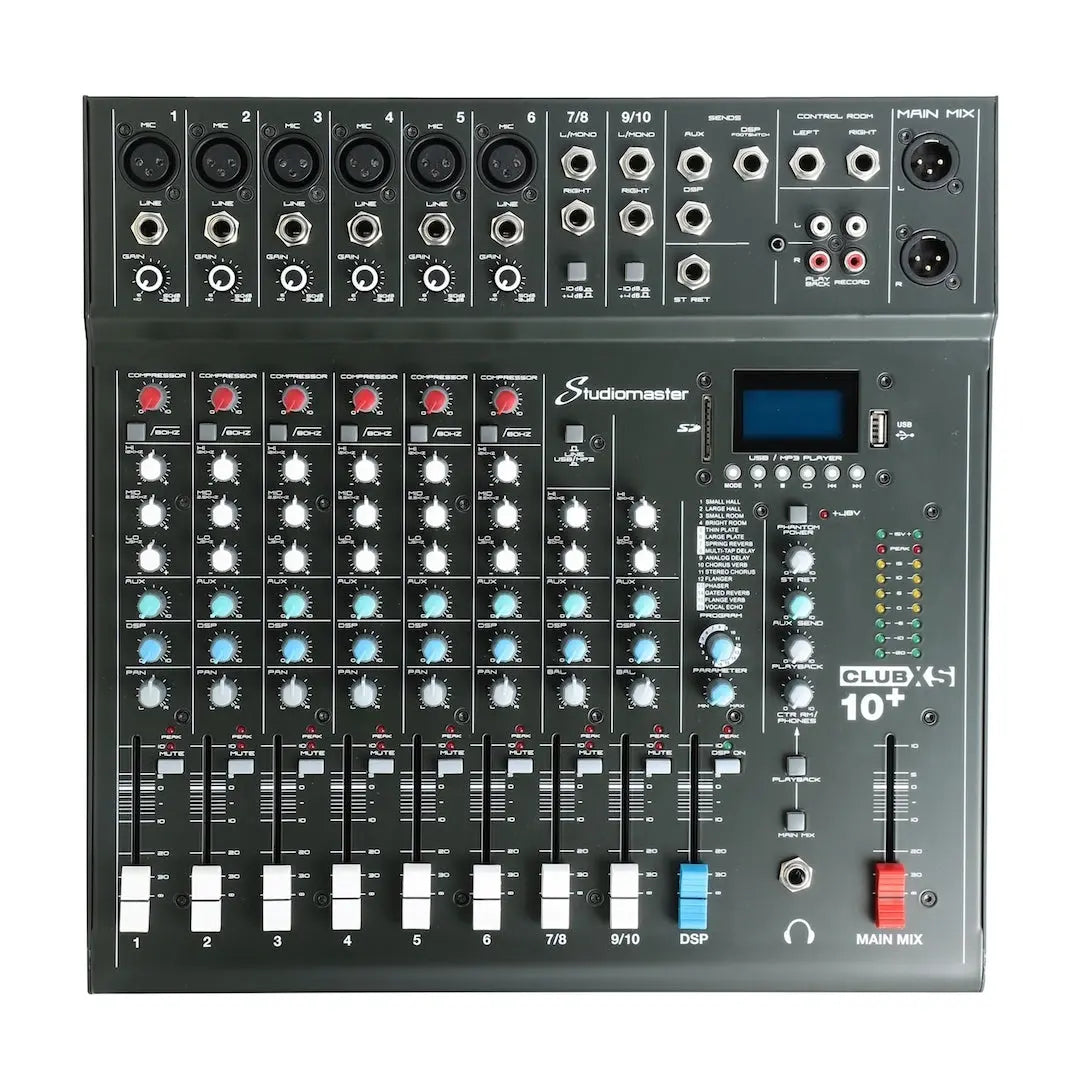

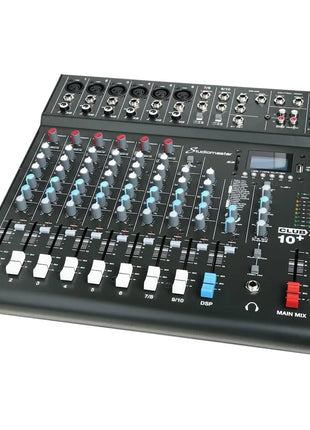

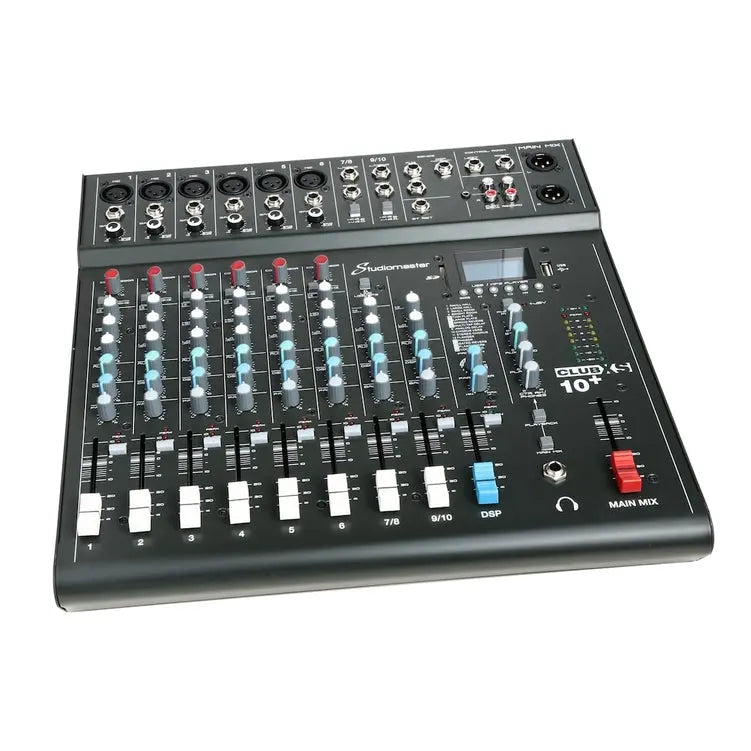

Studiomaster Club XS+ - Compact Mixer with DSP and Media Player
The Studiomaster Club XS+ mixers build upon the popular Club series, offering a compact and portable design with enhanced features like a DSP on/off footswitch socket and a refreshed aesthetic. They are versatile mixing consoles suitable for live performance and home recording, featuring Bluetooth connectivity, onboard DSP effects, and USB/SD card playback/recording.
Key Features
Compact and Portable: Lightweight and easy to transport.
Multiple Inputs: Ranging from 5 to 16 inputs (model dependent).
Mic/Line Channels:
XLR inputs for microphones.
Balanced 1/4" line inputs.
3-band EQ.
2 auxiliaries.
Compressor control.
Mute switch.
Stereo Channels:
2-band EQ.
2 auxiliaries.
Master Outputs: Balanced XLR connectors.
Auxiliary and Control Room Outputs: 1/4" jack outputs.
2-Track Inputs/Outputs: RCA connectors for record and playback.
Built-in DSP Effects: 16 digital effects.
Bluetooth Connectivity: For wireless audio streaming.
USB/SD Media Player: For playback and recording.
Footswitch Socket: For DSP on/off control.
Aesthetic Overhaul: Redesigned control knobs and Studiomaster "digital black" finish.
Technical Specifications
Inputs: 6 mic channels, 2 stereo channels (in the example provided)
EQ: 3-band (mic/line channels), 2-band (stereo channels)
Auxiliaries: 2
Effects: 16 DSP effects
Media: USB/SD
Connectivity: Bluetooth
Outputs: Balanced XLR (main), 1/4" jack (aux, control room), RCA (2-track)
Footswitch: DSP on/off
What's in the box
Studiomaster Club XS+ Mixer
Power cable
User manual
