Description

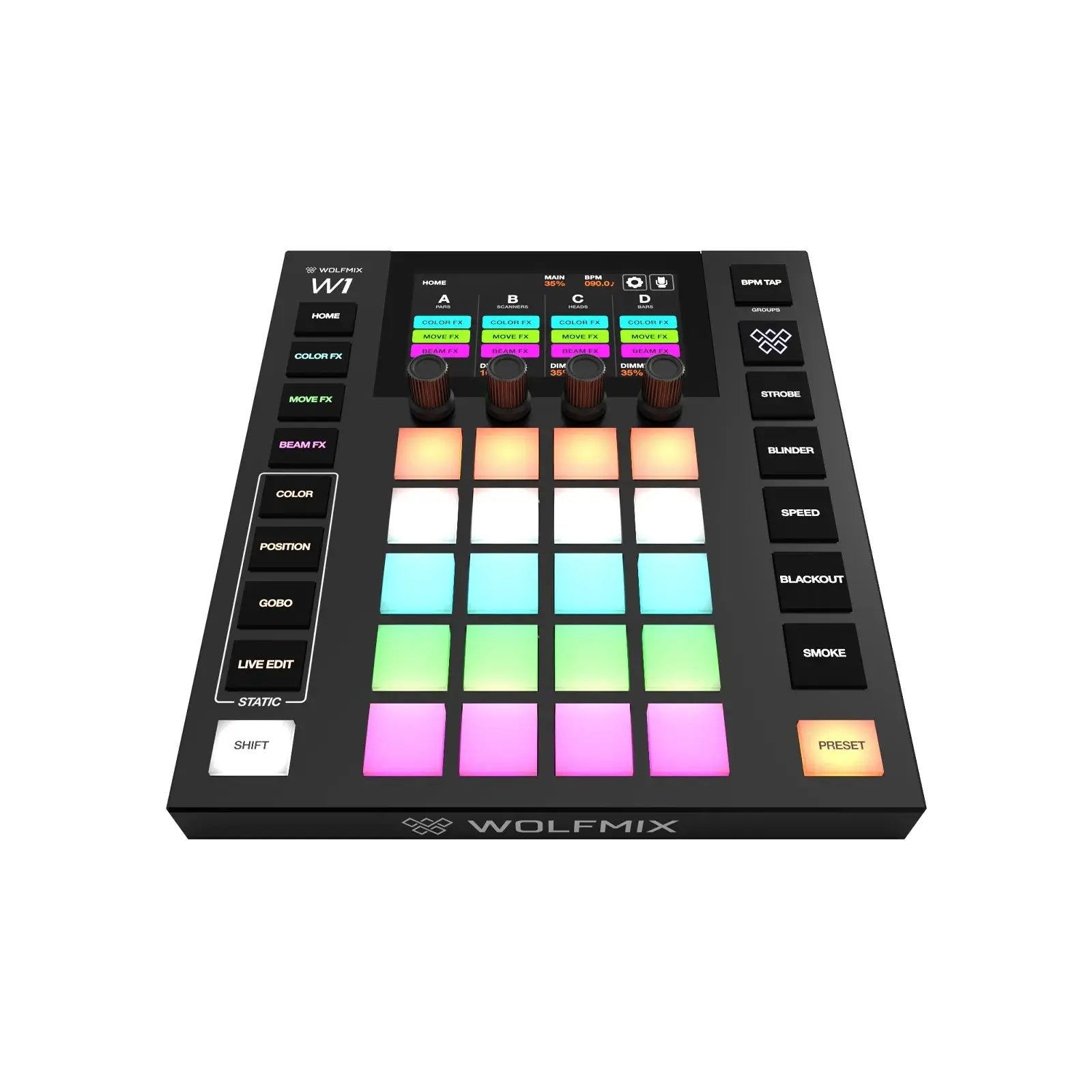

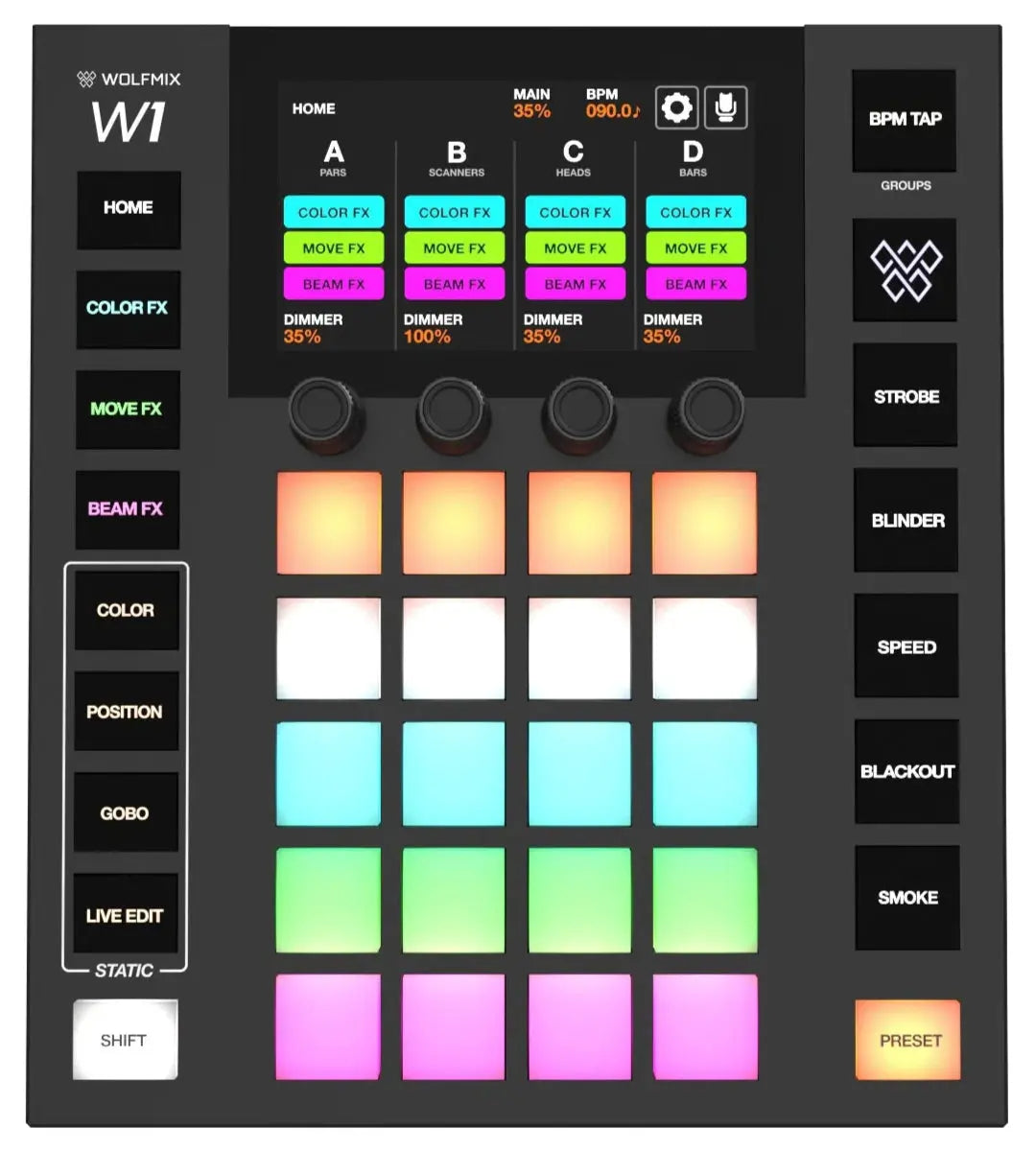

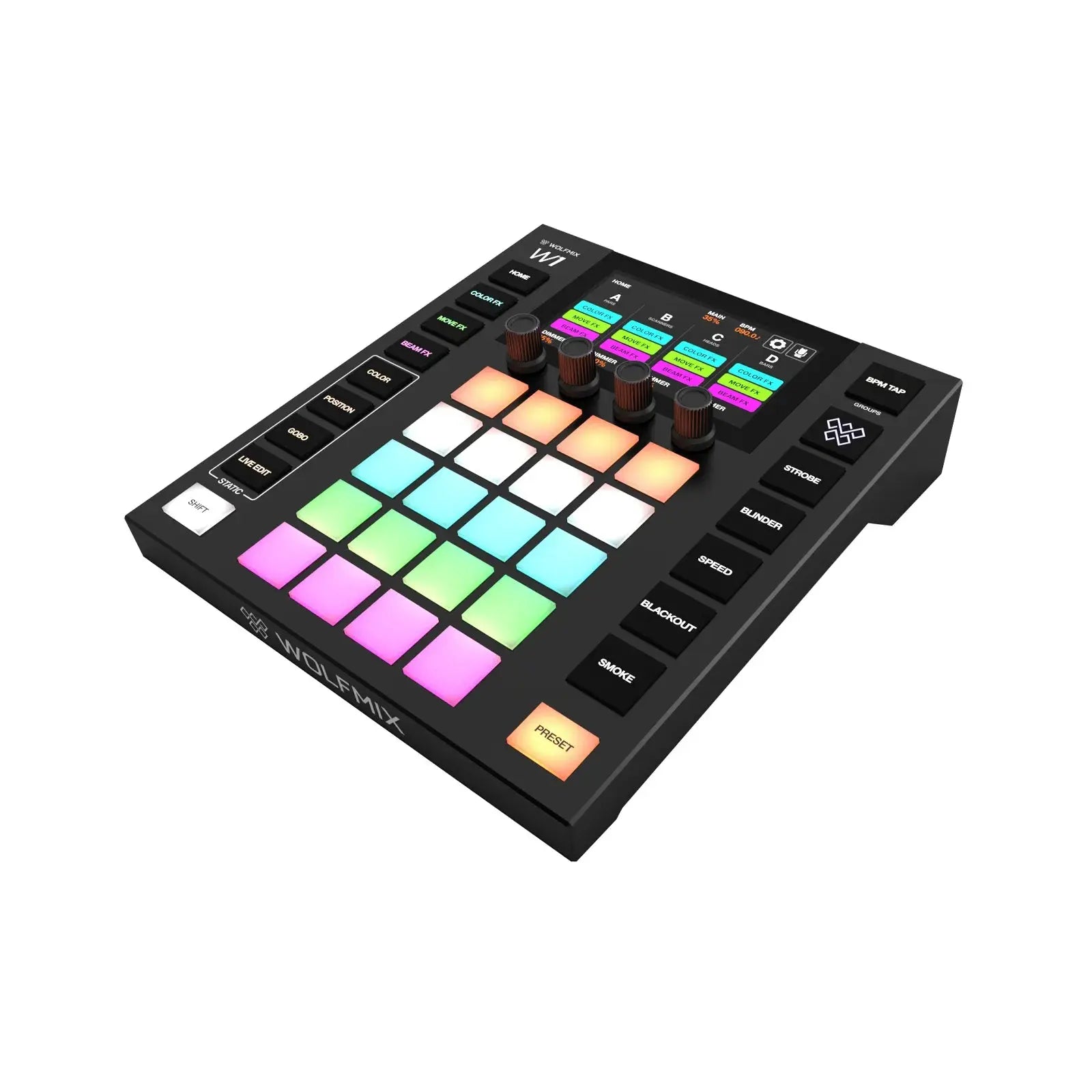

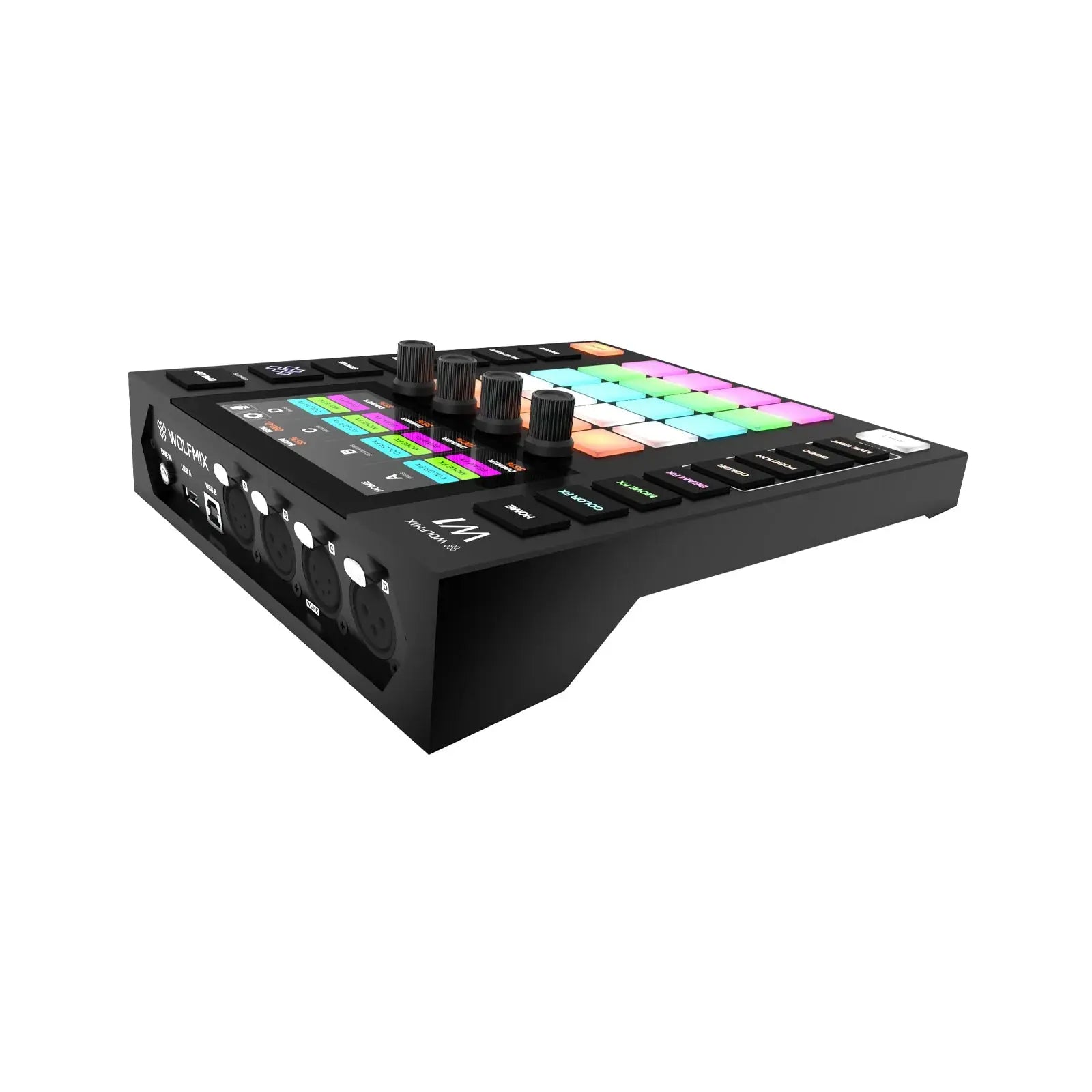

Wolfmix W1 Mk2 - Standalone DMX Lighting Controller
The Wolfmix W1 Mk2 is a powerful standalone DMX lighting controller designed for creating and controlling dynamic light shows without the need for a computer. The Mk2 version introduces enhanced connectivity with a USB-A port for backups, MIDI controller integration, and MIDI clock synchronization. It features a built-in CPU, touchscreen display, and a comprehensive fixture database, making it ideal for live performances, clubs, and shows.
Key Features
Standalone Operation: No computer required for light show creation and control.
Updated Connectivity (Mk2): USB-A port for backups, MIDI controller integration, and MIDI clock sync.
Built-in CPU and Touchscreen: Powerful processor and intuitive 4.3" touchscreen interface.
Extensive Fixture Database: Over 3,500 built-in fixtures, expandable to 15,000+ via the WTOOLS app.
4 DMX Outputs: Control up to 4 DMX universes.
Powerful FX Modules: Color FX, Move FX, Beam FX, and Step Sequencer.
Music Sync: Sync light shows to music via Ableton Link, OS2L, BPM tap, audio line-in, or audio mic.
Hands-on Control: 37 colored silicone buttons and push encoders for direct access to features.
Robust Hardware: Powder-coated steel base, reinforced steel backplate, and durable construction.
WTOOLS App (PC/Mac): For cloud project backup, fixture profile management, 3D visualization (add-on), and more.
DMX Tools: Fixture splitting, universe mapping, and more.
Live Editing: Custom channel values and live edits.
Project Backup: Cloud project backup and restore.
Fixture Builder: Create custom fixture profiles directly on the controller.
Quick Startup: Boots in under 2 seconds.
FX Modules
Color FX: Mix colors, create rainbow, sparkle, and light fever effects.
Move FX: Create moving patterns on scanners and moving heads.
Beam FX: Chases, waves, and heartbeat dimming effects.
Step Sequencer: Create custom patterns.

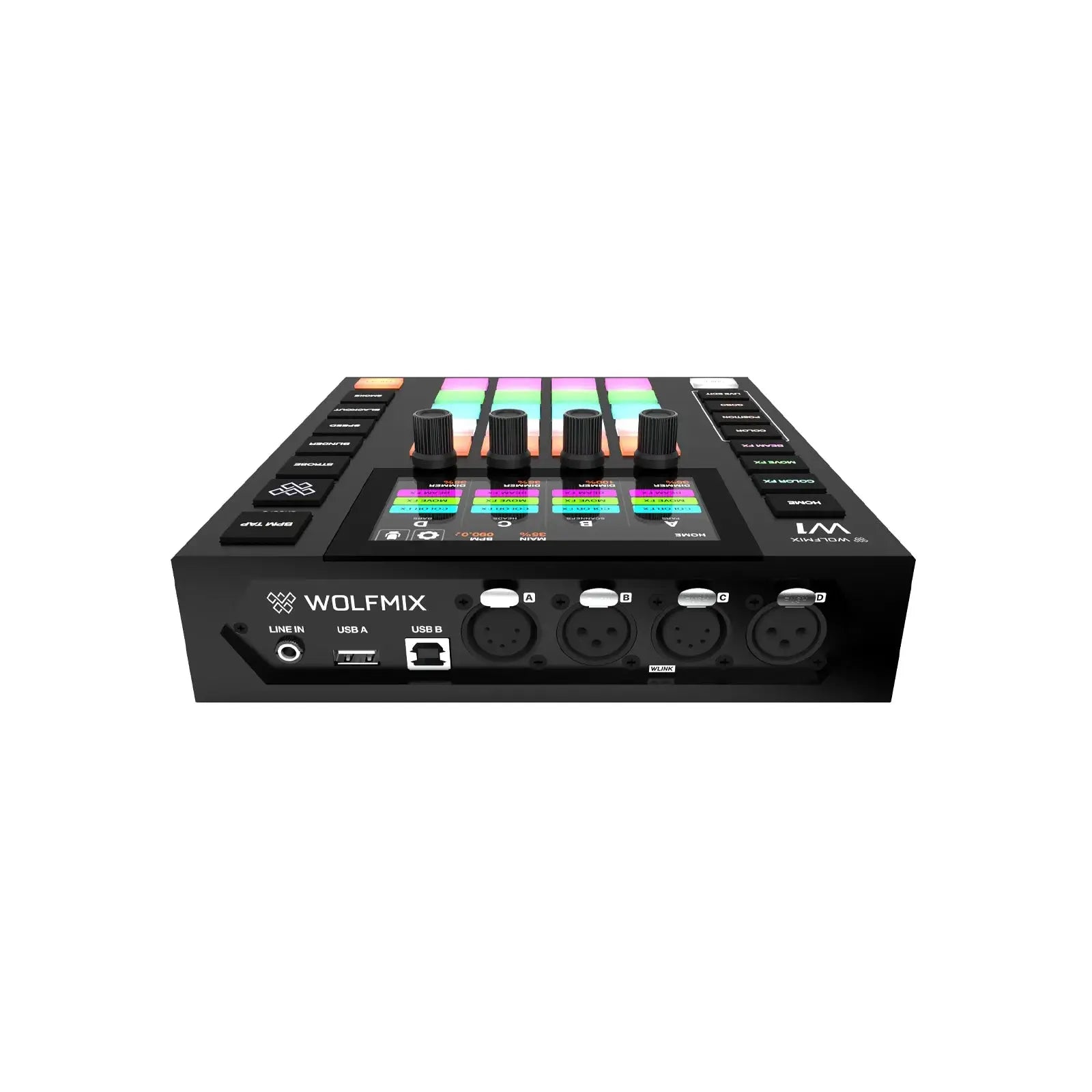

Connectivity
4 x DMX Outputs
USB-A (Mk2)
USB-B
Audio Line-In
Audio Mic
Technical Specifications
CPU: Dedicated CPU
Flash Memory: 16MB NOR flash memory
Display: 4.3" capacitive touchscreen
Buttons: 37 silicone buttons
Encoders: 4 push encoders
DMX Outputs: 4
USB: USB-A, USB-B
What's in the box:
Wolfmix W1 Mk2 Controller
USB Cable
Power Supply
Quick Start Guide
