| Feature |
Specification |
| Output Power |
2500W |
| Low-Frequency Driver |
15.0” driver, 2.5” (63 mm) high-temperature voice coil. 1 x 800 W RMS @ 2 Ω. |
| High Frequency Driver |
1.0” exit ceramic driver with 1.4” (35 mm) coil. 1 x 450 W @ 4 Ω. |
| Crossover Frequency |
2 kHz |
| Maximum SPL |
135 dB (peak), 132 dB (continuous) (dB-SPL @ 1 m) |
| Frequency Response |
44 Hz – 20 kHz (+/- 3 dB) |
| Frequency Range |
33 Hz – 20 kHz (-10 dB) |
| Horn Coverage |
90° horizontal x 60° vertical (nominal) |

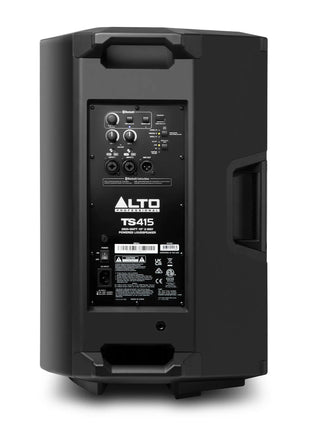

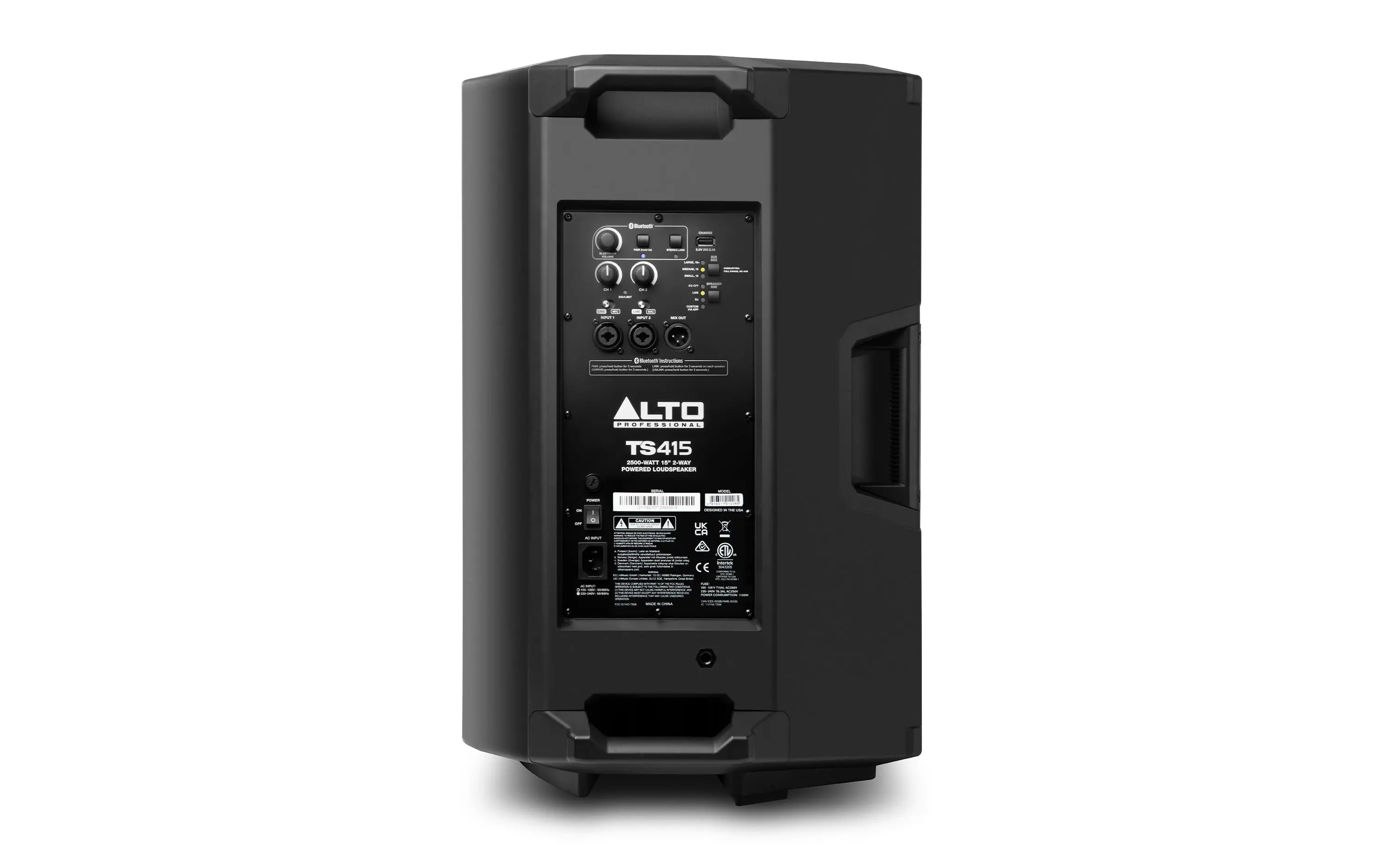

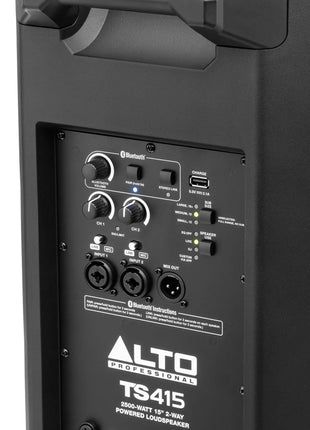

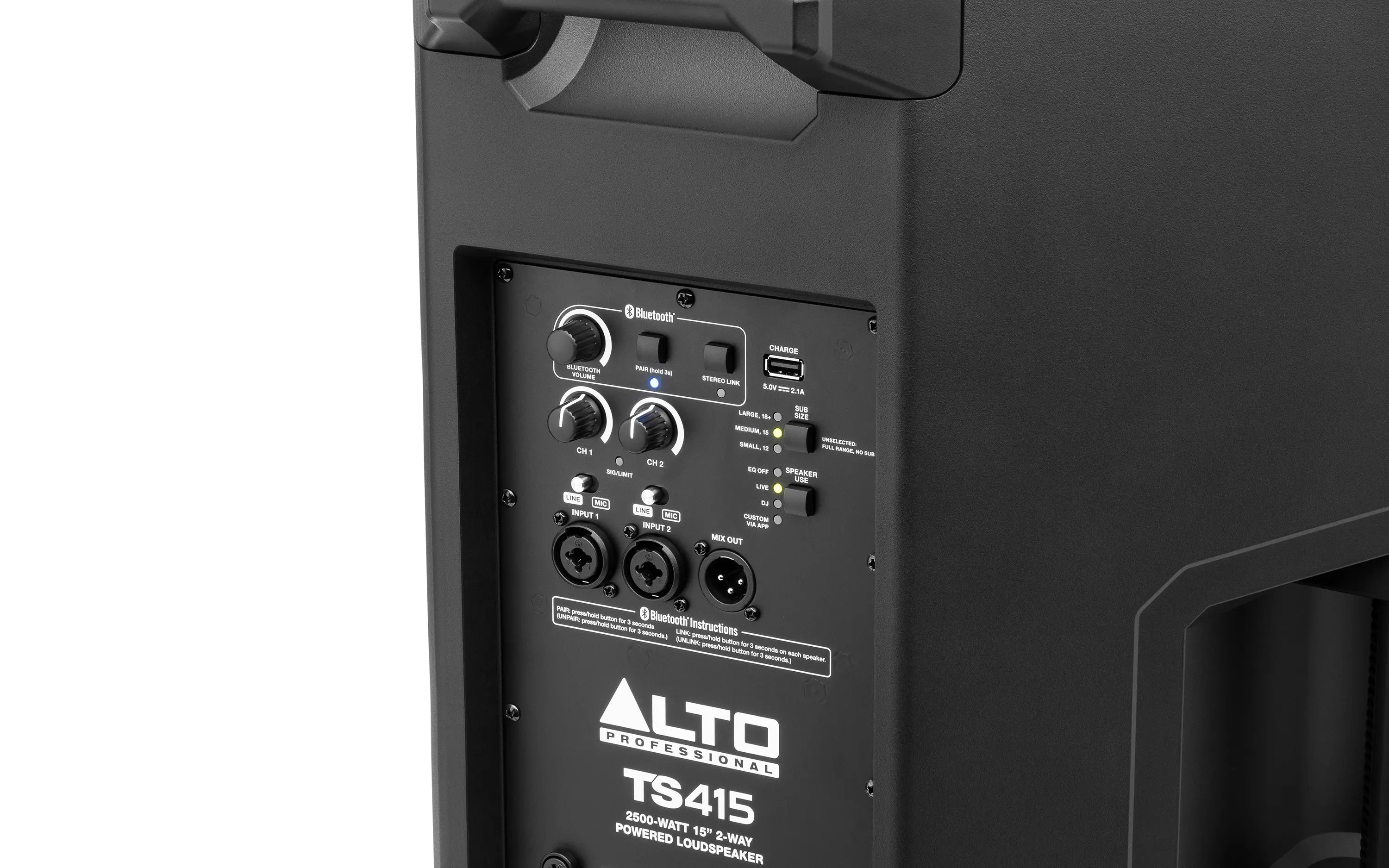

| Connectors |
(2) XLR+1/4” (6.35 mm) TRS combo inputs (Balanced)
(1) XLR output (Link)
(1) IEC power cable input |
| Input Impedance Line |
10 KΩ balanced, 20 KΩ unbalanced, Mic: 1.2K |
| Line Gain/Volume Control Range |
-∞ to 0 dB, +4 dBu nominal, +10 dBu for max output |
| Mic/Inst. Gain / Volume Control Range |
-∞ to +50 dB |
| USB Charging Port |
5V 2.1A |
| Controls |
Power switch, (2) gain control knobs (1 per input), (2) Mic/Line switches, Blue-tooth volume control encoder, Pairing button, Stereo Link button, Sub Size button, Speaker Use button |
| Indicators |
(1) Input Channel Signal/Limit/Clip LED (Green = Ch1/2 Signal) (Yellow = Ch1/2 Limiter) (Red = Ch1/2 Output Clipped)
(1) Bluetooth LED (Blue)
(1) Link LED (Orange)
(4) DSP Presets LED (Green)
(3) HPF LED (Green) |
| Power Connection |
IEC |
