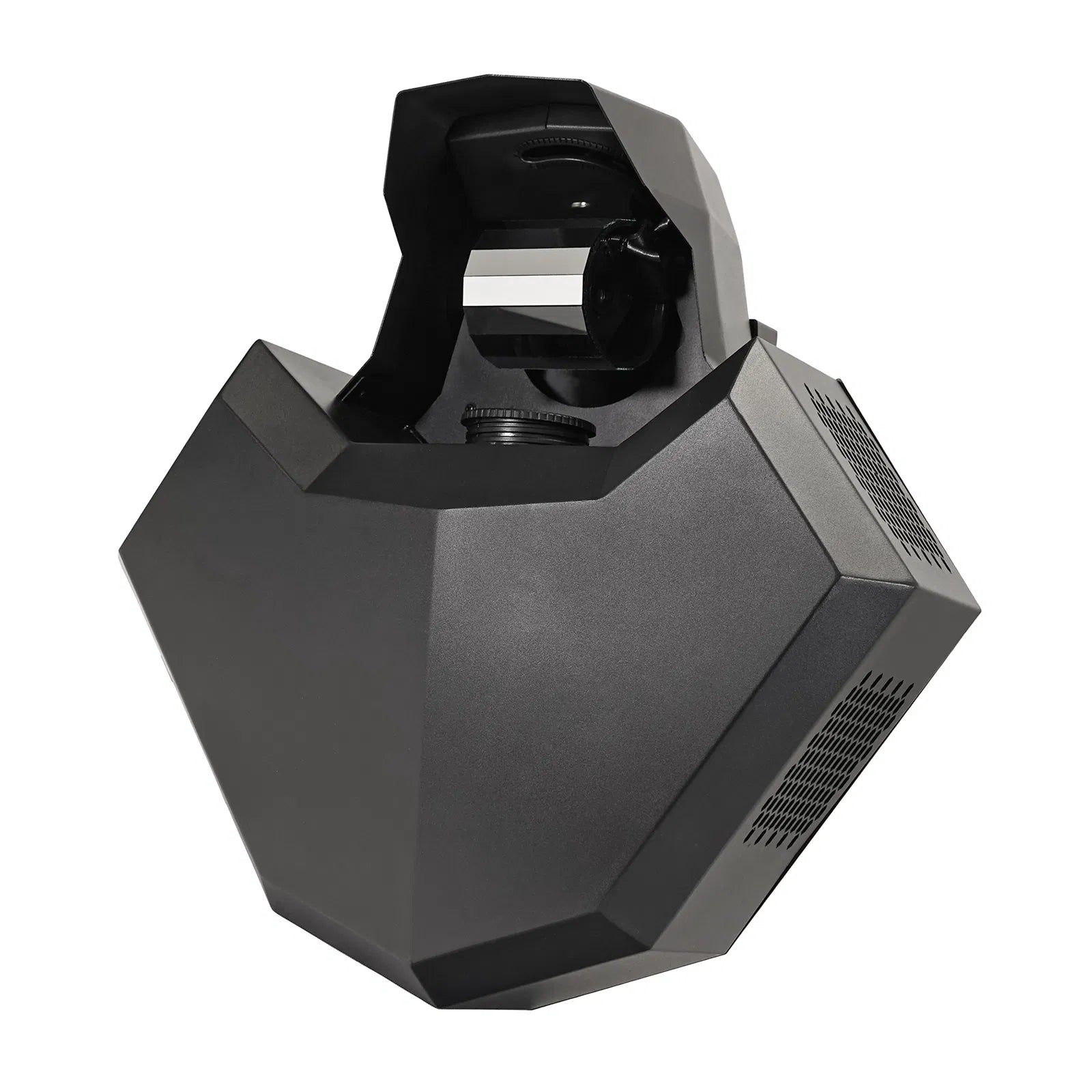

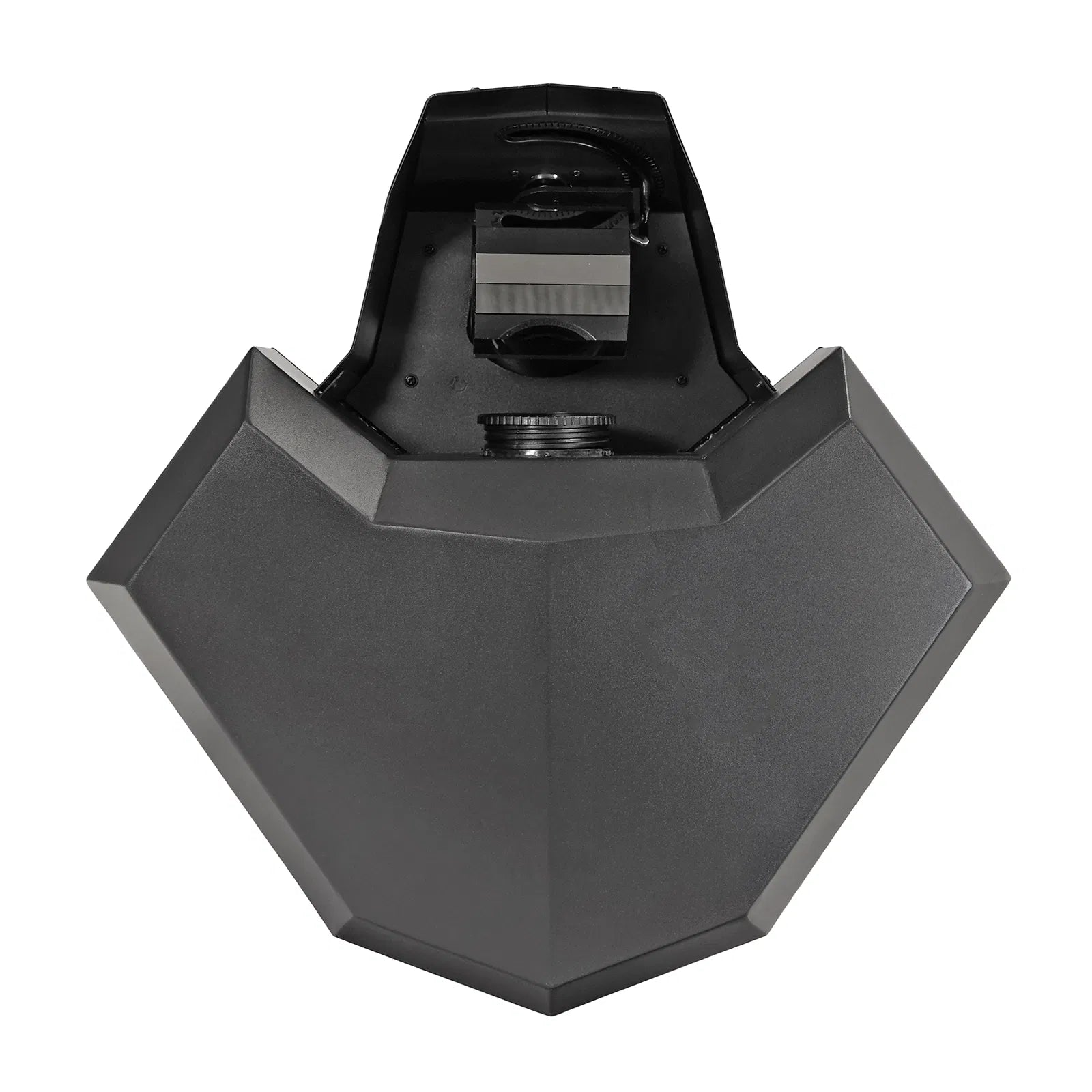

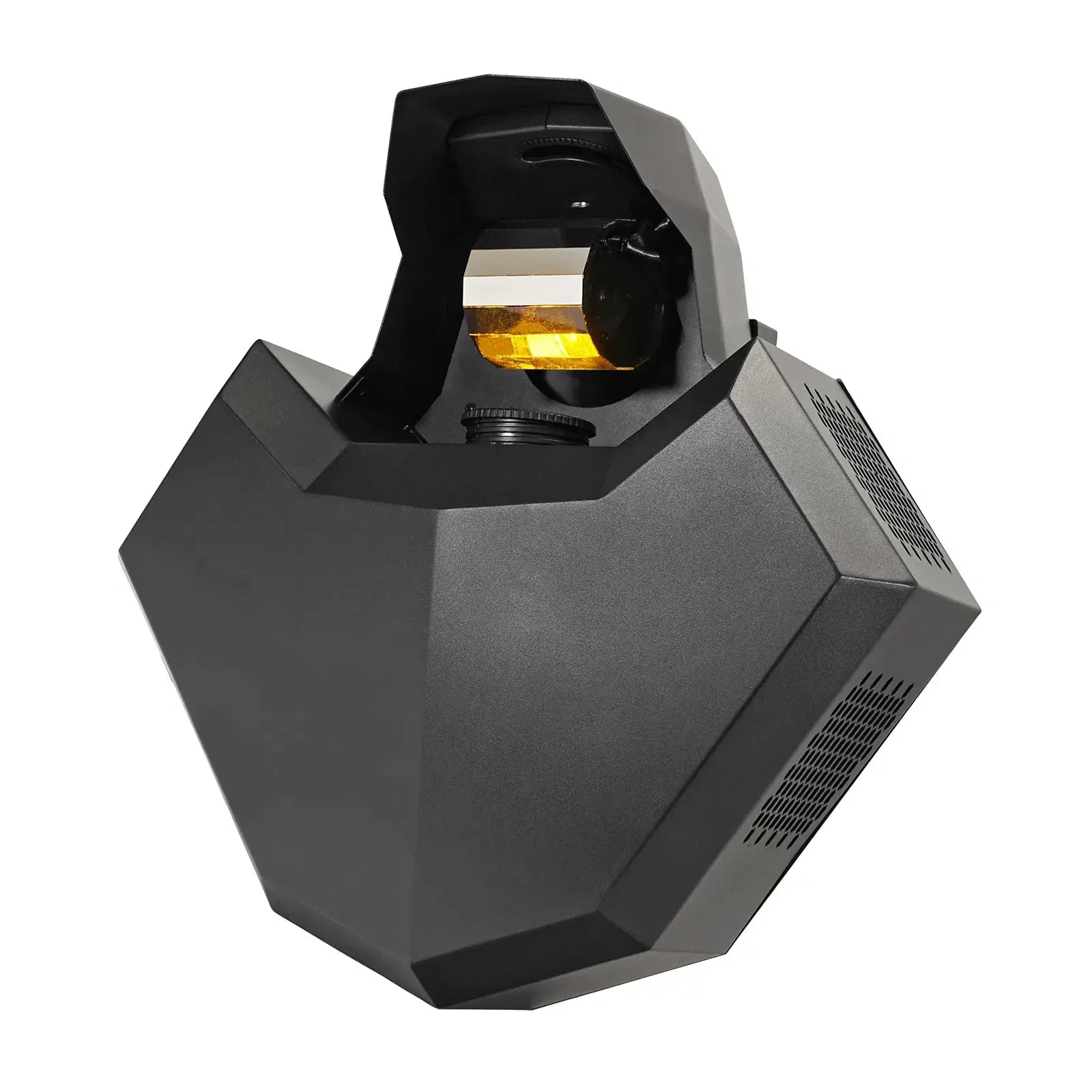

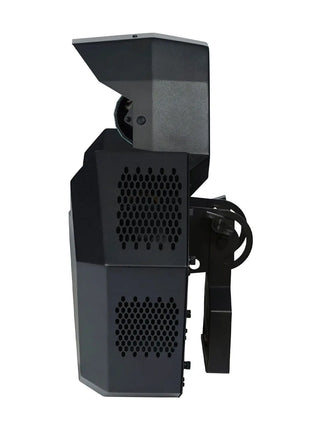

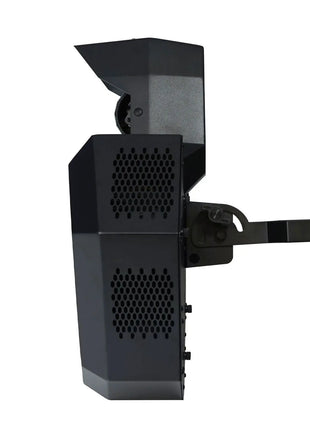

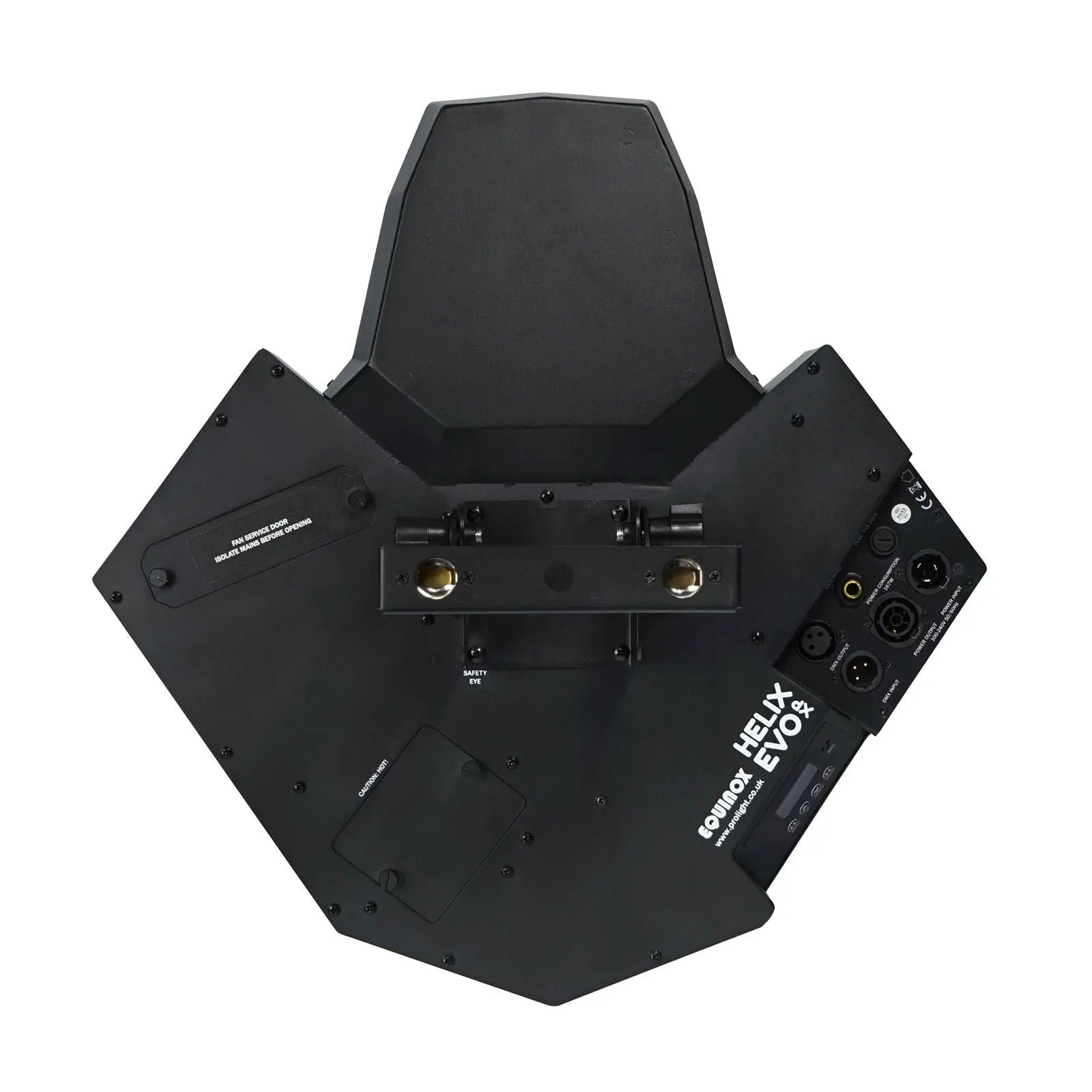

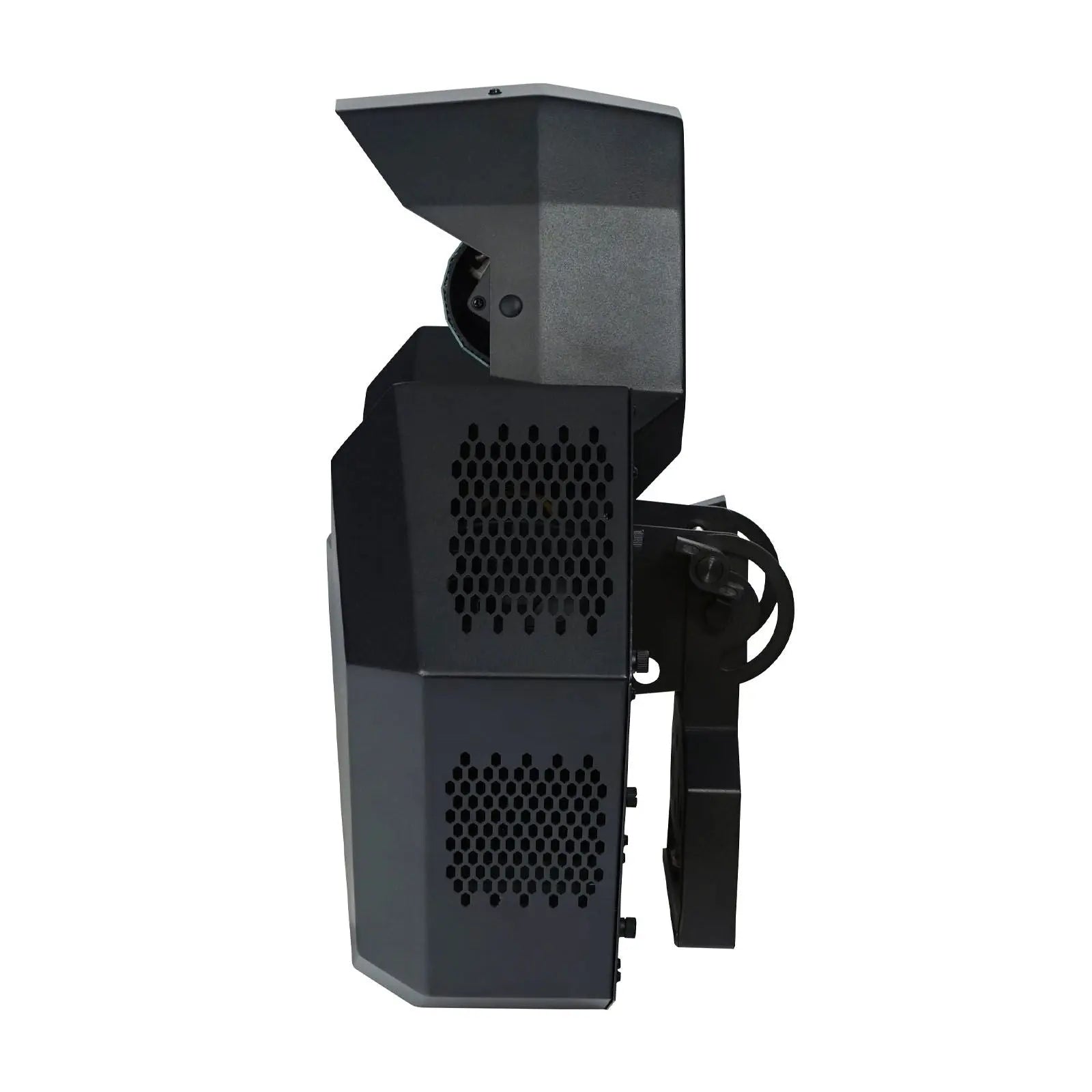

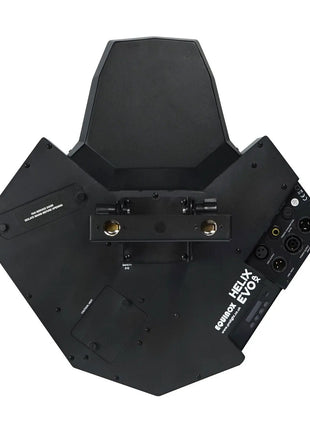

Equinox Helix Evo XP - LED Barrel Effect with Mirror Dish
The Equinox Helix Evo XP builds upon the popular Helix range by combining a powerful 150W barrel effect with a mirror dish to create dynamic, multi-coloured rotating gobo projections that sweep across any room. It offers interchangeable gobos and a separate colour wheel, along with clever programming features and versatile control options.
Key Features
150W Cool White LED (7700K): Provides high output and sharp projections.
Mirror Dish and Barrel Effect: Projects rotating gobos for wide coverage.
8 Interchangeable Gobos: Allows for diverse pattern projections.
9 Colours + Open Colour Wheel: Offers a wide range of colour options.
Additional 11-Piece Gobo Pack Included: Expands gobo selection for various events.
Smart Programming: Enables selection of a single gobo with automatic or sound-activated colour additions.
Wide Beam Angle with Long-Distance Punch: Superior optics and high output LED for impactful projections.
Linkable with Helix XP, Helix Scan XP, and Helix Roller XP: For synchronized light shows.
Available in Black or White Housing: To suit different setups.
Manual Focus: Ensures crisp gobo projections.
Multiple Control Options: DMX, Auto, Sound-Active, Primary/Secondary modes, and optional CA 8 controller.
Pan and Tilt Movement: 180° pan and 360° continuous tilt for dynamic effects.
0-100% Dimming and Variable Strobe: For adjustable intensity and strobe effects.
OLED Display with 4 Push Button Menu: For easy configuration.

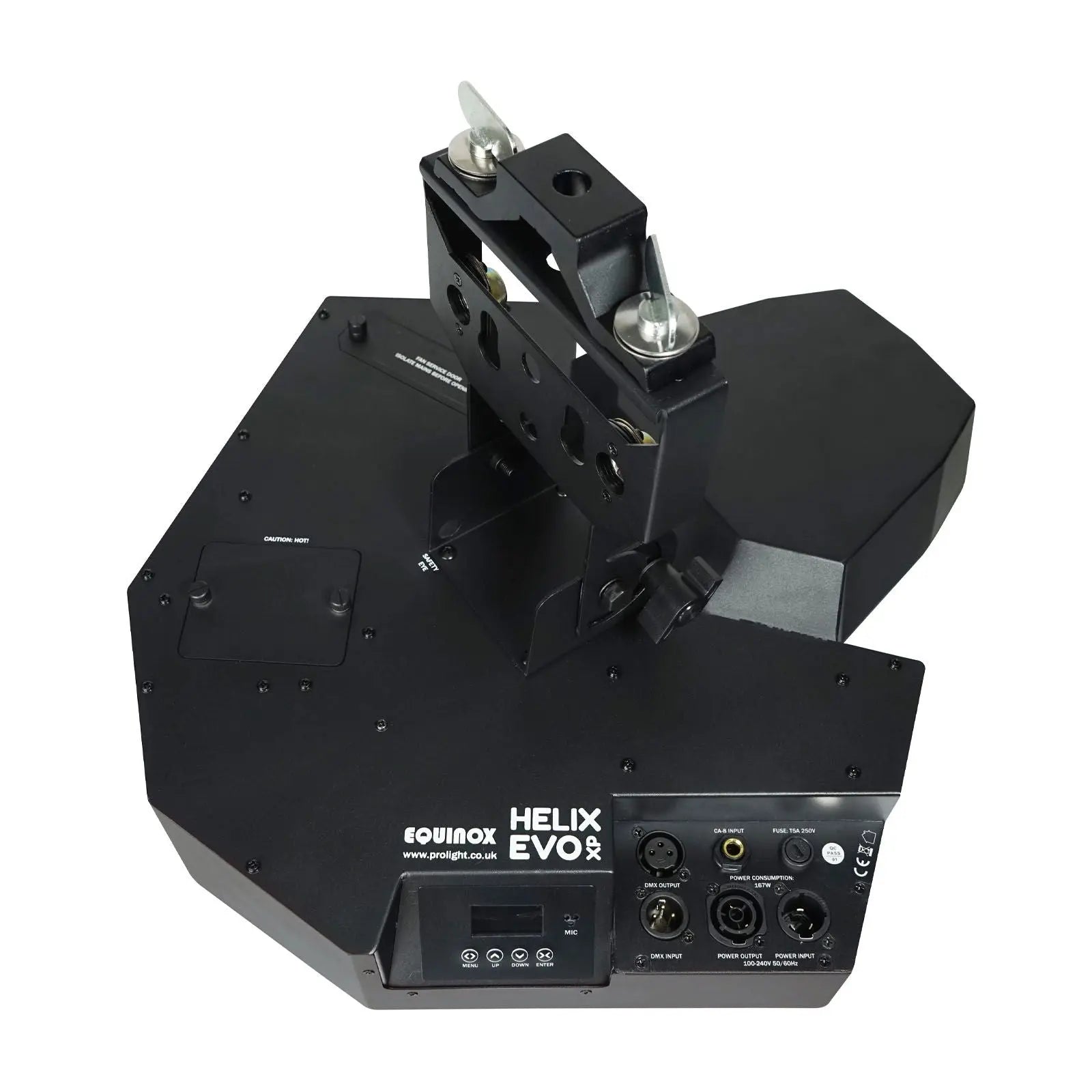

PowerTwist TR1 Input/Output: For secure power connections.
3-Pin XLR Input/Output: For DMX connectivity.
Fan Cooled: Ensures reliable operation.

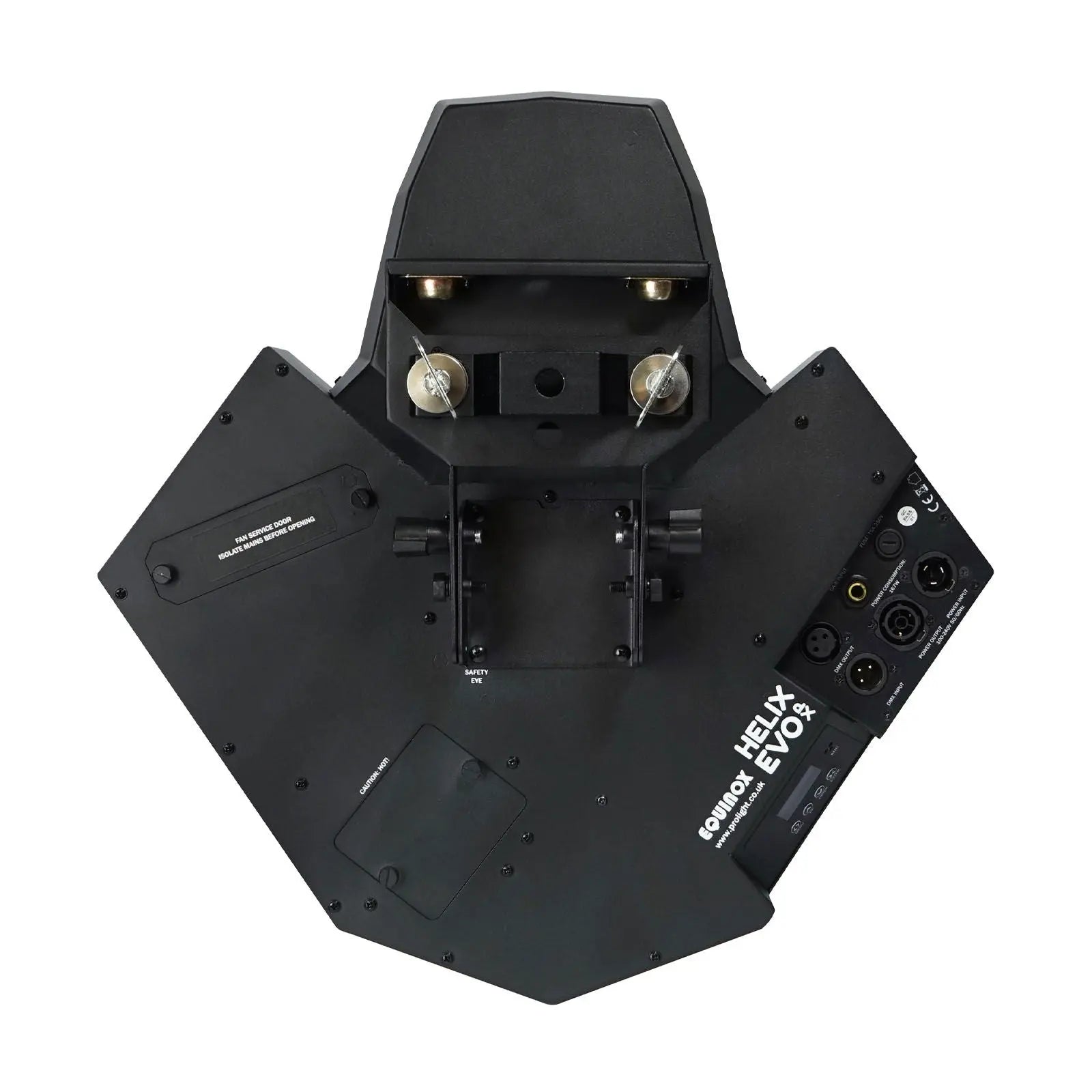

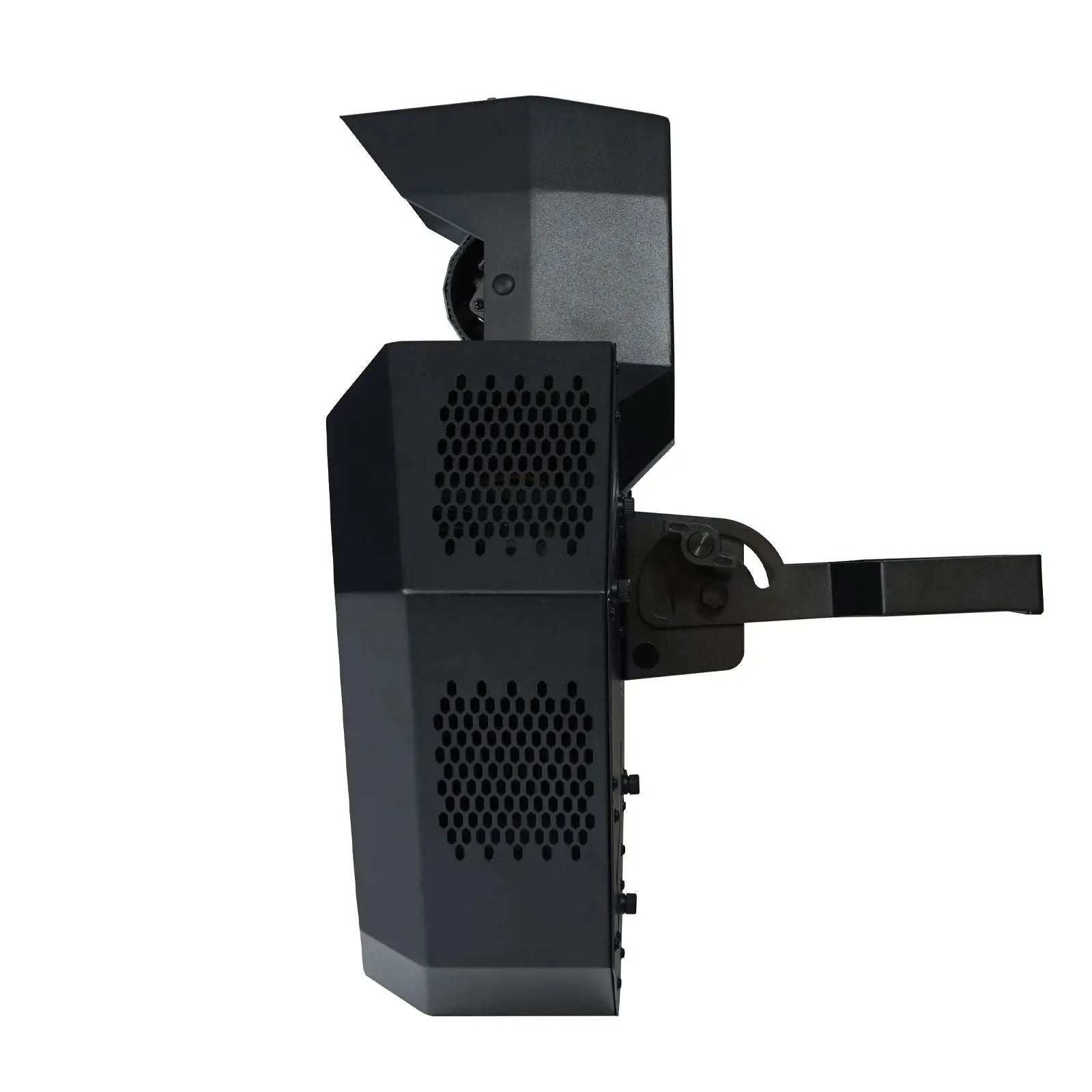

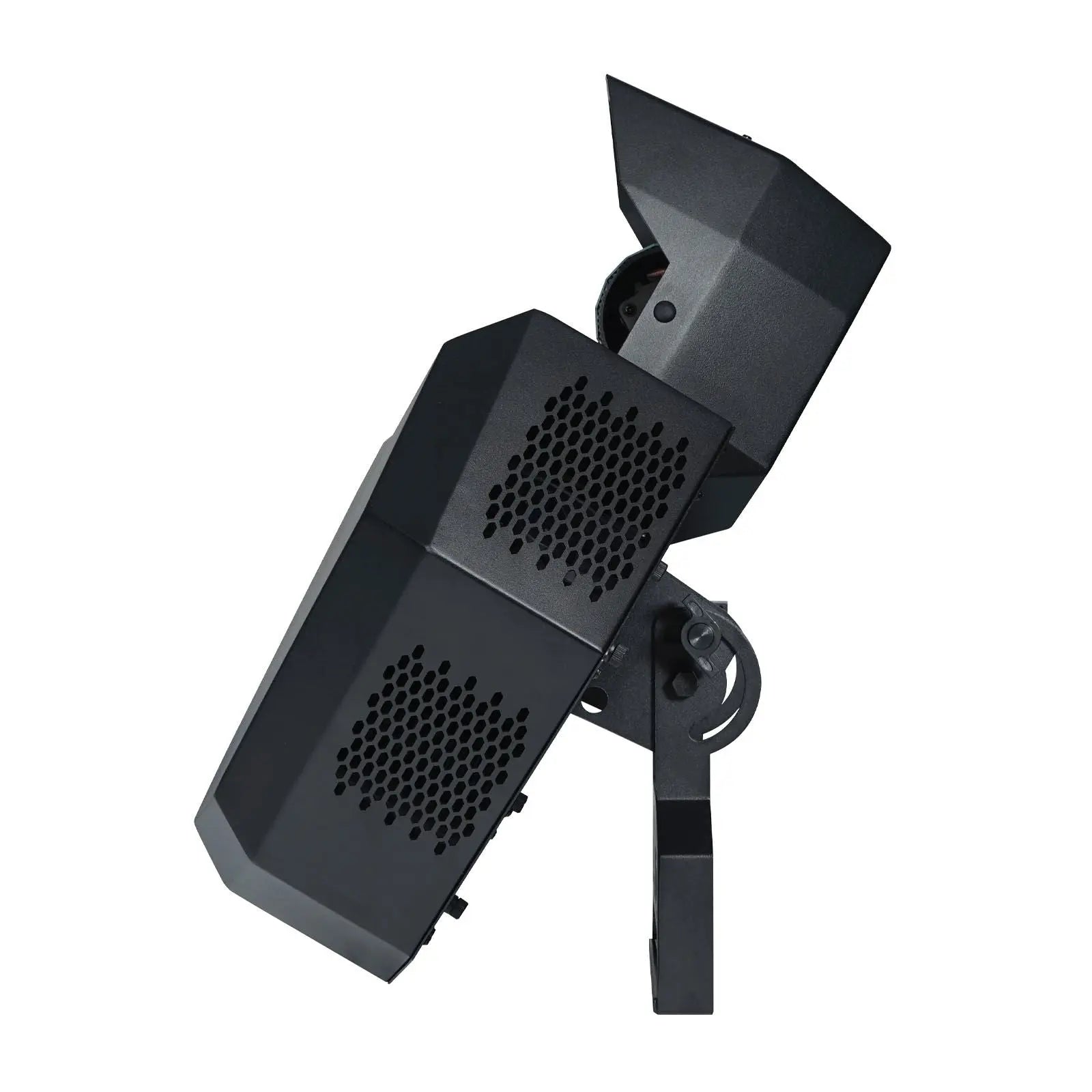

Heavy Duty Bracket with Multiple Mounting Options: For flexible installation.
Quick Release Omega Clamp: For easy rigging.
Technical Specifications
LED: 1 x 150W Cool White LED (7700K)
Beam Angle: 2.3° (per beam), 22° (per gobo flower)
Coverage Angle: 160°
Refresh Rate: 1kHz
Gobo Wheel: 8 rotating, replaceable gobos + 11 extra gobos.
Colour Wheel: 9 colours + open
DMX Channels: 3/9 or 12 selectable
Pan: 180°
Tilt: 360° continuous
Dimming: 0 - 100%
Power Consumption: 149W
Power Supply: 100~240V, 50/60Hz
Fuse: T3.15A 250V
Dimensions (H x W x D): 467 x 456 x 208mm
Weight: 7.5kg
What's in the box:
Equinox Helix Evo XP LED Barrel Effect
11 piece additional gobo pack.
Quick Release Omega Clamp
Power Cable
User Manual
