Key Features:

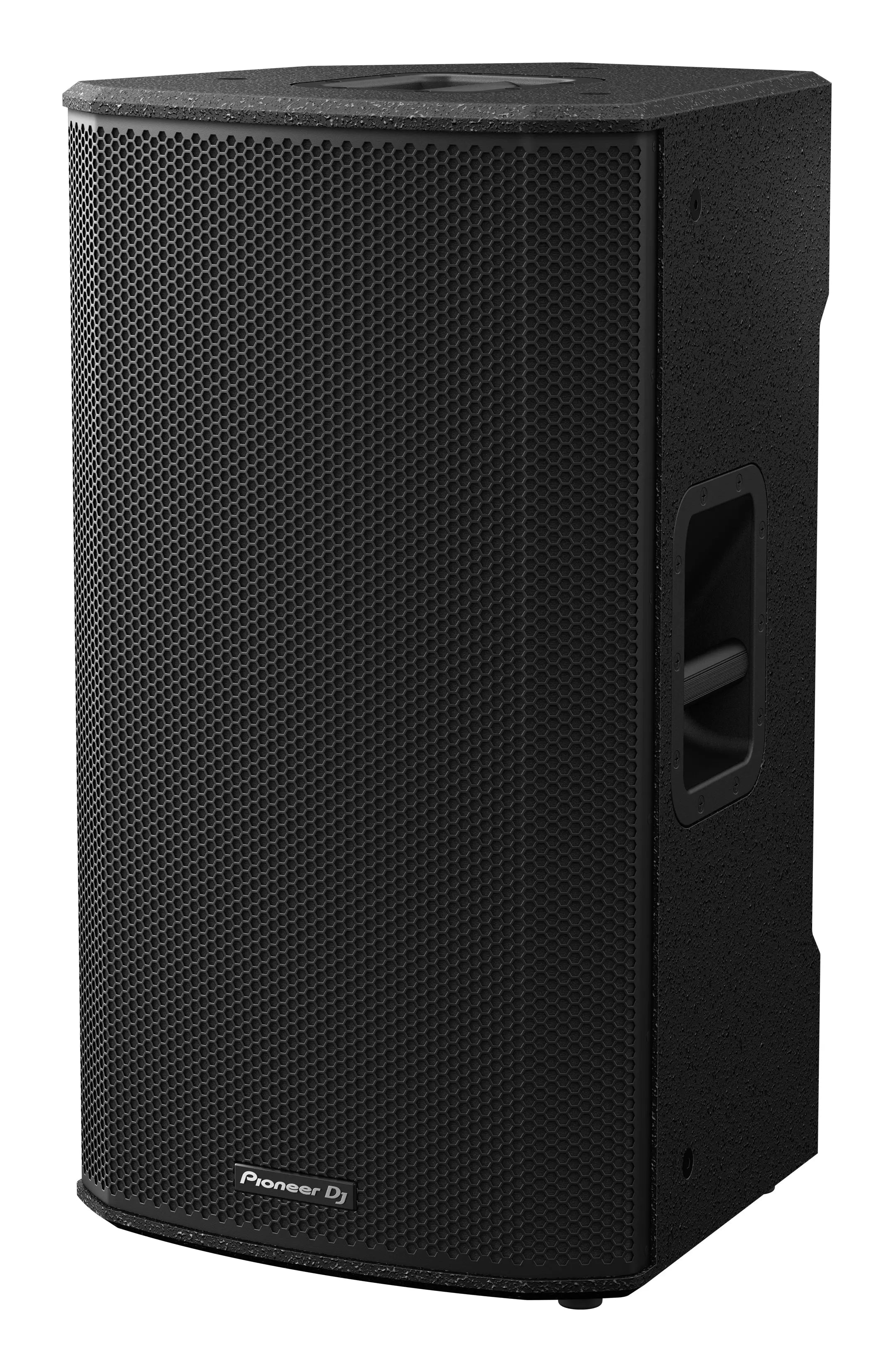

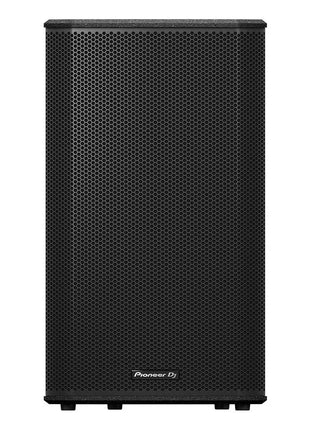

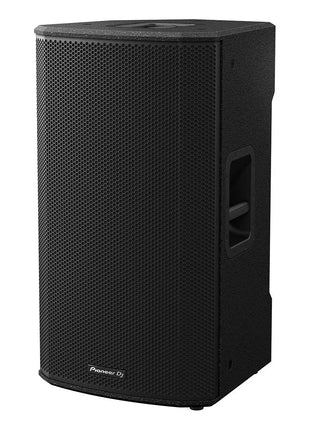

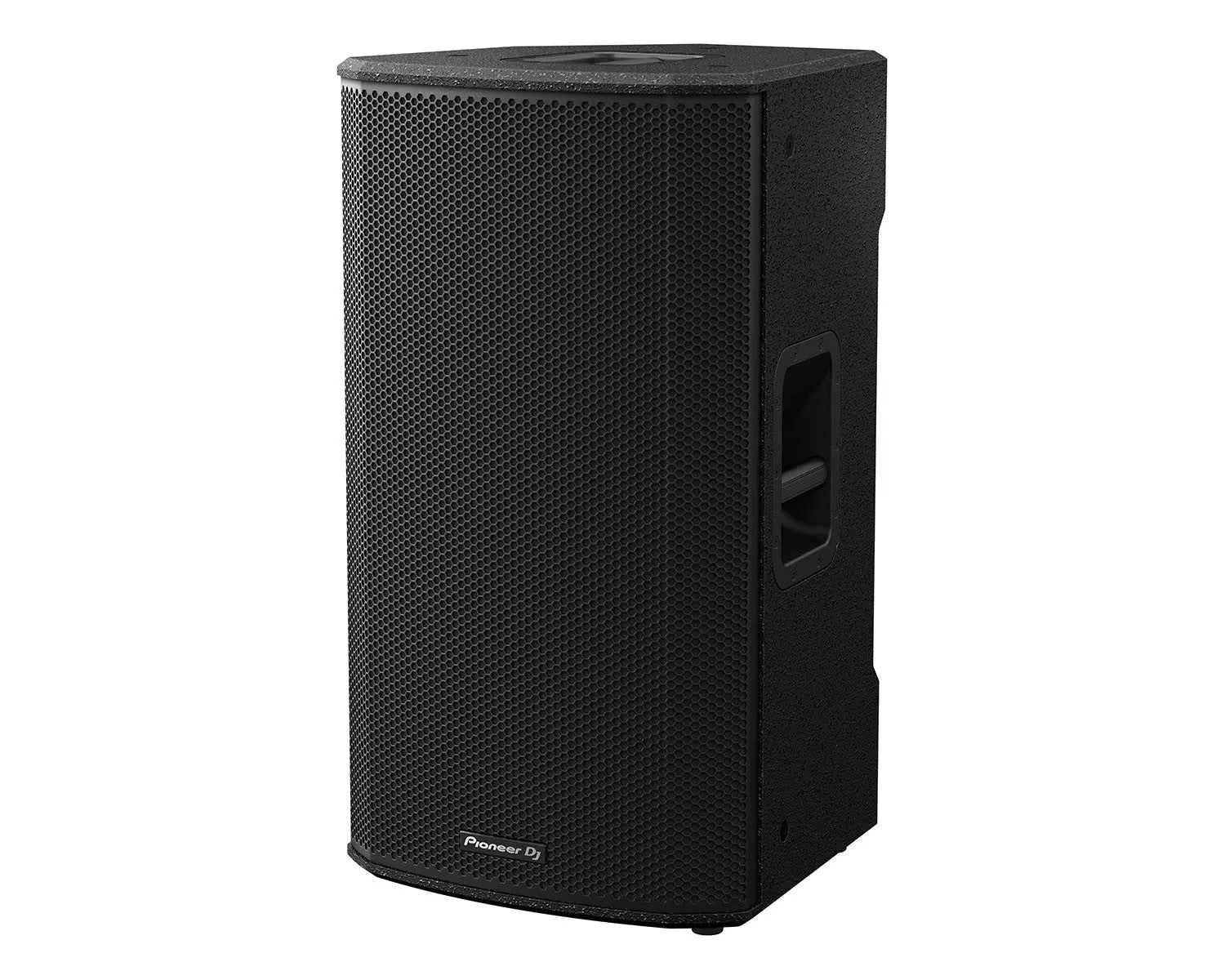

15-Inch Woofer and 1.75-Inch Compression Driver: The XPRS152 is equipped with a 15-inch ferrite low-frequency driver and a 1.75-inch titanium diaphragm compression driver. This combination delivers clear, deep bass and crisp, detailed high frequencies, ensuring balanced sound across the spectrum.
Class D Amplifier: The speaker features a highly efficient Class D amplifier with 2000W peak power (1000W continuous), providing powerful and consistent audio performance with minimal distortion, even at high volumes.
Wide Frequency Response: With a frequency range of 45Hz to 20kHz, the XPRS152 delivers a full, dynamic sound, making it ideal for a variety of music genres and live sound applications.
Advanced DSP (Digital Signal Processing): The built-in DSP allows for quick and easy optimization of the speaker’s sound output. It includes four preset EQ modes (Flat, Bass+, Speech, and Wedge), allowing users to tailor the sound for different uses such as live music, speech, or monitoring. Additionally, protection features like thermal limiting and driver protection ensure reliable performance.

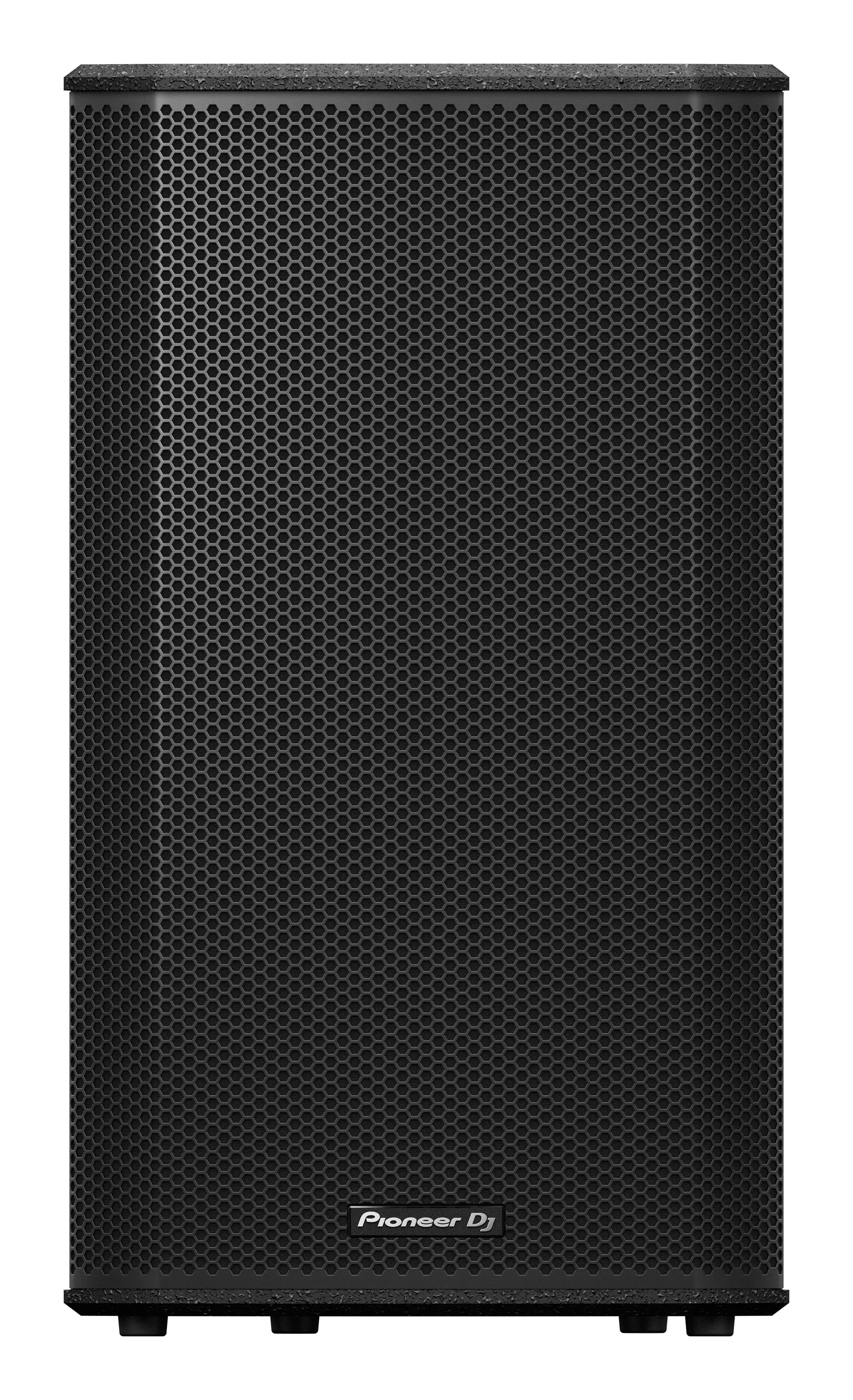

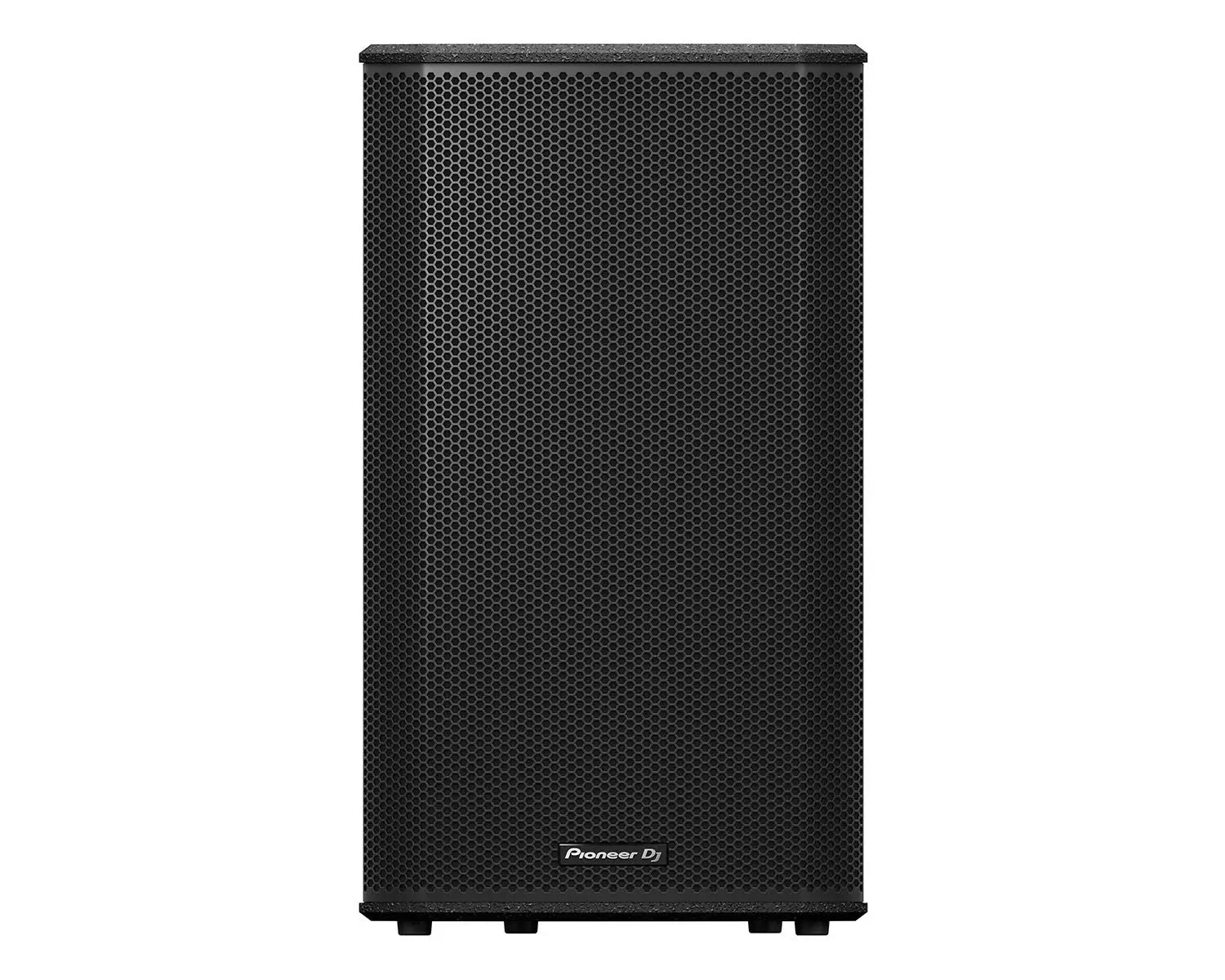

Durable Construction: Housed in a tough, 15mm birch plywood cabinet, the XPRS152 is built for durability and portability. Its road-ready design features a black, scratch-resistant finish and a steel grille to protect the drivers, making it suitable for both touring and fixed installations.

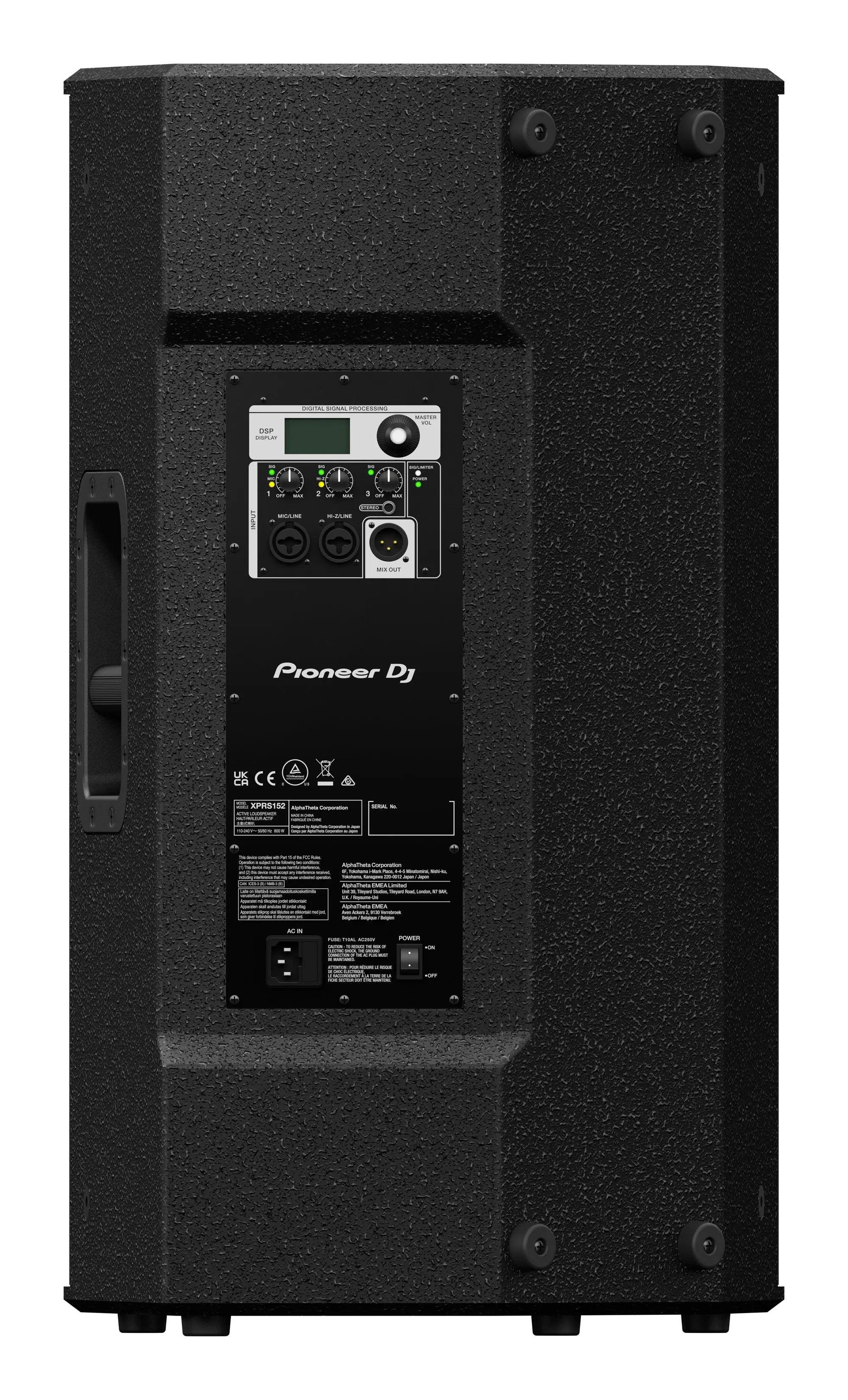

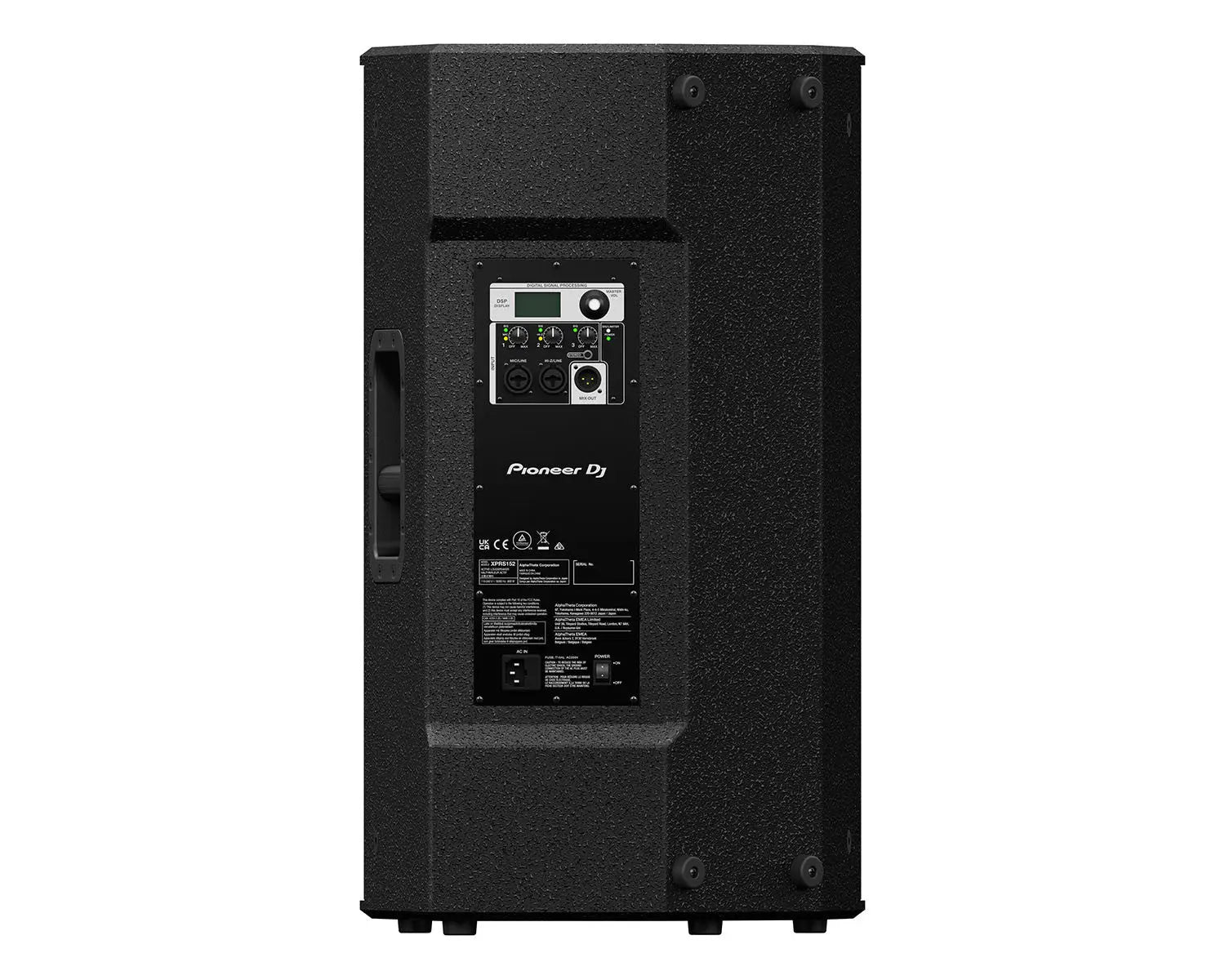

Versatile Connections: The speaker has multiple input/output options, including XLR/TRS combo jacks and an XLR output for easy daisy-chaining with other speakers. It also offers separate volume controls for each input channel, allowing flexible control over different audio sources.

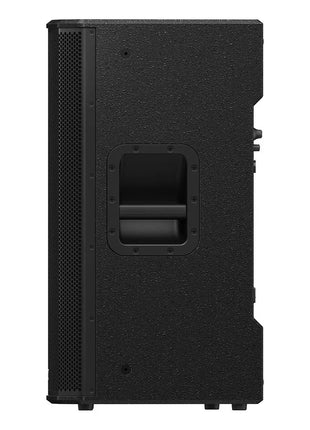

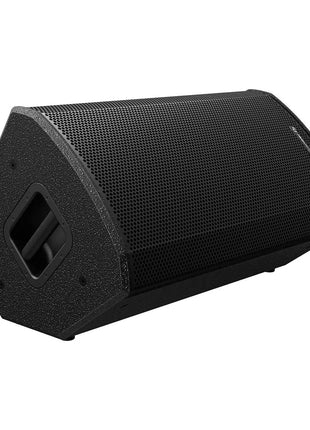

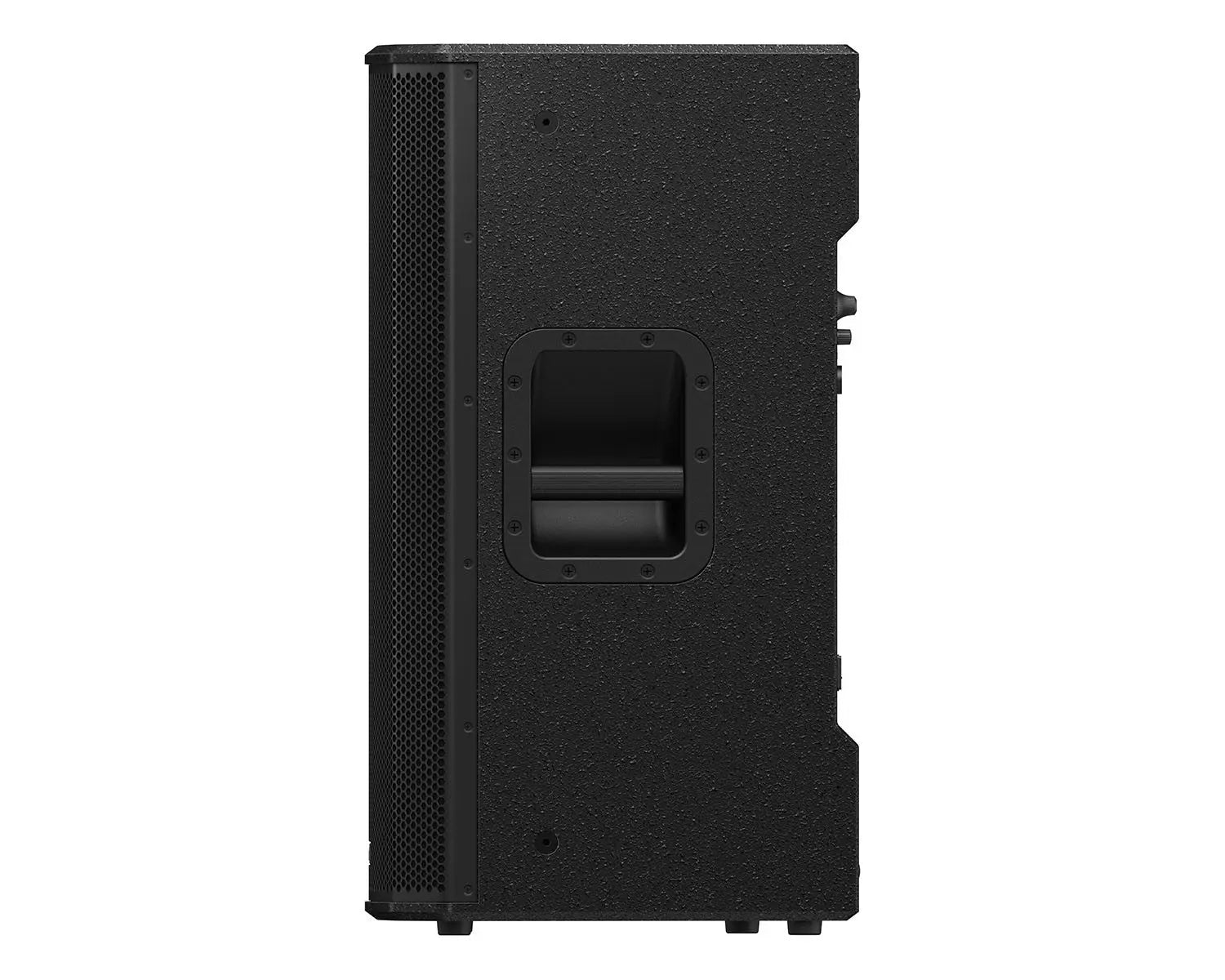

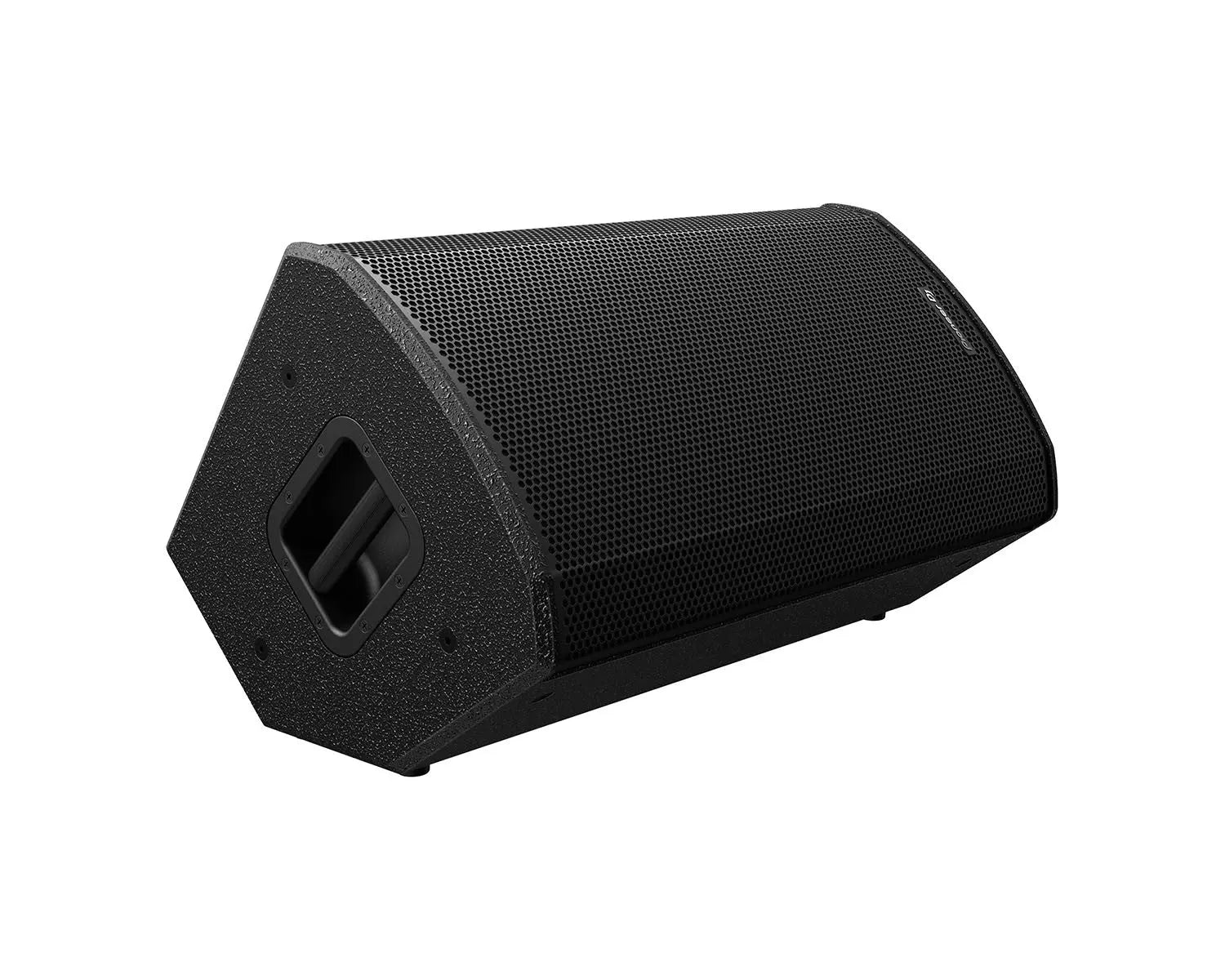

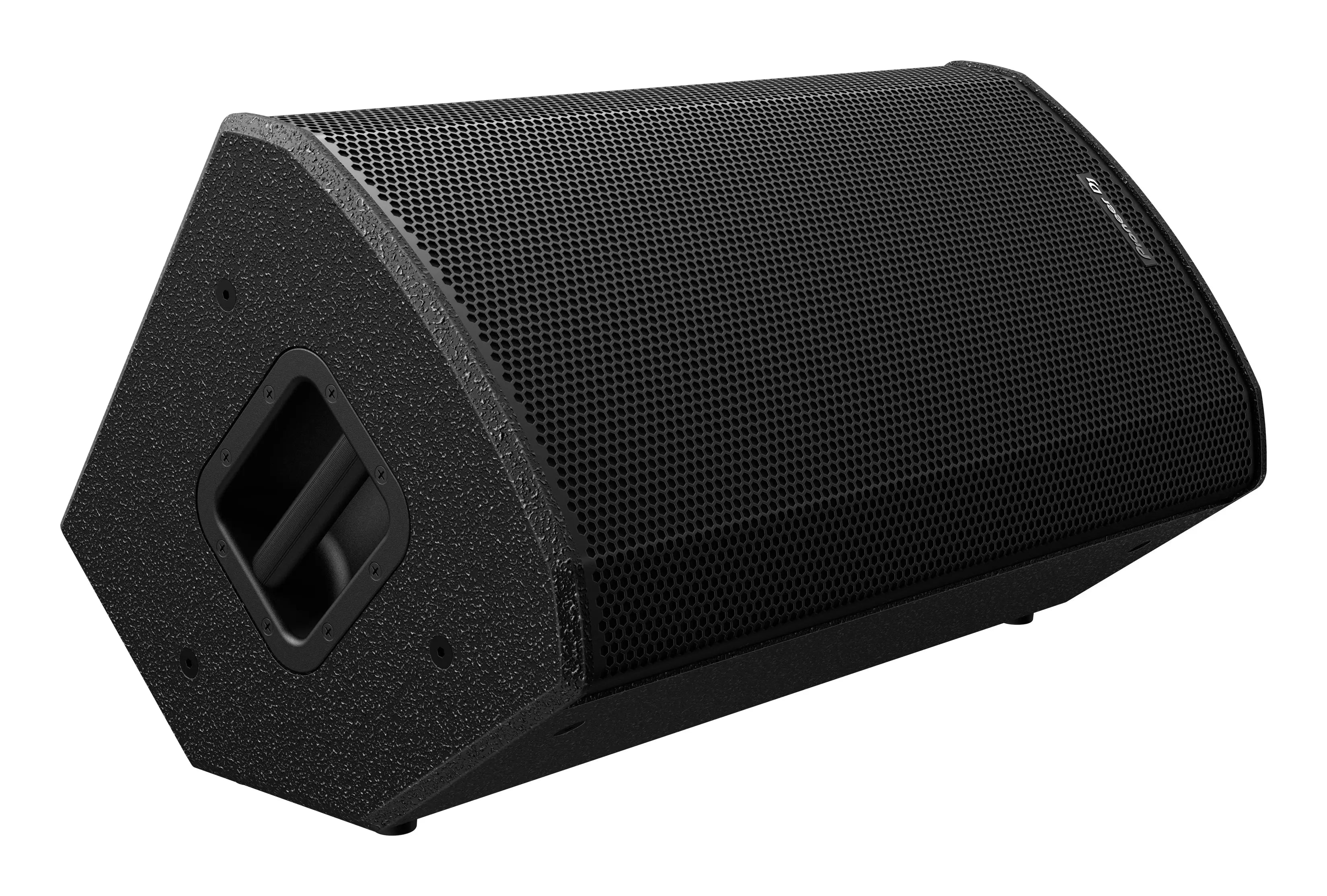

Portability and Mounting: Despite its powerful performance, the XPRS152 is relatively easy to transport, featuring rugged side handles. It can be mounted on a speaker pole or used as a floor monitor, providing flexibility for various setups.
Applications
The Pioneer XPRS152 is perfect for mobile DJs, live performers, clubs, and venues where high-quality, full-range sound is essential. It pairs well with the XPRS215 subwoofer for extended low-end response, creating a complete sound system capable of handling large spaces and diverse sound needs.
Summary:
With its powerful Class D amplifier, advanced DSP control, durable construction, and versatile input/output options, the Pioneer XPRS152 is a highly reliable and efficient speaker designed for professional audio environments. Its ability to deliver clear, dynamic sound makes it an excellent choice for various live sound applications.
Specifications
| Main Features |
| Type |
15 inch 2-way active loudspeaker |
| Amplifier Output |
Class D, 2000W peak |
| Accessories |
XPRS152 x 1 (not sold as a pair)
Power cord
Quick start guide
Important Safety Precautions |
| Specifications |
| Power Supply |
110 V to 240 V (50 Hz/60 Hz) |
| Power Consumption |
800 W |
| Dimensions |
Width: 421 mm
Height: 726 mm
Depth: 410 mm |
| Weight |
25.2 kg |
| Frequency Range |
45 - 20000 Hz |
| System Characteristics |
DSP Modes:
- Factory Presets (4 types)
- Sub Setting (High-pass frequency or matching subwoofer)
- EQ (4-band equalizer)
- User Programs (16 presets) |
| DSP Preset Modes |
- LIVE
- MUSIC
- SPEECH
- MONITOR |
| Maximum Sound Pressure |
133 dB |
| Cross Over Frequency |
2 kHz |

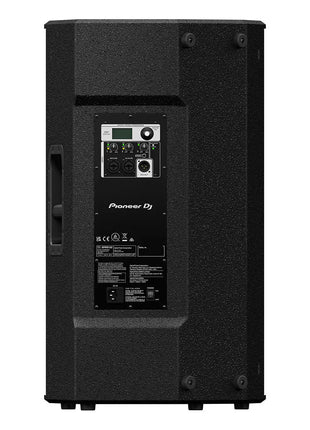

| Terminals |
| Inputs |
- MIC / LINE x 1 (Combo)
- HI-Z / LINE x 1 (Combo)
- 3.5 mm stereo mini jack x 1 (Unbalanced input) |
| Outputs |
MIX (XLR) |
| Speaker |
| Driver |
15 inch ferrite LF cone driver, 1.75 inch compression driver |
| Finish |
Black paint, Rubber feet |
| Handle |
2 metal handles (on left side and top) |
| Pole Socket |
35 mm socket |
| Rigging Point |
10x M10 |
| Enclosure |
Plywood (TSCA) |
| Protection |
| Amplifier Protection |
Thermal limiting, Digital Limiter, Digital compressor |
| Driver Protection |
Short circuit protection |
| Power Unit Protection |
- Primary AC mains overcurrent protection
- Primary AC mains overvoltage protection |
